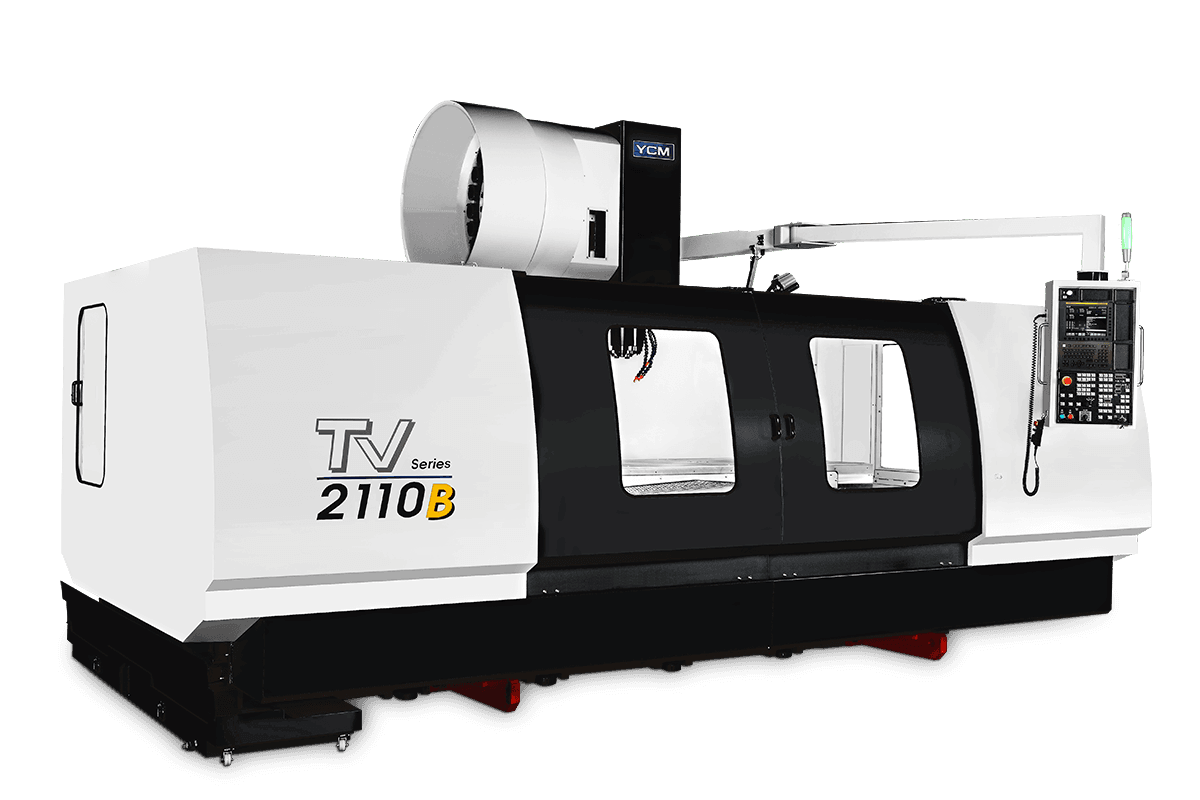

The Most Eco-friendly and Floor-saving Machine Tool of Compact Splash Enclosure & Chips Disposal System
The long travel of X-axis lies on the top of the base, where the saddle moves along the full stroke; the cross Y-axis saddle supports the work table. This design virtually saves 20% ~ 30% of floor space. The T-base rigid structure full stroke support guarantees the most dynamic accuracy.
Spindle Speed (Opt.)
6,000 (10,000) rpm
Spindle Power (Opt.)
25 ( 45 ) kW
Spindle Taper (Opt.)
BT50(BBT50)
X-axis Travel
2,100 mm
Y-axis Travel
1,020 mm
Z-axis Travel
762 mm
Distance Between Spindle Nose & Table Top
200~962(450~1,212) mm
Table Size
2,300 x 1,020 mm
No. T-slot x Size x Pitch
6 x 22 x 150 mm
Max. Load on Table
7,000 kg
X/Y/Z Rapid Feedrate
12/12/12 m/min.
Cutting Feedrate
1~5,000 mm/min.
Tool Magazine Capacity (Opt.)
24 (32/40) T
Tool Weight
20 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
24T : ø110 x 350 (ø190 x 350) 32T/40T : ø120 x 350 (ø240 x 350) mm
Machine Weight
25,500 kg
