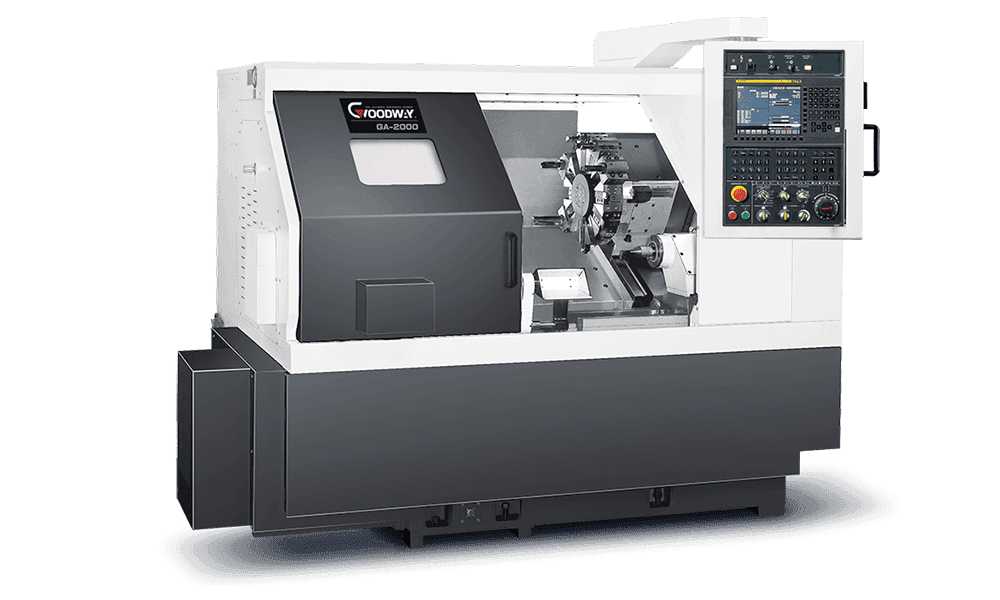

Engineered to handle heavy-duty turning applications with superb accuracy, the GA series ultra performance turning centres combine extremely powerful high torque motors, super rigid box way constructions, and large diameter servo indexing turrets to bring you The Ultimate Machining Power®. The GA series will help you be more competitive by achieving faster cycle times with heavier cuts, faster machine movements, and allow cutting of tough material efficiently. You’ll also appreciate the reliability and durability that our machines are known for. Plus, with more standard features than any other machine on the market today, many say it’s the best investment they have ever made.
Max. swing diameter
Ø 580 mm
Swing over saddle
Ø 400 mm
Max. turning diameter
Ø 350 mm
Std. turning diameter
Ø 203 mm / Ø 254 mm
Max. turning length*1
309 / 624 / 1,204 mm
Max. work piece weight*2
170 kg
Chuck size
Ø 8"
Bar capacity
Ø 51 mm
Notes
*1 GA-2000/300 / GA-2000 / GA-2000L
*2 Work-piece supported by chuck & tailstock.
Max. swing diameter
Ø 580 mm
Swing over saddle
Ø 400 mm
Max. turning diameter
Ø 350 mm
Std. turning diameter
Ø 203 mm / Ø 254 mm
Max. turning length*1
291 / 606 / 1,186 mm
Max. work piece weight*2
230 kg
Chuck size
Ø 10"
Bar capacity
Ø 65 mm
Notes
*1 GA-2000/300 / GA-2000 / GA-2000L
*2 Work-piece supported by chuck & tailstock.
Max. swing diameter
Ø 580 mm
Swing over saddle
Ø 400 mm
Max. turning diameter
Ø 350 mm
Std. turning diameter
Ø 203 mm / Ø 254 mm
Max. turning length*1
260 / 575 / 1,155 mm
Max. work piece weight*2
250 kg
Chuck size
Ø 10"
Bar capacity
Ø 75 mm
Notes
*1 GA-2000/300 / GA-2000 / GA-2000L
*2 Work-piece supported by chuck & tailstock.
