GA 3000 / 3300 / 3600 Ultra Performance Turning Centres

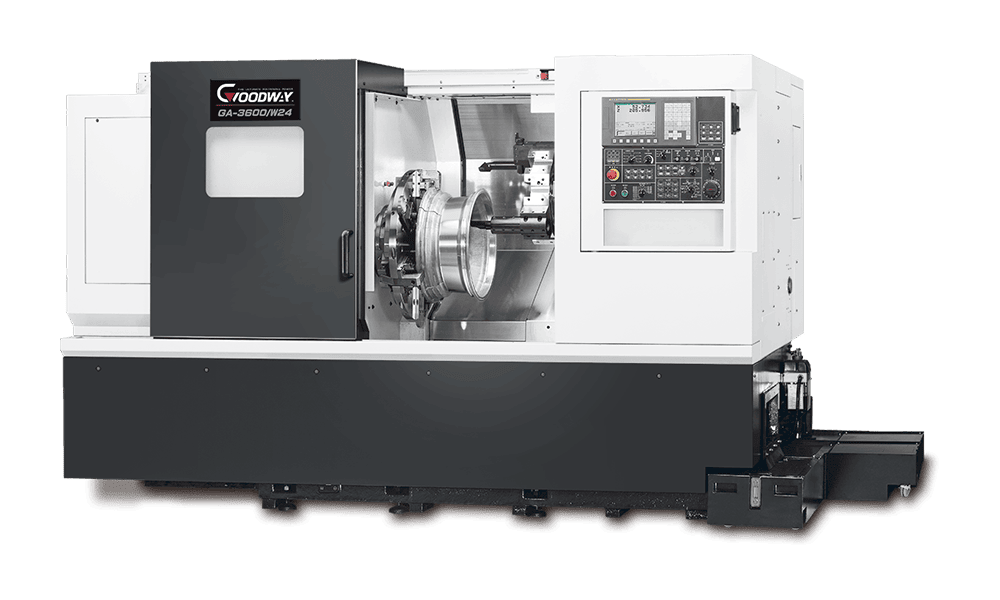

GA-3600/W24
  • Extremely powerful high-torque spindles deliver 2.5 ~ 4 times the torque output of standard spindles.
  • Extra large Z-axis servo motors provide the thrust needed to efficiently drill big diameter holes.
  • In order to endure the machine’s high outputs with durability, heavy-duty roller bearings are used to support the spindles and axes guide ways are of super-rigid one-piece box ways.
  • A total of 24 models are available in the GA Series lineup, use the chart below to pinpoint the model that best suits your applications needs.
Request a Quote

Engineered to handle heavy-duty turning applications with superb accuracy, the GA series ultra performance turning centres combine extremely powerful high torque motors, super rigid box way constructions, and large diameter servo indexing turrets to bring you The Ultimate Machining Power®. The GA series will help you be more competitive by achieving faster cycle times with heavier cuts, faster machine movements, and allow cutting of tough material efficiently. You’ll also appreciate the reliability and durability that our machines are known for. Plus, with more standard features than any other machine on the market today, many say it’s the best investment they have ever made.

Technical Data

Max. swing diameter

Ø 600 mm

Swing over saddle

Ø 500 mm

Max. turning diameter

Ø 500 mm

Standard turning diameter

Ø 225 mm

Max. turning length *4

629 / 929 / 1,229 mm

Max.work piece weight *2

340 kg

Chuck size

Ø 10" ( 12" )

Bar capacity

Ø 75 mm

Notes

*2 Work piece supported by chuck & tailstock.
*4 GA-3300 / GA-3300/900 / GA-3300L

Max. swing diameter

Ø 600 mm

Swing over saddle

Ø 500 mm

Max. turning diameter

Ø 500 mm

Standard turning diameter

Ø 225 mm

Max. turning length *4

624 / 924 / 1,224 mm

Max.work piece weight *2

340 kg

Chuck size

Ø 12" ( 15" )

Bar capacity

Ø 90 mm

Notes

*2 Work piece supported by chuck & tailstock.
*4 GA-3300 / GA-3300/900 / GA-3300L

Max. swing diameter

Ø 600 mm

Swing over saddle

Ø 500 mm

Max. turning diameter

Ø 500 mm

Standard turning diameter

Ø 225 mm

Max. turning length *4

596 / 896 / 1,196 mm

Max.work piece weight *2

340 kg

Chuck size

Ø 15"

Bar capacity

Ø 105 mm

Notes

*2 Work piece supported by chuck & tailstock.
*4 GA-3300 / GA-3300/900 / GA-3300L

Control Options

FANUC Oi -TF
