GS 3300 / 3600 Maximum Performance CNC Turning Centres

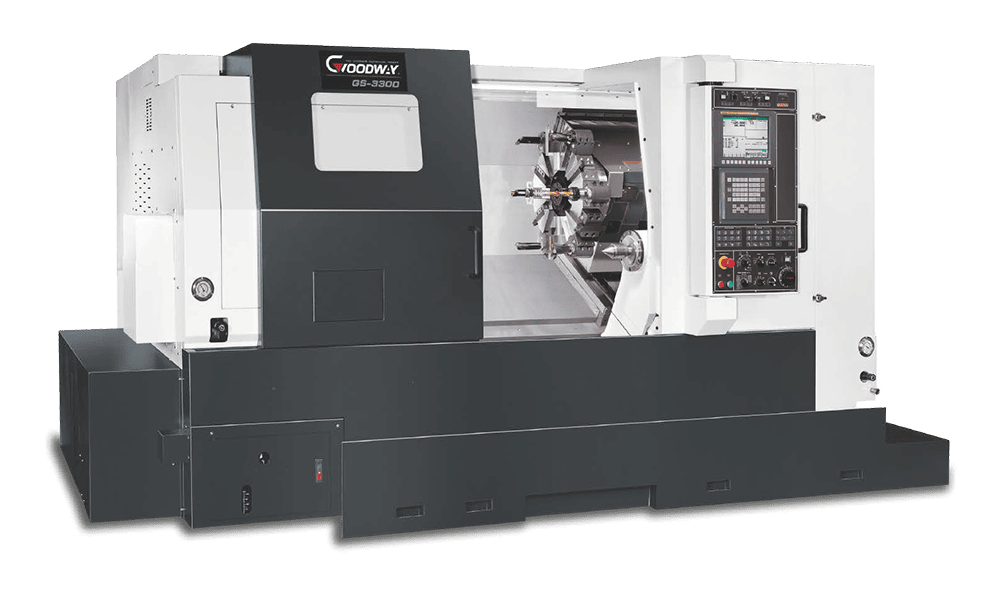

GS3300
  • The modern 30° slant-bed design ensures outstanding structural rigidity and heavy duty cutting ability.
  • All standard turrets and live tooling turrets are self-developed and assembled by Goodway which ensures high quality of the key components and allows the machine to provide optimal performance.
  • Spindle is driven by the wide-range FANUC αP series motor which can take heavier cuts in low RPM ranges.
  • Extra large Z-axis servo motors provide the thrust needed to efficiently drill big diameter holes.
  • Coolant system with roll-out coolant tank and high-pressure coolant pump.
Request a Quote

With the latest machine tools technology and powerful turning performance, GOODWAY brings you the new GS-3000 series maximum performance CNC turning centre. Using 2 different lengths of beds and 4 different sizes of bar capacities combined with a powerful spindle, high speed servo indexing turret and high rigidity structure design, the GS-3000 series becomes the best choice of machine tools for the new generation. Additionally, it can be equipped with an optional precision built-in type spindle, high torque gear type spindle, or a live tooling turret, Y-axis and sub-spindle which can accomplish mutli-tasking applications. With the perfect quality and complete tasking capabilities, the GS-3000 series can easily various needs of today and tomorrow.

Technical Data

Max. swing diameter ( door )

Ø 700 mm

Swing over saddle

Ø 800 mm

Max. turning diameter

Ø 570 mm

Std. turning diameter

Standard turret : Ø 250 / Live tooling turret : Ø 278 mm

Max. turning length*1

780 / 1,530 mm

Chuck size

12"

Bar capacity

Ø 90 mm

Notes

*1 Maximum turning length may vary, based on the chuck size chosen.

Max. swing diameter ( door )

Ø 700 mm

Swing over saddle

Ø 800 mm

Max. turning diameter

Ø 570 mm

Std. turning diameter

Standard turret : Ø 250 / Live tooling turret : Ø 278 mm

Max. turning length*1

746 / 1,496 mm

Chuck size

15"

Bar capacity

Ø 105 mm

Notes

*1 Maximum turning length may vary, based on the chuck size chosen.

GS 3000 Series Datasheet Request a Quote

Control Options

FANUC Oi -TF Plus ( Opt. 31i )
