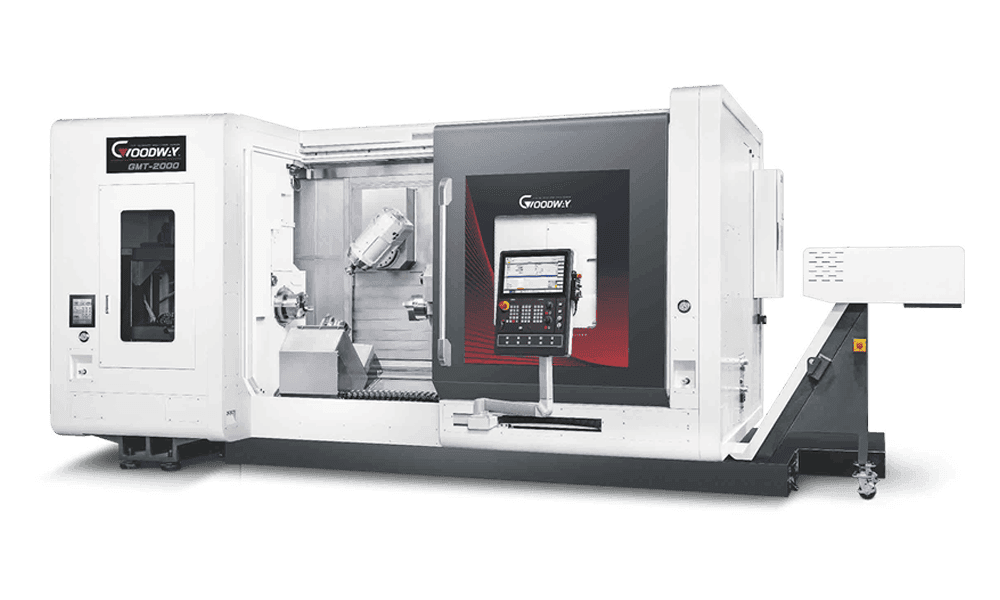

Looking for advanced processing equipment, with both high productivity and processing capacity for complex workpieces, as well as excellent cost performance. The seemingly impossible task will be fully achieved by GOODWAY GMT-2000 series.
The GMT-2000 series integrates the functional characteristics of turning centres and machining centres into one. It has the highest 9-axis control and 5-axis simultaneous machining capabilities. It can not only efficiently complete various complex shapes of workpieces, but also easily overcome the need for heavy cutting. This is a versatile model that can be used in all industries.
In addition, the optional G.LINC smart operating system and various automation equipment can further improve production efficiency, reduce manufacturing costs, and fully meet all your processing needs today and tomorrow.
Max. swing diameter
Ø 660 mm
Max. turning diameter ( Milling spindle )
Ø 660 mm
Max. turning diameter ( Lower turret )
-
Max. turning length
1,020 / 1,520 ( L1 ) / 2,520 ( L2 ) mm
Bar capacity
A : Ø 65 / B : Ø 80 / C : Ø 102 mm
Distance between spindle nose
-
Spindle center height
1,235 mm
Max. swing diameter
Ø 660 mm
Max. turning diameter ( Milling spindle )
Ø 660 mm
Max. turning diameter ( Lower turret )
-
Max. turning length
1,020 / 1,520 ( L1 ) / 2,520 ( L2 ) mm
Bar capacity
A : Ø 65 / B : Ø 80 / C : Ø 102 mm
Distance between spindle nose
1,350 / 1,850 ( L1 ) / 2,850 ( L2 ) mm
Spindle center height
1,235 mm
Max. swing diameter
Ø 660 mm
Max. turning diameter ( Milling spindle )
Ø 660 mm
Max. turning diameter ( Lower turret )
Ø 420 mm
Max. turning length
1,520 ( L1 ) / 2,520 ( L2 ) mm
Bar capacity
A : Ø 65 / B : Ø 80 / C : Ø 102 mm
Distance between spindle nose
1,850 ( L1 ) / 2,850 ( L2 ) mm
Spindle center height
1,235 mm
