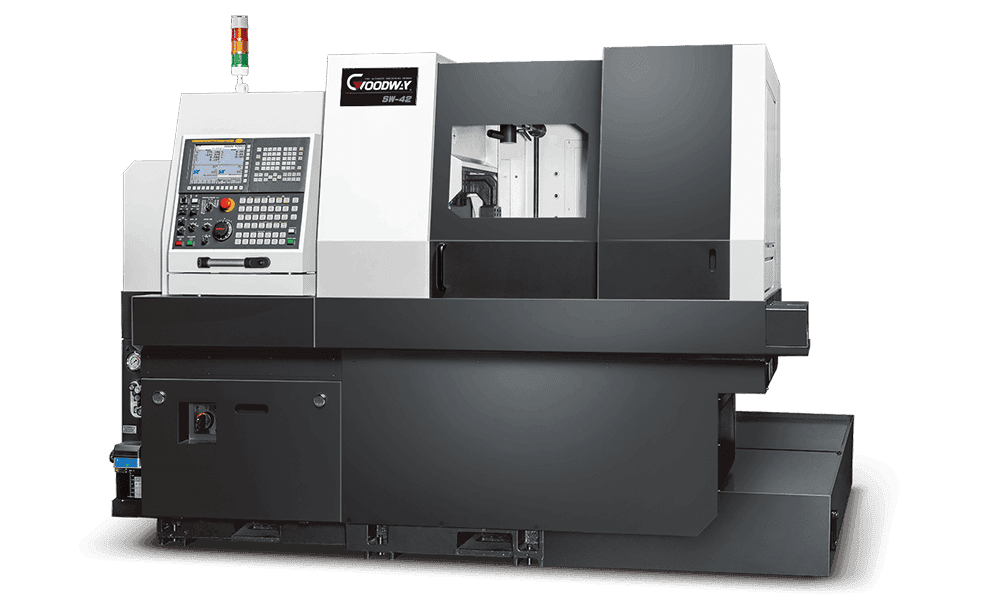

With leading technology and high quality components. GOODWAY SW series Swiss Turning Centre provides up to 9-axis control and 4-axis coordinate motion which is highly performanced by using high-speed built-in spindle (Individual models may vary), complete tooling system and flexible design of hybrid guide bush. The SW series offers turning, milling, drilling, tapping and other complicated work requirements for micro and precise parts. Due to above advantages, The SW series is excellence for automobile, electronic, clock / watch, medical industry and other related industry.
Max Machining Diameter
Ø 42 mm
Max Turning Length Per Chuck
180mm (bush) / 110 mm (bushless)
Rear-end max. length for front ejection
110 mm
Main spindle
6,000 rpm
Sub-spindle
6,000 rpm
O.D. tool
5 / 6 T ( Opt. )
I.D. tool
5 T
Cross live tools
4 ~ 10 T
Rear-end tools
4 T
Shank Size O.D. tool
20 mm / 16 mm ( Opt. )
Shank Size I.D. tool
Ø 13 mm
