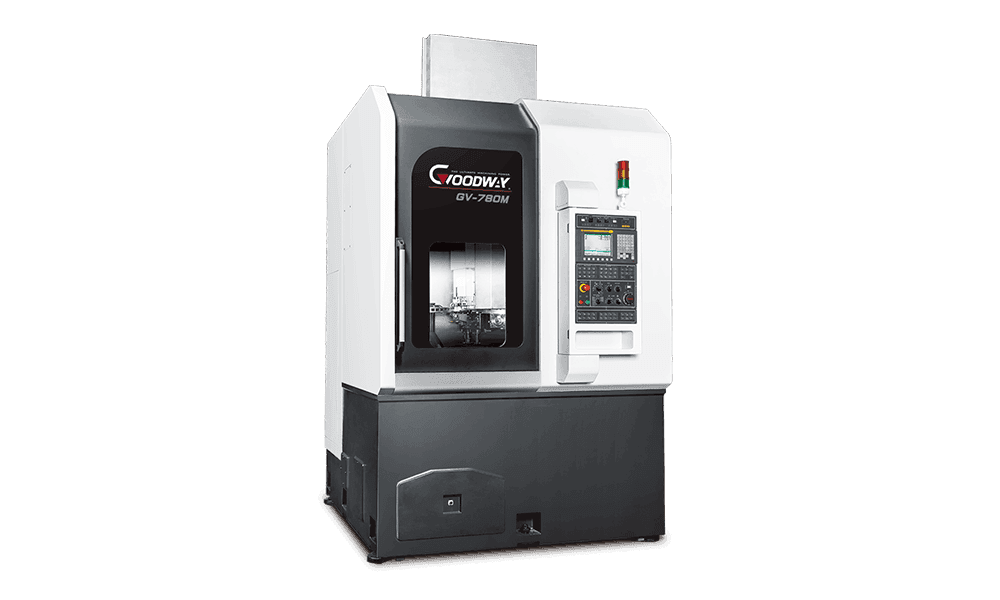

Packed with the latest machine tools technology and high precision turning capabilities, the Goodway GV-780 series ultra performance vertical CNC turning centre combines a high rigidity structure and precision linear guideways with a servo indexing turret and powerful spindle ( max. torque up to 1,050 N-m ). These series features a compact machine size with heavy duty turning capabilities. The optional live tooling turret, C-axis, dual-face turning holders and workpiece balancing analyzer allows the GV-780 series to be able to complete turning, milling, drilling, tapping, dual-face machining and workpiece balancing analyzing in one single machine.
Max. swing diameter
Ø 850 mm
Max. turning diameter
Ø 820 mm
Standard turning diameter
Ø 390 mm
Max. turning length
660 mm
Hydraulic chuck size
15" ( Opt.18" )
