Advanced

Advanced Version: Cutting-Edge High-Speed Machining

The advanced ROBODRILL 𝛼-D𝑖B ADV Plus models set a new benchmark for performance in their class, incorporating all the robust features of the standard models—plus significant enhancements. These cutting-edge vertical machining centers are engineered for long, fully automated production runs, delivering exceptional precision, repeatability, and productivity. Key upgrades include a lightning-fast 0.7-second tool change for reduced cycle times, a 4 kg tool handling capacity to accommodate multi-step tools, and a 400 mm Z-axis stroke that enables the machining of larger parts and supports 5-axis applications. Additionally, the M and L models offer a higher table payload of up to 400 kg, further expanding the range of possible machining operations.

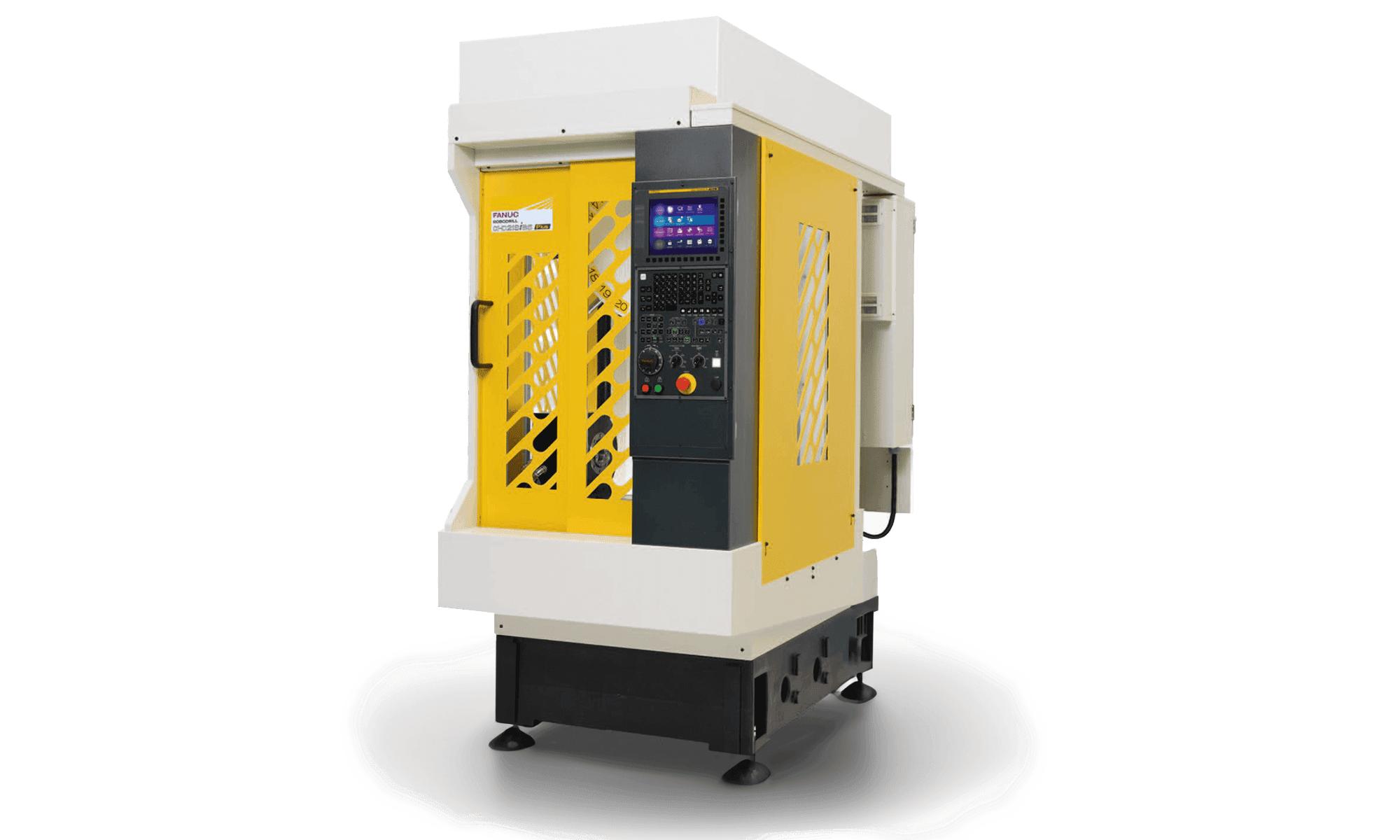

ROBODRILL 𝛼-D21S𝑖B5 ADV Plus

Table size
630x330 mm
Travel X/Y/Z
300/300(+100)/400
Max. table load
200 kg
Machine mass/with DDR-TiB
2.2/ 2.4 t
View ROBODRILL 𝛼-D21S𝑖B5 ADV Plus

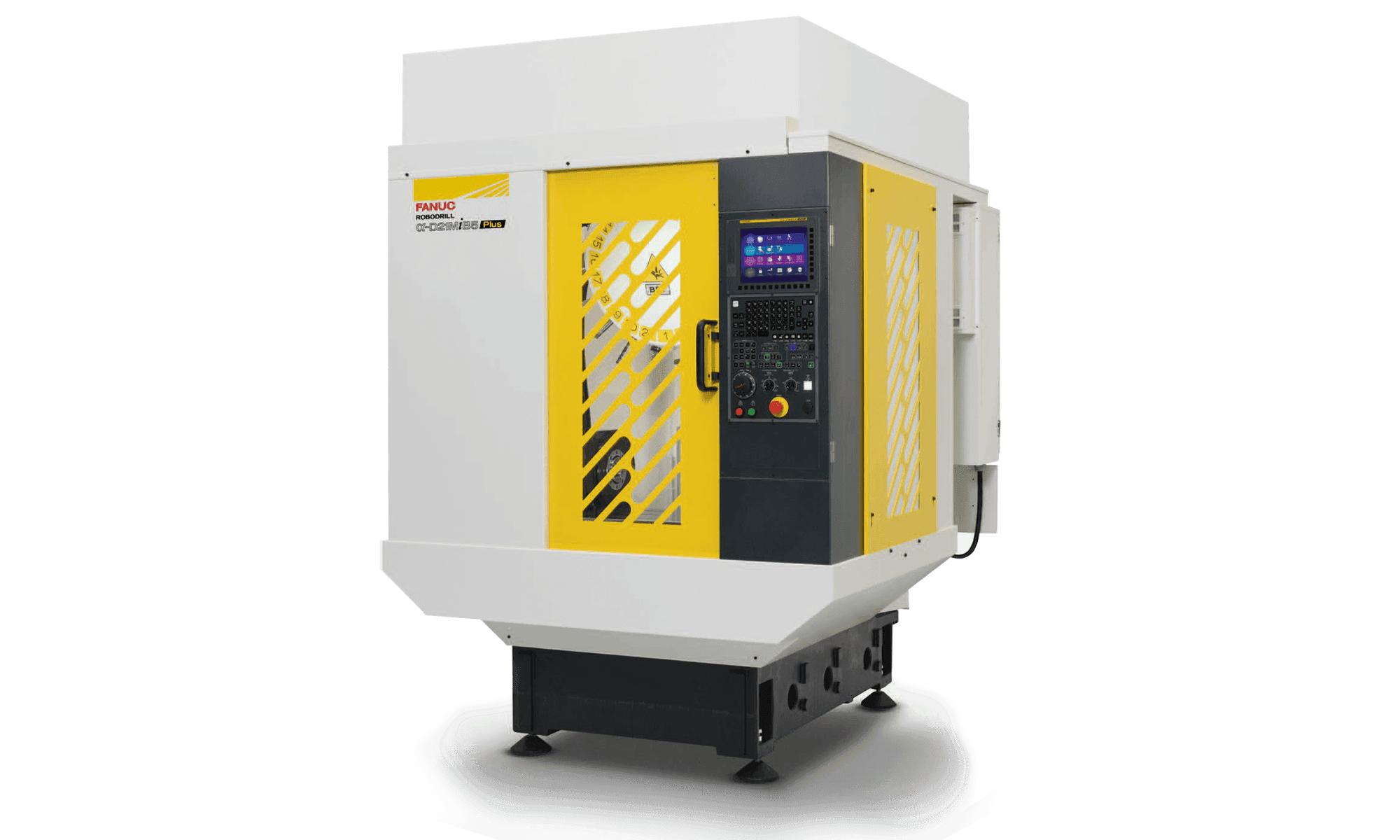

ROBODRILL 𝛼-D21M𝑖B5 ADV Plus

Table size
650x400 mm
Travel X/Y/Z
500/400/400
Max. table load
400 kg
Machine mass/with DDR-TiB
2.2/ 2.4 t
View ROBODRILL 𝛼-D21M𝑖B5 ADV Plus

ROBODRILL 𝛼-D28M𝑖B5 ADV Plus

Table size
650x400 mm
Travel X/Y/Z
500/400/400
Max. table load
400 kg
Machine mass/with DDR-TiB
2.2/ 2.4 t
View ROBODRILL 𝛼-D28M𝑖B5 ADV Plus

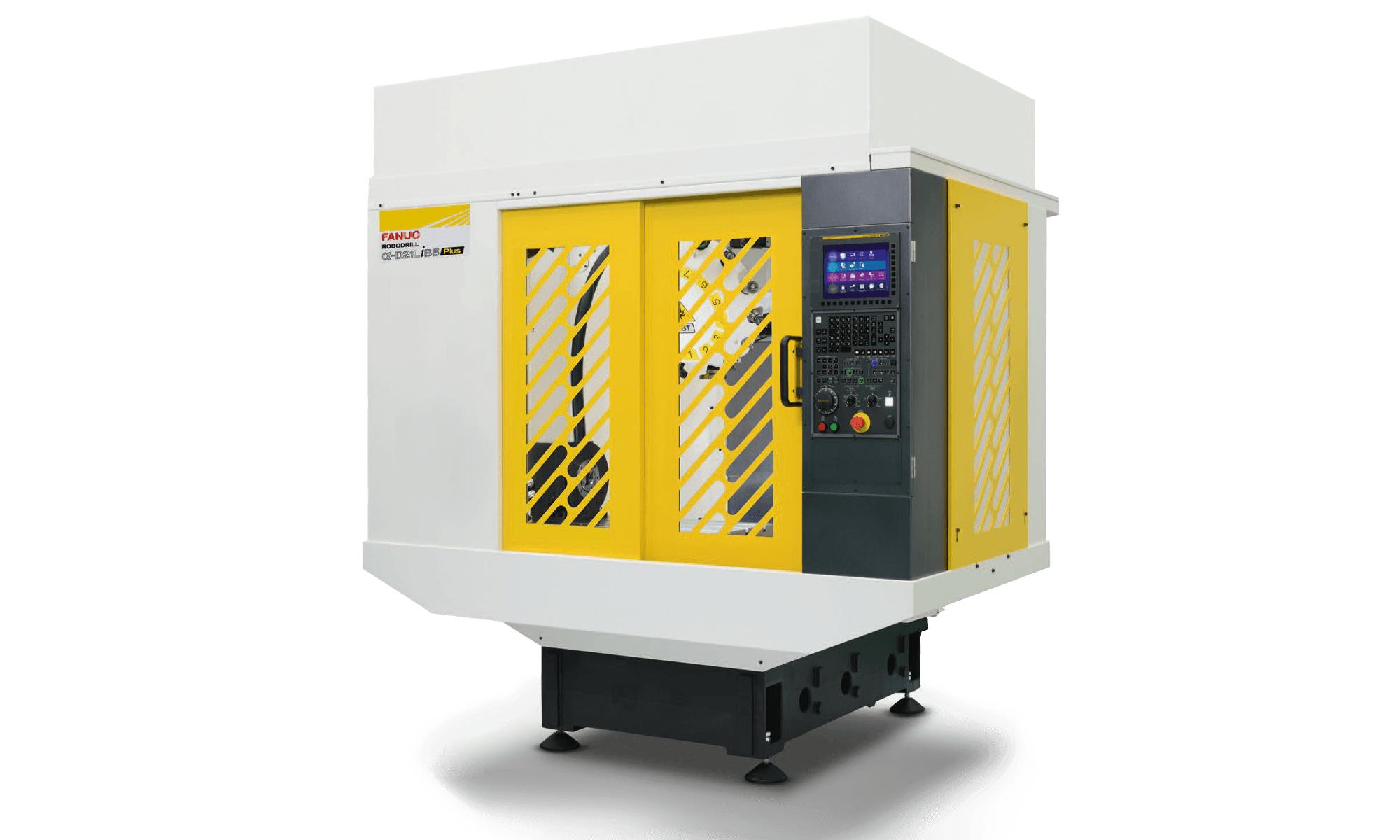

ROBODRILL 𝛼-D21L𝑖B5 ADV Plus

Table size
850x410 mm
Travel X/Y/Z
700/400/400
Max. table load
400 kg
Machine mass/with DDR-TiB
2.3/ 2.5 t
View ROBODRILL 𝛼-D21L𝑖B5 ADV Plus

ROBODRILL 𝛼-D21L𝑖B5 ADV Plus

Table size
850x500 mm
Travel X/Y/Z
700/500/400
Max. table load
400 kg
Machine mass/with DDR-TiB
2.3/ 2.5 t
View ROBODRILL 𝛼-D21L𝑖B5 ADV Plus
