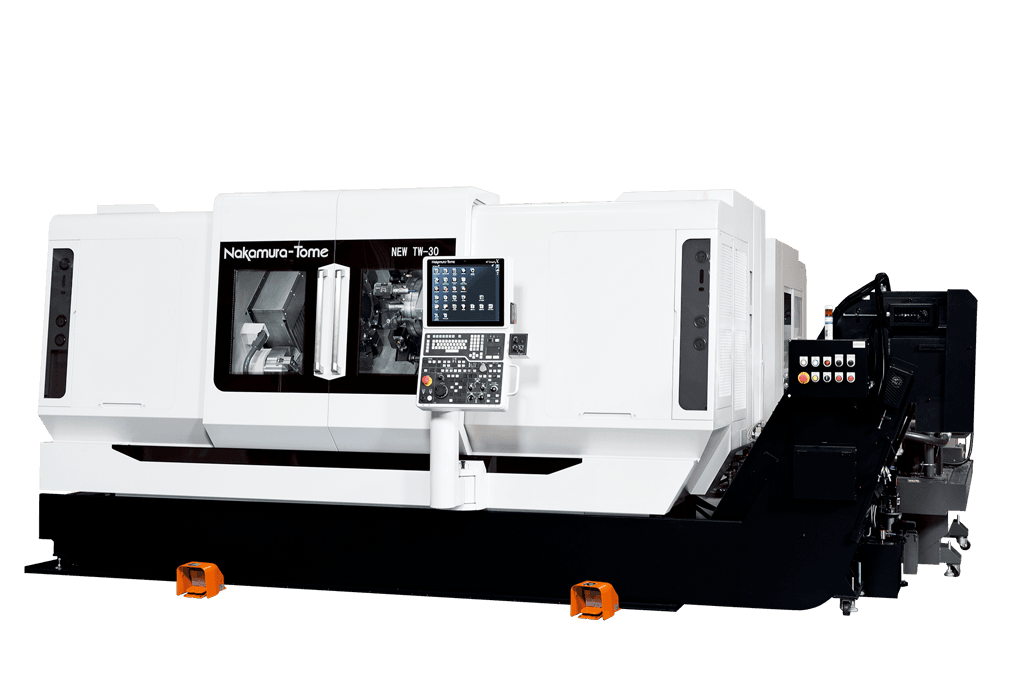

The Nakamura-Tome TW-30 is a heavy-duty two-turret turning centre designed to deliver exceptional machining performance for large and complex components. Featuring opposed twin spindles, twin turrets and simultaneous cutting capability, the TW-30 enables balanced machining between both spindles to reduce cycle times and improve productivity. With high rigidity, a large bar capacity and advanced servo-controlled spindle technology, the TW-30 provides the strength, precision and reliability required for demanding manufacturing applications.
| φ71 | |
|---|---|
| Max. Turning Diameter | 335mm |
| Max. Turning Length | 300mm |
| Distance Between Spindles | max.1,300mm / min.320mm |
| Bar Capacity | 71mm |
| Chuck Size | 10″,(12″*1),(15″*1) |
| L/R Spindle Speed | 3,500min-1 |
| L Spindle Drive Motor | 22/18.5kW |
| R Spindle Drive Motor | 22/18.5kW |
| Floor space | height:2,250mm / width:4,975mm / depth:2,606.3mm |

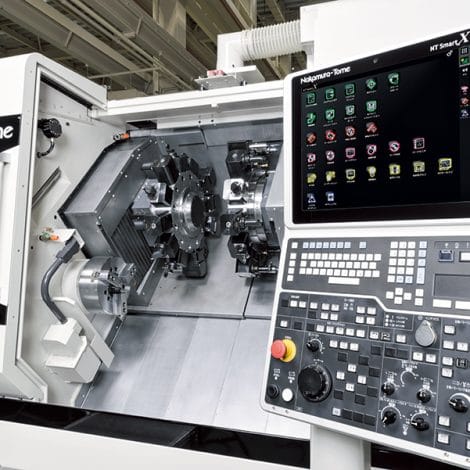

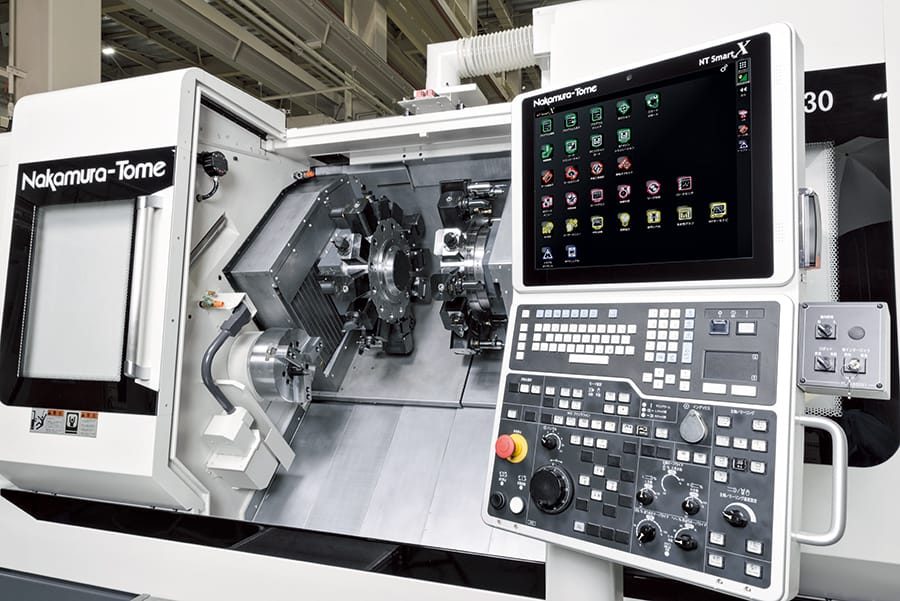

Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
