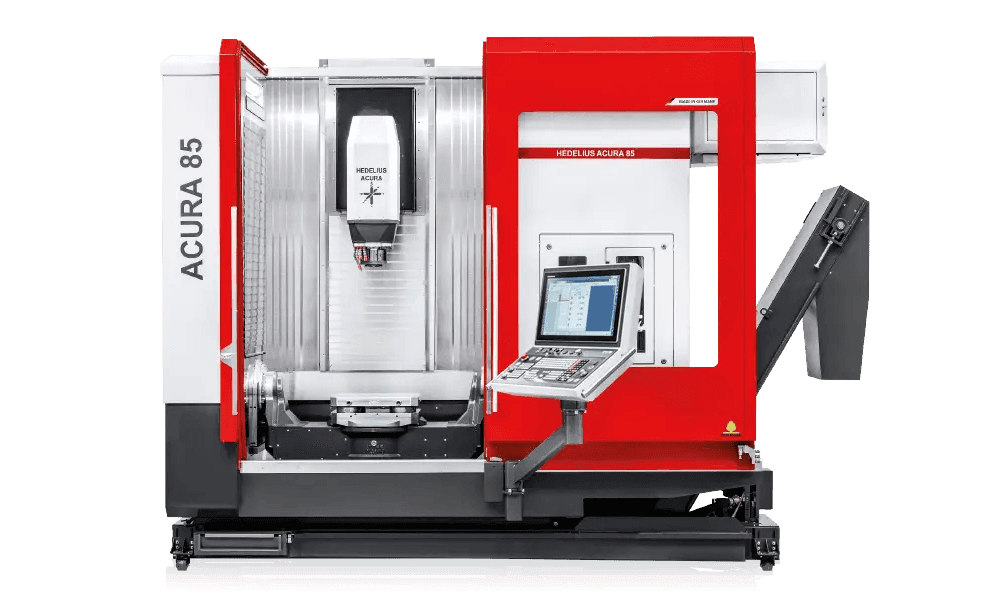

The ACURA 85 MARATHON features a built-in zero point clamping system for pallet automation, a side loading opening, and an electrical interface for communication with the HEDELIUS pallet magazine systems of the MARATHON series from the factory. The ACURA 85 MARATHON continues to be accessible from the front, even with automation, and the view from the set-up station to the work area is unobstructed. The machining centre is equipped with an 80-slot tool magazine as standard. Optionally, additional tools 264 are available through the connection of a Standby Magazin.
Interface for
MARATHON PL406 / SR518
Pallet clamping surface
400x400/400x500/500x500 mm
Pallet clamping weight
350 / 435 kg
X-, Y-, Z-travel
900 x 850/600 x 700 mm
Swivel range
+30° – -115°
Speed range
14000/15000/18000/24000
Spindle power
22.00/30.00/35.00/37.00/50.00 kW
Number of tools
80/260/344 (max.)
Tool holder
SK40 / BT40 / HSK A63
Rapid traverse
40/40/40 m/min
Feed measurement system
direct
Control
Heidenhain
Diameter interference circle
Ø 900 mm
