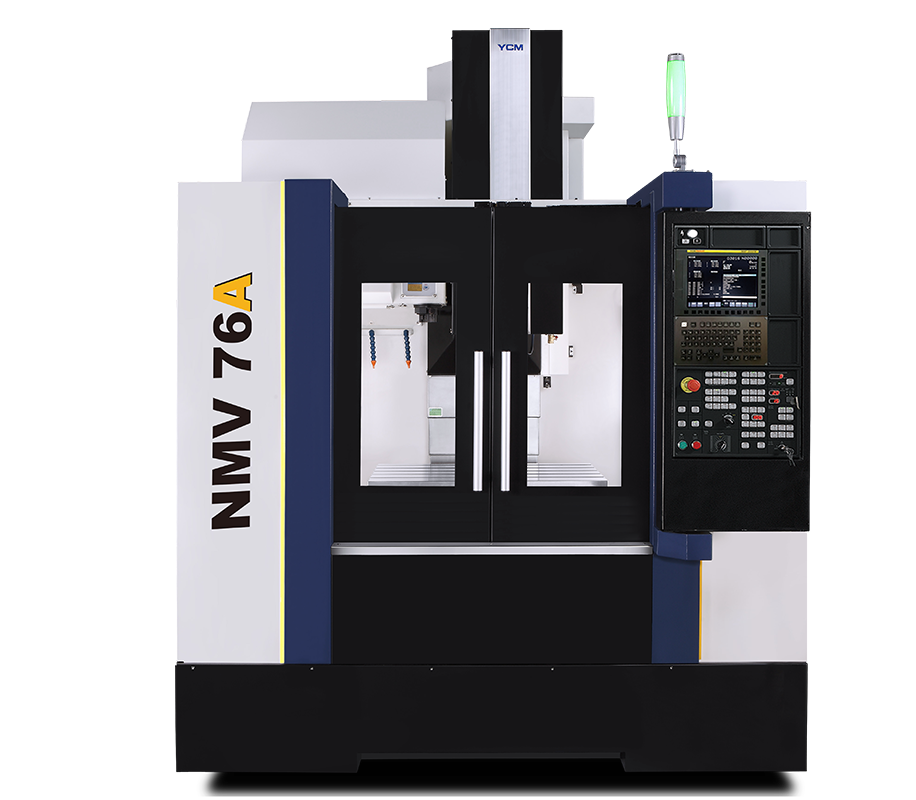

NMV76A

NMV76A
  • Adopted consistent production process, box guideway type models with high vibration absorption and wear resistance, are the best for heavy cutting.
  • With rigorous hand scrapping skills for box guideways, it ensures the best dynamic accuracy and durability.
  • The wide span 650mm Y-axis with rigid dual-wall saddle design fully supports table movement. No counter weight on Z-axis provides the utmost machining accuracy.
  • Direct-drive 12,000 rpm spindle, suitable for parts machining.
  • The optional 8,000 rpm spindle design incorporates gear transmission is capable of reaching 45.04 kgf-m torque; perfect for casting and titanium machining.
  • The optional 10,000rpm spindle combines with gear transmission for heavy cutting. Even using the small-diameter tools for high speed cutting can achieve refined machining roughness.
  • The rear chip disposal design can meet the needs of production planning.
Request a Quote

NMV Series Vertical Machining Centre is the latest developed machine for efficient production industries; widely adopted in automobile, aerospace, electronic and precision die & mold industries ; especially its large Y-axis travel design accommodates most parts applications.

Technical Data

Spindle Speed (Opt.)

12,000 (8,000 / 10,000 GEAR BOX) rpm

Spindle Power (Opt.)

18.5 (18.5/18.5) kW

Spindle Taper (Opt.)

BBT40

X-axis Travel

762 mm

Y-axis Travel

510 mm

Z-axis Travel

560 mm

Distance Between Spindle Nose & Table Top

120~680 mm

Table Size

915 x 560 mm

No. T-slot x Size x Pitch

5 x 18 x 100 mm

Max. Load on Table

500 kg

X/Y/Z Rapid Feedrate

36/36/24 m/min.

Cutting Feedrate

1~20,000 mm/min.

Tool Magazine Capacity (Opt.)

24 (30) T

Tool Weight

6 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

ø90 x 300 mm

Machine Weight

5,100 kg

NMV Series Datasheet Request a Quote
