GLS 1500 / 2000 High Speed CNC Turning Centres

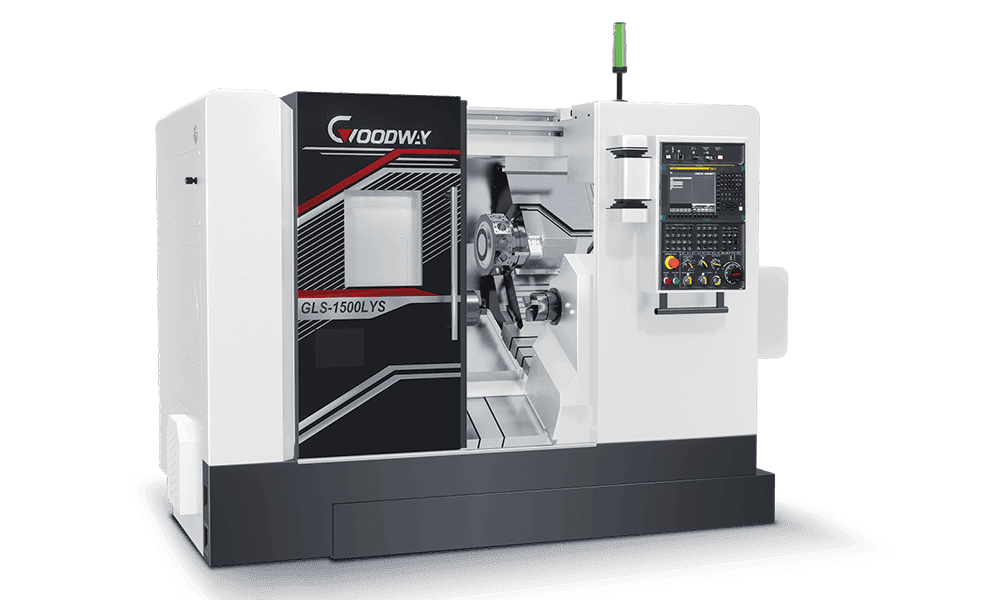

GLS-1500LYS
  • 30˚ slant-bed design provides smooth chip disposal and easier operator access.
  • Steel way covers and special steel wipers molded with industrial strength rubber are used for durability.
  • Fully enclosed splashguards keep chips and coolant contained for a safe clean working environment.
  • The auto lubrication system delivers metered amounts of lubrication to the slide ways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
  • Z-axis carriage manual locks onto the tailstock base and moves it to the desired position with precision accuracy.
  • The extension of the shaft can be controlled by program, which makes it easier to insert the centre into the center hole.
  • Large 100L separate type coolant tank provides optimal heat dispersion and lower coolant temperature, which will help extend coolant life.
  • Compact structure and cover design minimizes factory space usage which increases efficiency.
Request a Quote

With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS-1500 series high speed CNC turning centre. Using 2 types of bed combined with super rigidity, high speed turning capability and compact size provides you with super efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis and sub-spindle can work on turning, milling, drilling tasks at the same time to increase the output capacity with high end value to meet your needs of today and tomorrow.

Technical Data

Max. swing diameter

Ø 560 mm

Swing over saddle

Ø 230 mm

Max. turning diameter

Ø 390 mm

Std. turning diameter

Ø 168 mm

Max. turning length

330 / 630 mm

Chuck size

Ø 6"

Bar capacity

Ø 51 mm

Max. swing diameter

Ø 560 mm

Swing over saddle

Ø 230 mm

Max. turning diameter

Ø 390 mm

Std. turning diameter

Ø 168 mm

Max. turning length

330 / 630 mm

Chuck size

Ø 8"

Bar capacity

Ø 65 mm

GLS Series Datasheet Request a Quote

Gallery

Control Options

FANUC Oi -TF or 31i
