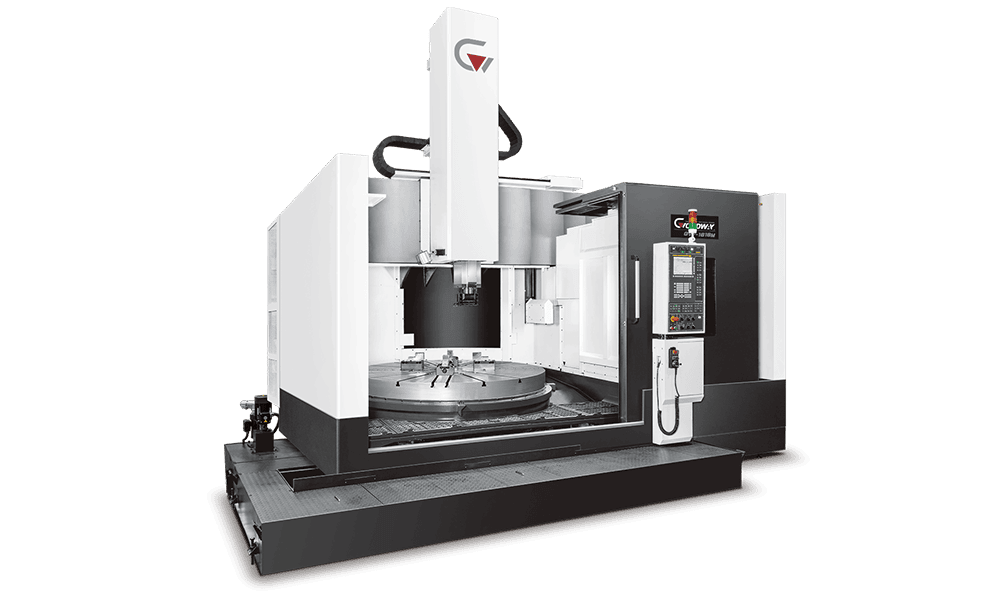

With leading technology and high quality components, the GVF series CNC vertical turning centre combines a super rigid ram structure and high torque gear type spindle design to provide you heavy cutting abilities for large sizes that are superior to competitors’ models in the aerospace and energy industry. Plus, with the optional live tooling spindle, Cf-axis control, and multi-purpose milling heads, turning, milling and drilling applications may be completed for both end surface and cylindrical surface to accomplish demanding turning applications of today and tomorrow.
Table diameter
Ø 1,100 mm
Max. swing diameter
Ø 1,400 mm
Max. turning diameter
Ø 1,200 mm
Max. turning height
900 mm
Max. table load
4,000 kg
Table diameter
Ø 1,250 mm
Max. swing diameter
Ø 1,450 mm
Max. turning diameter
Ø 1,400 mm
Max. turning height
900 mm
Max. table load
3,700 kg
Table diameter
Ø 1,250 mm
Max. swing diameter
Ø 1,600 mm
Max. turning diameter
Ø 1,500 mm
Max. turning height
900 mm
Max. table load
5,000 kg
Table diameter
Ø 1,600 mm
Max. swing diameter
Ø 2,000 mm
Max. turning diameter
Ø 1,800 mm
Max. turning height
900 mm
Max. table load
8,000 kg
Table diameter
Ø 2,000 mm
Max. swing diameter
Ø 2,350 mm
Max. turning diameter
Ø 2,300 mm
Max. turning height
900 mm
Max. table load
5,000 kg ( Opt. 8,000 kg )
