Talent 51 Exceptional combination of features for accuracy, flexibility and durability

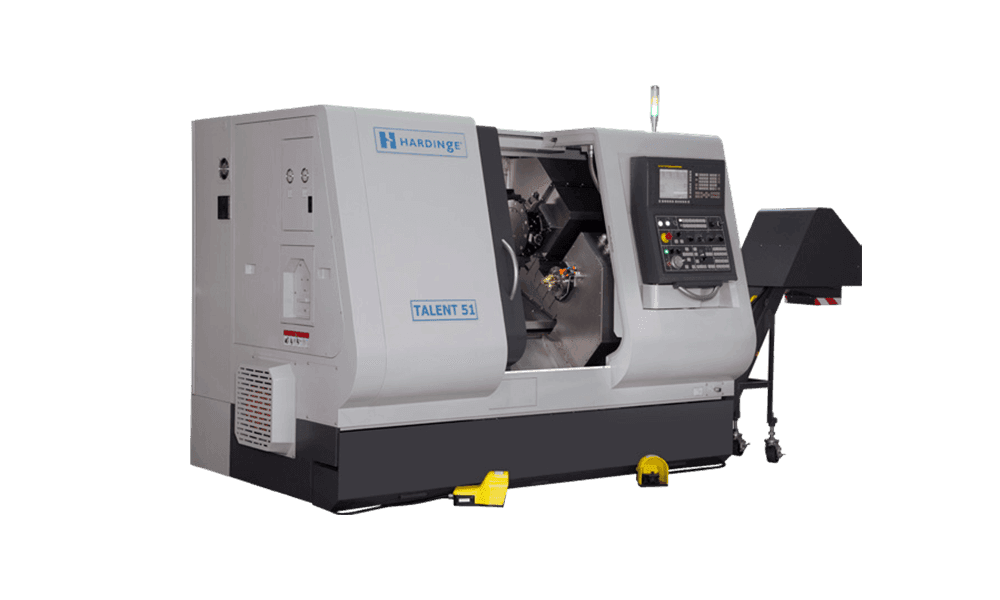

Talent 51
  • A2-6 20C CFS collet-ready spindle
  • BMT 45 live tooling 12-station with 1⁄2 Index capability
  • Central grease lubrication (manual)
  • Foot switch main spindle chuck/collet – open/close
  • Foot switch sub-spindle chuck/collet – open/close
  • Three colour stack light
  • Headwall coolant (main & sub-spindle)
  • Bar feed interface
  • Chip conveyor interface
Request a Quote

The Hardinge TALENT® Series machines offer an exceptional combination of features for accuracy, flexibility and durability in a compact design.The unique collet-ready main and sub-spindle design will increase part accuracy and improve surface finish. The TALENT® Series offers two separate base structures, short bed and standard bed lengths, which feature a robust one-piece cast iron base, heavy duty roller linear guideways and ballscrews, with many standard value-added features – thru-tool and headwall coolant, foot switches, chip conveyor interface, and external air hose and gun. The machine features the FANUC OiTF control which include many value added features.

Technical Data

Spindle Nose

CFS/A2-6 / 20C

Power Rating

11 kW

Spindle Speed (max)

5000 rpm

Through Hole Diameter

51mm

Max. Turning Diameter

290mm (12-station) / 240mm (16-station)

Max. Turning Length

334.5mm (without chuck) / 206.3mm (with chuck)

Approx. Machine Weight

4900 kg

Machine Dimensions (L x D x H)

2567mm x 1814mm x 1932mm

Spindle Nose

CFS/A2-6 / 20C

Power Rating

11 kW

Spindle Speed (max)

5000 rpm

Through Hole Diameter

51mm

Max. Turning Diameter

290mm (12-station) / 240mm (16-station)

Max. Turning Length

594.5mm (without chuck) / 466.2mm (with chuck)

Approx. Machine Weight

5800 kg

Machine Dimensions (L x D x H)

2914mm x 1834mm x 1932mm
