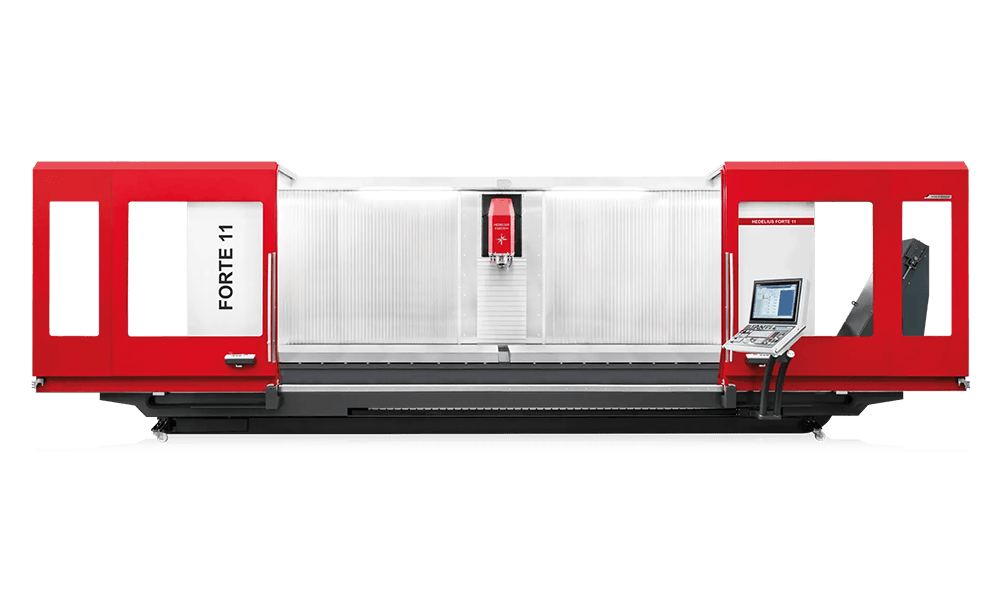

FORTE 11-4600 Precision and performance on a large scale

F11 4600
  • Large Y travel length of 1,100 mm
  • Fully enclosed working space
  • Direct measurement systems
  • Powerful, liquid-cooled motor milling spindle up to 50 kW
  • Main spindles with SK40 or HSK A63 uptake if required
  • High table load thanks to fixed machine bench
  • Travelling 65-slot magazine
  • Motor-operated automatic doors for high ease of use
Request a Quote

Despite a travel of 4600 mm, the FORTE 11-4600 tool can be changed within a few seconds. The large 65-fold tool magazine also reduces your set-up times as standard. Perfectly designed workspaces with vertical slat coverings and good accessibility to the workspace provide the finishing touch to the overall concept of this 3-axis machining centre.

Technical Data

X-, Y-, Z-travel

4600 x 1100 x 1005 mm

Speed range

14000/15000/18000

Spindle power

22.00/35.00/37.00/50.00 kW

Number of tools

65/245/329 (max.)

Tool holder

SK40 / BT40 / HSK A63

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain / Sinumerik

Total clamping surface

5080 x 1100 mm

Fixed table load

6000 kg

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

Control Options

Heidenhain
Sinumerik
