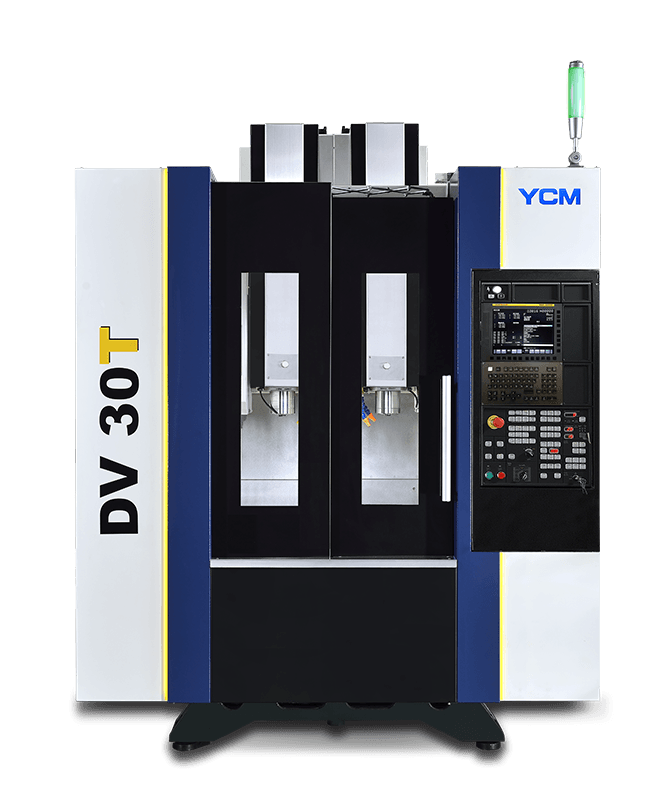

The dual spindle, dual Z axis of the DV30T can work simultaneously and also can be controlled independently with individual tool measurement and compensation. Compared to machining centres with the same area, the DV30T enhances productivity up to 60%, substantially reduces the investment cost, while optimising productivity to a whole new level. The massiveness and rapidness machining capability of the DV30T provides the electronic industries with great competitiveness.
Spindle Speed (Opt.)
20,000 (24,000 / 30,000) rpm
Spindle Power (Opt.)
3.7(3.7/7.5) kW
Spindle Taper (Opt.)
BT30 (BT30 / BBT30)
X-axis Travel
300 mm
Y-axis Travel
350 mm
Z-axis Travel
320 mm
Distance Between Spindle Nose & Table Top
190~510 mm
Table Size
780 x 400 mm
No. T-slot x Size x Pitch
3 x 14 x 100 mm
Max. Load on Table
250 kg
X/Y/Z Rapid Feedrate
48/48/48 m/min.
Cutting Feedrate
1~20,000 mm/min.
Tool Magazine Capacity (Opt.)
16 (20) T
Tool Weight
3 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø40 x 120 mm
Machine Weight
3,700 kg
