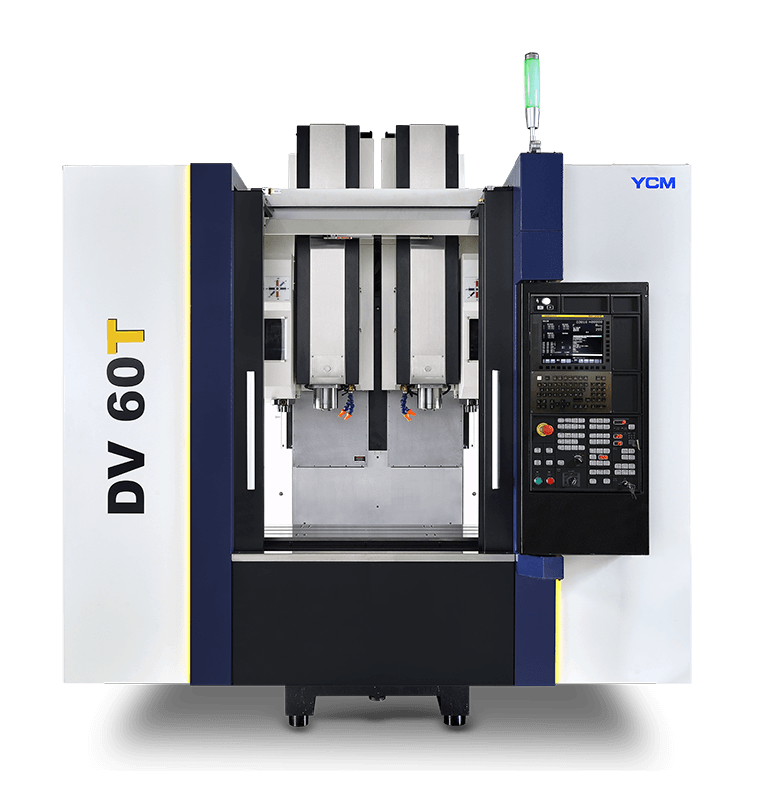

DV60T High Efficiency Dual Spindle Machining Centre

DV60T
  • High precision ceramic ball bearing with low centrifugal force, low vibration and very little heat growth, to assure the optimal cutting performance under high speed machining.
  • Reliable helical disc spring design prolongs the spindle life.
  • Simultaneous tool change with IDD spindle, T-T: 1.1 sec. only
  • High precision, high production with minimum floor space realizes tremendous cost-down.
  • With more than 60% production capacity compared to tapping machine with the same size.
  • Optional rotary table for multi-face milling, drilling, and tapping Works
Request a Quote

Technical Data

Spindle Speed (Opt.)

20,000(20,000/30,000) rpm

Spindle Power (Opt.)

9(9/7.5) kW

Spindle Taper (Opt.)

BT30 (BT30 / BBT30)

X-axis Travel

600 mm

Y-axis Travel

350 mm

Z-axis Travel

320 mm

Distance Between Spindle Nose & Table Top

280~600 mm

Table Size

1,300 x 400 mm

No. T-slot x Size x Pitch

3 x 14 x 100 mm

Max. Load on Table

250 kg

X/Y/Z Rapid Feedrate

48/48/48 m/min.

Cutting Feedrate

1~20,000 mm/min.

Tool Magazine Capacity (Opt.)

16(20) T

Tool Weight

3 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

ø40 x 120 mm

Machine Weight

4,000 kg

Request a Quote
