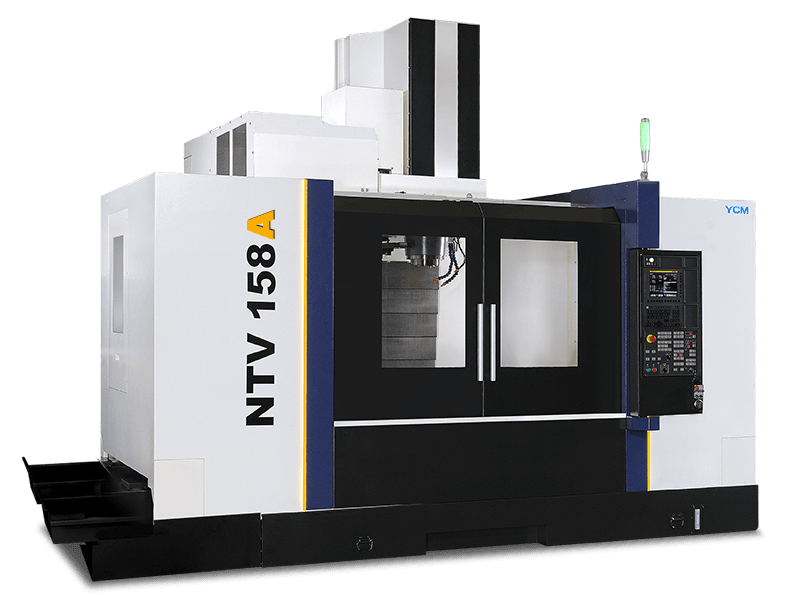

NTV158A High Efficiency T-base Vertical Machining Centre

NTV158A
  • With the unique T-base structure, the machine footprint can be reduced effectively
  • Overhang-free table movement is supported by high-rigidity base to ensure the best dynamic accuracy.
  • YCM's uniquely designed IDD Spindle ensures direct transmission and is proven to maximize both spindle and tool life under harsh working environment.
  • The cooling system for spindle motor seat and spindle makes real time control of spindle temperature.
  • All axes are equipped with roller type linear guideways to ensure higher dynamic accuracy, durability and rigidity.
  • Preload high precision ball screws are directly driven by servo motor will efficiently eliminate axial backlash and vibrations.
  • The casting rigidity is enhanced through FEM analysis.
  • Roller type guideways provides low friction which reduces energy waste.
Request a Quote

NTV 158A offers a high rapid feedrate with large Y-axis which provides mold maker and job shop an excellent machine selection

Technical Data

Spindle Speed (Opt.)

12,000 (15,000) rpm

Spindle Power (Opt.)

22 (22) kW

Spindle Taper (Opt.)

BBT40 (BBT40)

X-axis Travel

1,530 mm

Y-axis Travel

762 mm

Z-axis Travel

700 mm

Distance Between Spindle Nose & Table Top

150~850(400~1100) mm

Table Size

1,650 x 760 mm

No. T-slot x Size x Pitch

5 x 22 x 150 mm

Max. Load on Table

2,000 kg

X/Y/Z Rapid Feedrate

30/30/24 m/min.

Cutting Feedrate

1~10,000 mm/min.

Tool Magazine Capacity (Opt.)

24 (30/40) T

Tool Weight

6 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

24T : ø90 x 300 (ø140 x 300) 30T/40T : ø76 x 300 (ø125 x 300) mm

Machine Weight

14,170 kg

View NTV158A Datasheet Request a Quote
