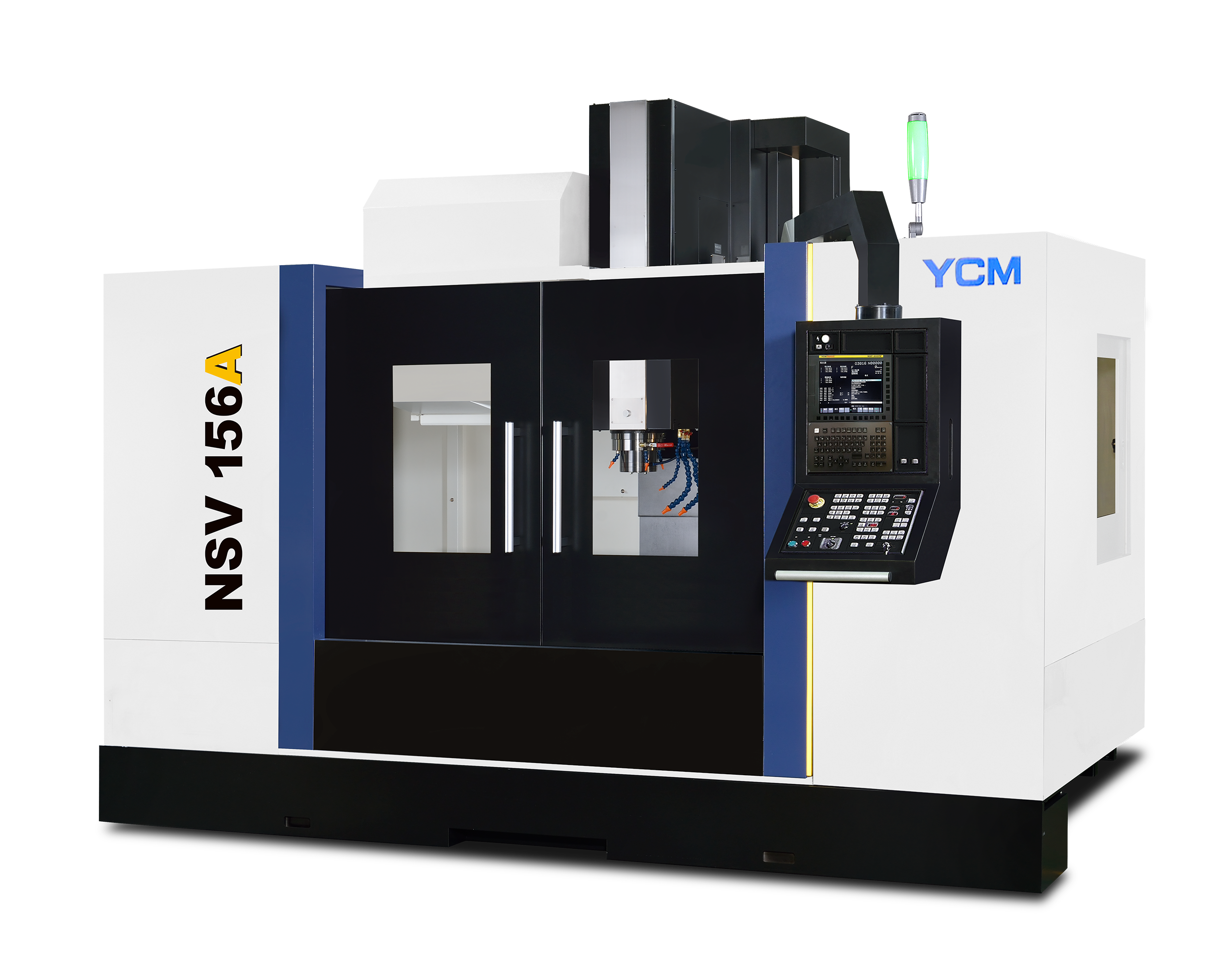

NSV 156A vertical machining centre is specially designed for high speed and high efficiency machining applications. NSV 156A is built with a large delta machine column and wide base to ensure the highest stability during high speed movement.
Spindle Speed (Opt.)
12,000 (15,000/ 12,000)
Spindle Power (Opt.)
25 (37/48)
Spindle Taper (Opt.)
BBT40
X-axis Travel
1,530 mm
Y-axis Travel
650 mm
Z-axis Travel
610 mm
Distance Between Spindle Nose & Table Top
80~690(330~940) mm

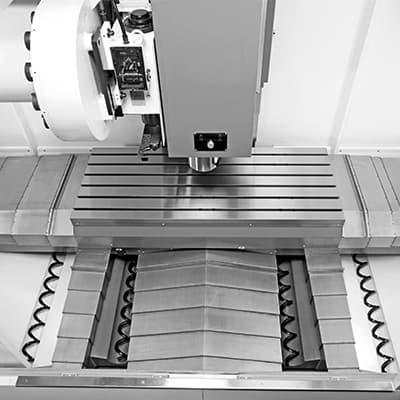

Table Size
1,630 x 650 mm
No. T-slot x Size x Pitch
6 x 18 x 100 mm
Max. Load on Table
1,500 kg
X/Y/Z Rapid Feedrate
48 / 48 / 48 m/min.
Cutting Feedrate
1~20,000 mm/min.
Tool Magazine Capacity (Opt.)
30 T
Tool Weight
6 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø76 x 300 (ø125 x 300) mm
Machine Weight
10,000 kg
