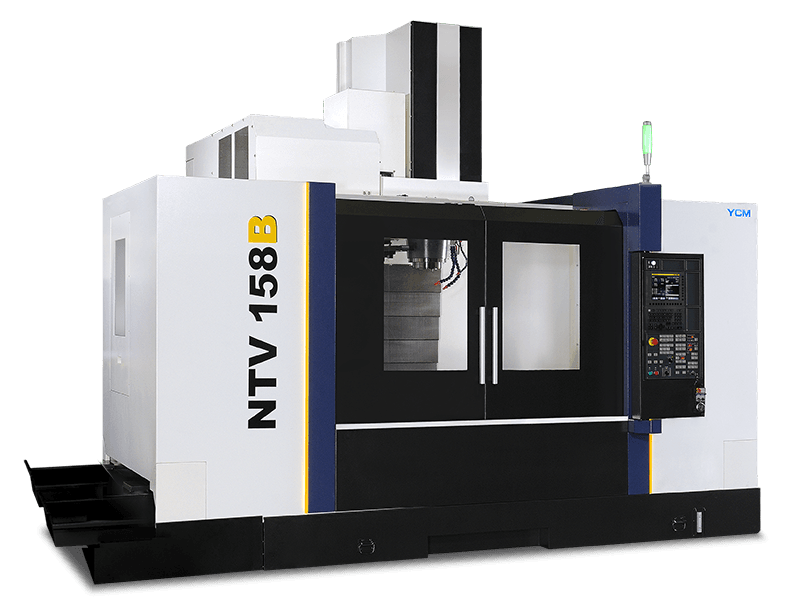

NTV158B High Efficiency T-base Vertical Machining Centre

NTV158B
  • With the unique T-base structure, the machine footprint can be reduced effectively
  • Overhang-free table movement is supported by high-rigidity base to ensure the best dynamic accuracy.
  • YCM's uniquely designed IDD Spindle ensures direct transmission and is proven to maximize both spindle and tool life under harsh working environment.
  • The cooling system for spindle motor seat and spindle makes real time control of spindle temperature.
  • All axes are equipped with roller type linear guideways to ensure higher dynamic accuracy, durability and rigidity.
  • Preload high precision ball screws are directly driven by servo motor will efficiently eliminate axial backlash and vibrations.
  • The casting rigidity is enhanced through FEM analysis.
  • Roller type guideways provides low friction which reduces energy waste.
Request a Quote

NTV 158B is specially developed for die & mold industry. The Z-axis dual drive system and roller type guideways on all axes ensure perfect rapid feedrate which is suitable for various heavy cutting applications.

Technical Data

Spindle Speed (Opt.)

10,000 (15,000)

Spindle Power (Opt.)

22(30)

Spindle Taper (Opt.)

BBT50(HSK-A100)

X-axis Travel

1,530 mm

Y-axis Travel

762 mm

Z-axis Travel

700 mm

Distance Between Spindle Nose & Table Top

200~900(450~1150) mm

Table Size

1,650 x 760 mm

No. T-slot x Size x Pitch

5 x 22 x 150 mm

Max. Load on Table

2,000 kg

X/Y/Z Rapid Feedrate

30/30/24 m/min.

Cutting Feedrate

1~10,000 mm/min.

Tool Magazine Capacity (Opt.)

24(32/40) T

Tool Weight

20 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

24T: ø110 x 350(ø190 x 350) 32T/40T: ø120 x 350(ø240 x 350) mm

Machine Weight

15,500

View NTV158B Datasheet Request a Quote
