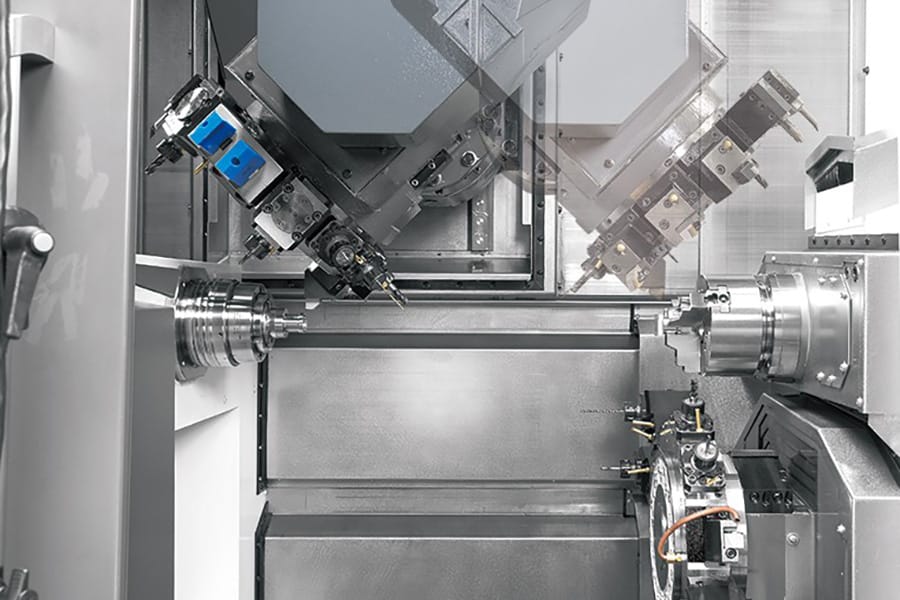

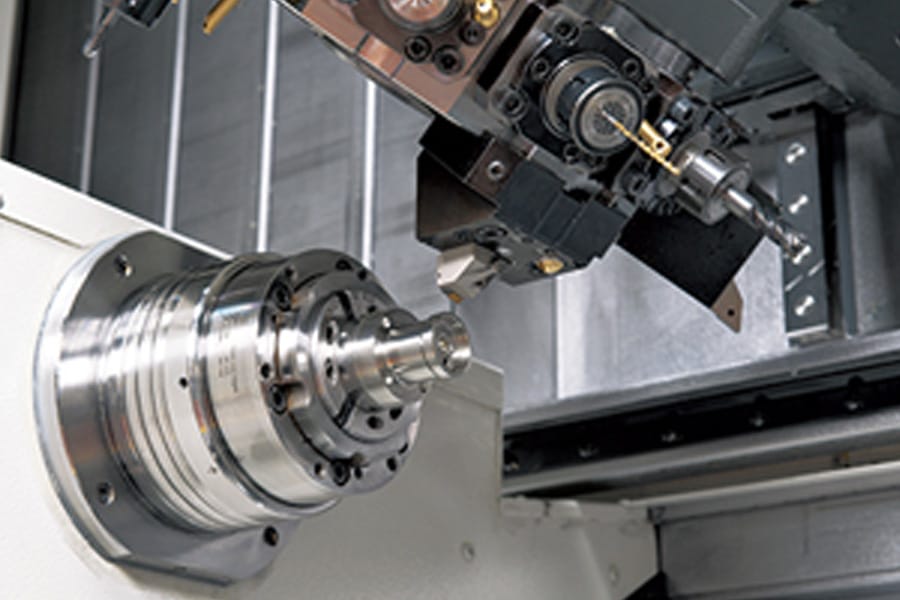

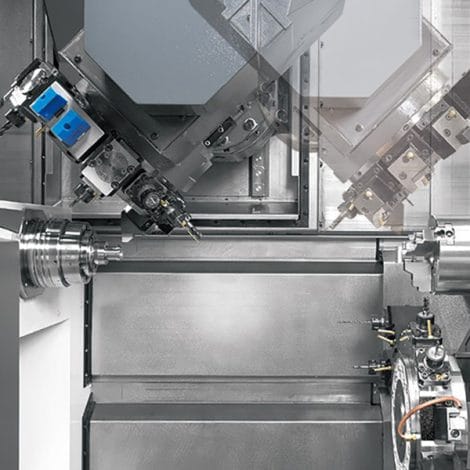

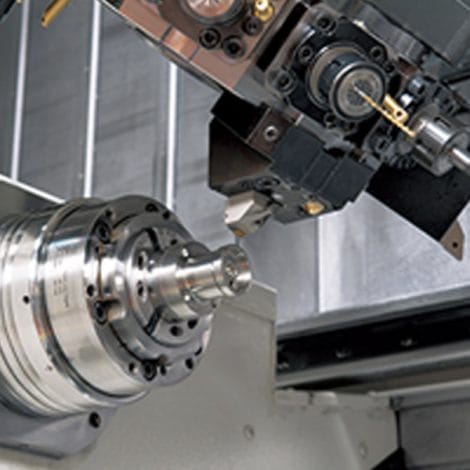

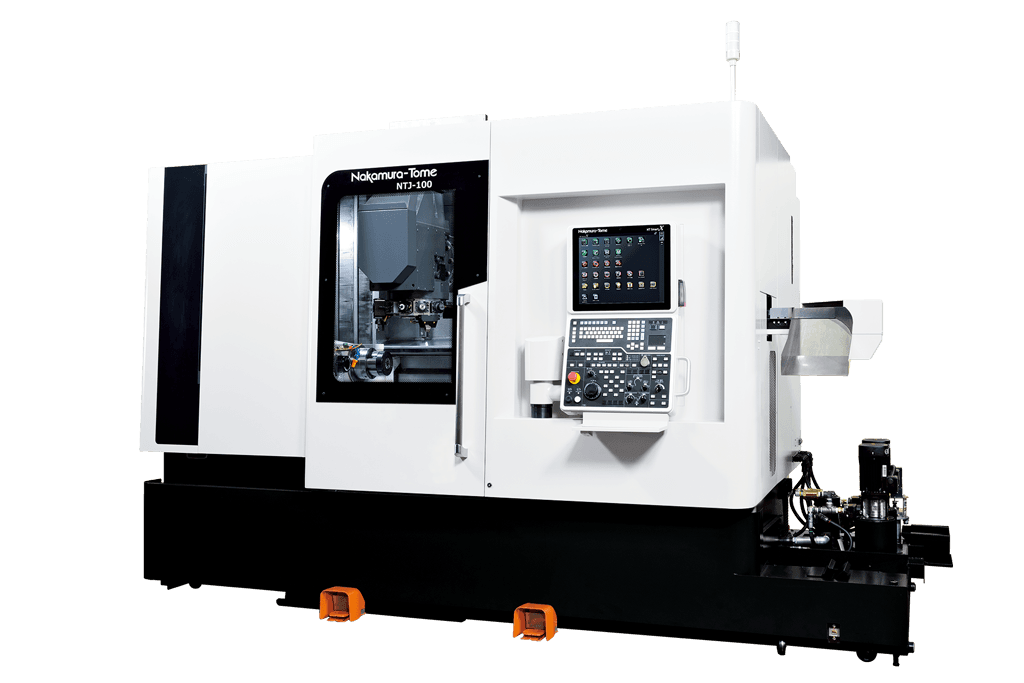

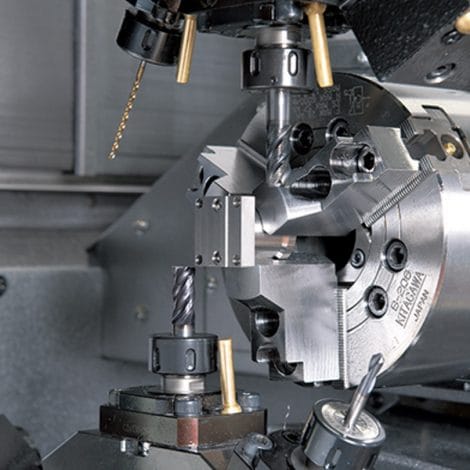

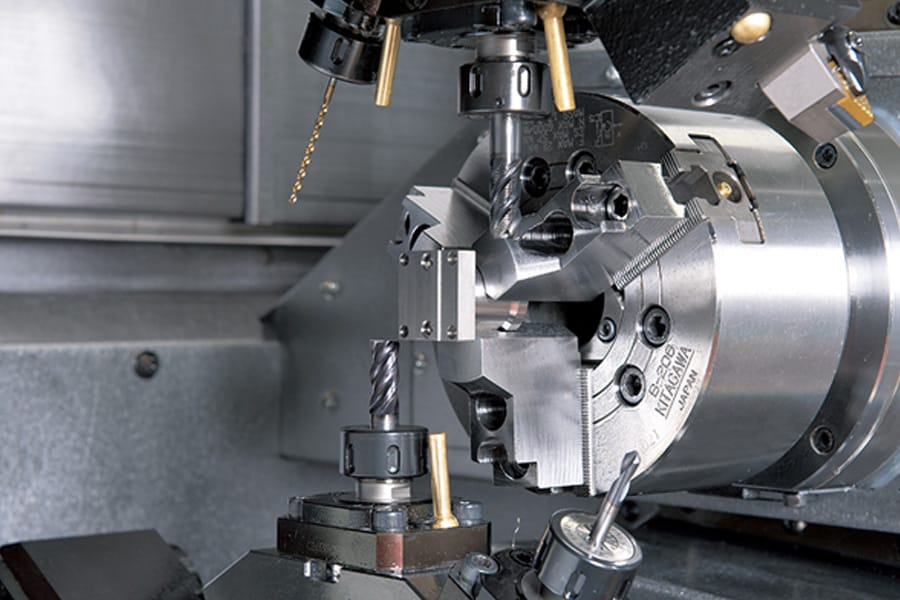

The Nakamura-Tome NTJ-100 is a turning centre designed to maximise flexibility and productivity through complete machining in a single setup. Featuring a 182° swivelling B-axis upper turret, twin opposed spindles and Y-axis capability on both the upper and lower turrets, the NTJ-100 enables complex angled machining while reducing setups and cycle times. Ideal for manufacturers producing intricate, high-precision components, the NTJ-100 delivers exceptional accuracy, efficiency and machining versatility.
| φ51mm | φ65mm (op.) | |
|---|---|---|
| Max. Turning Diameter | 175mm | |
| Max. Turning Length | 678mm | |
| Distance Between Spindles | max.910mm/min.200mm | |
| Bar Capacity | 51mm | 65mm |
| Chuck Size | 6″,(8″*1) | |
| Spindle Speed | 5,000min-1 | 4,500min-1 |
| Spindle Drive Motor | 11/7.5kW | |
| Floor space | height:2,565mm / width:3,799mm / depth:2,110mm | |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
