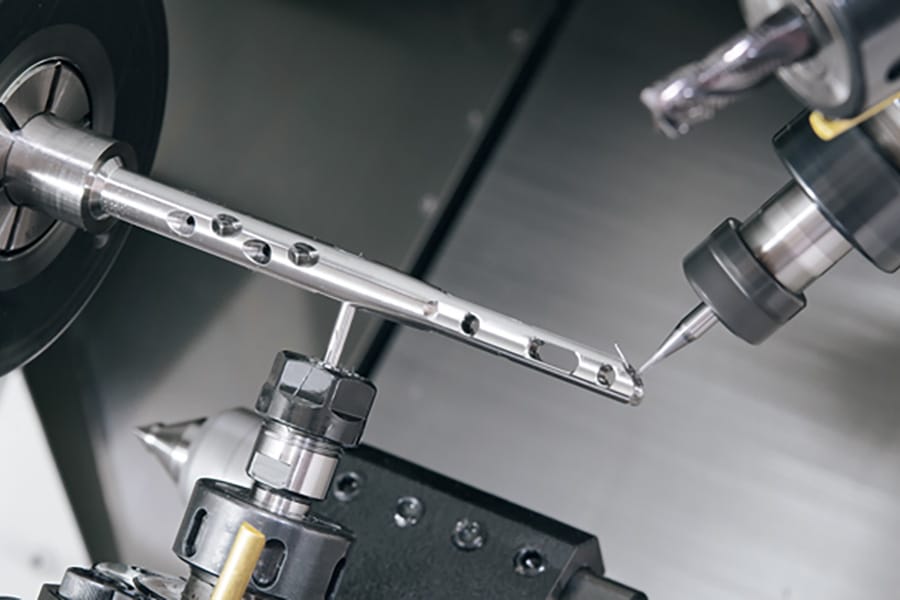

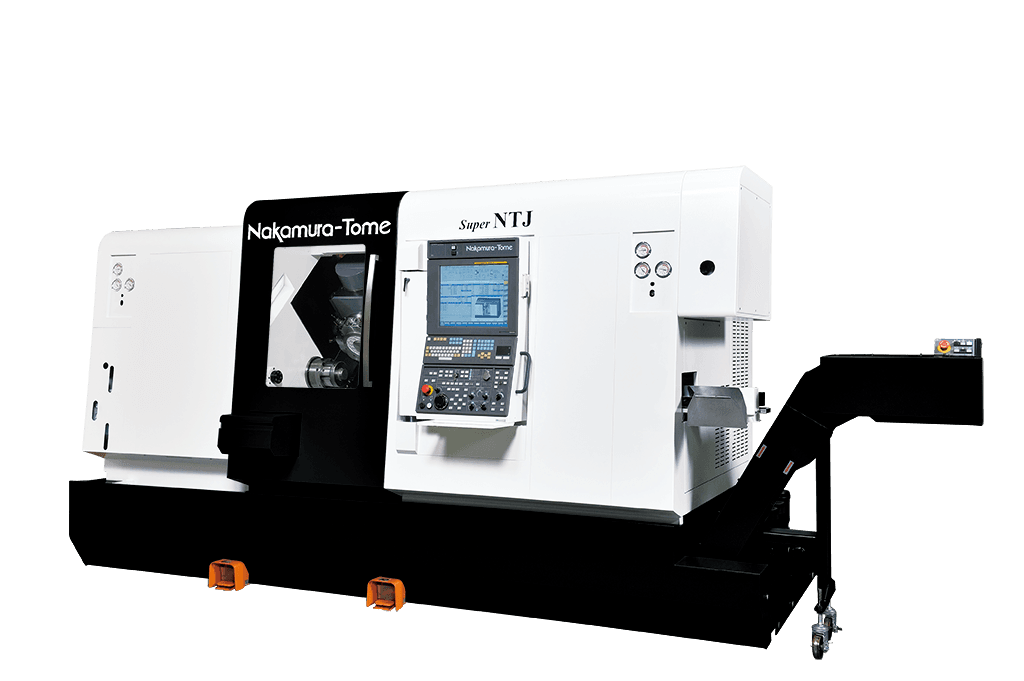

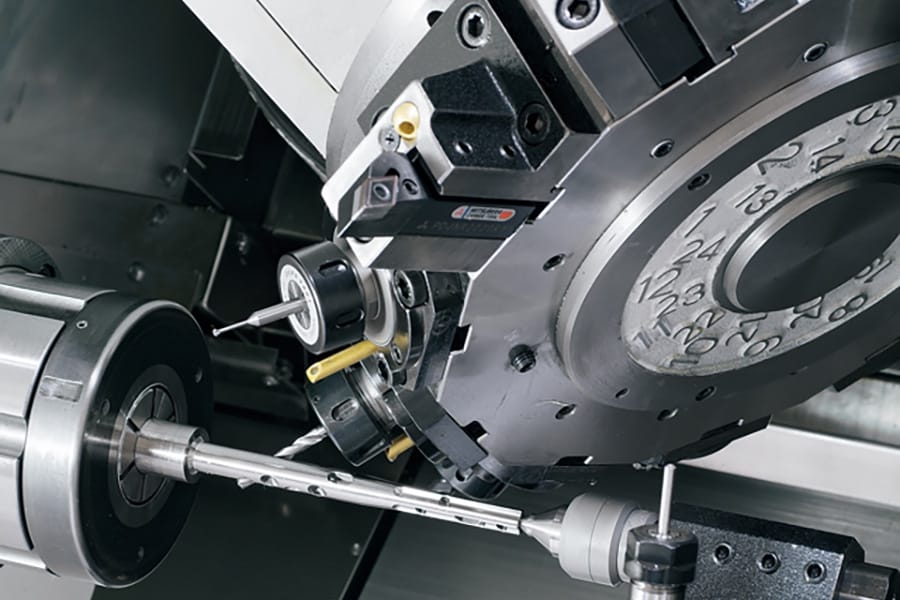

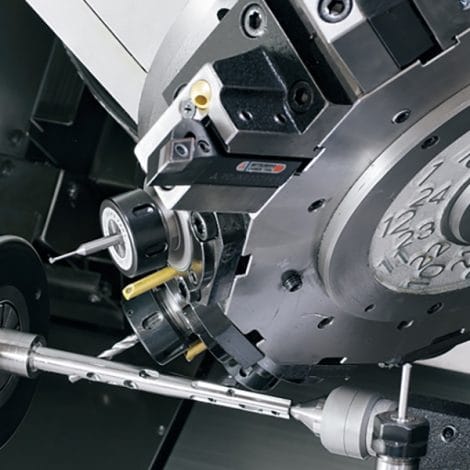

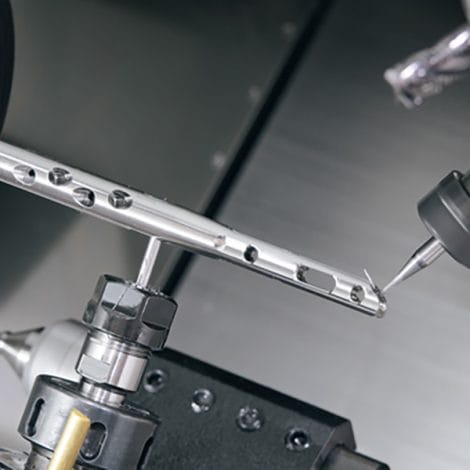

The Nakamura-Tome Super NTJ is a high-performance turning centre designed to complete complex components in a single setup. Featuring a 182° swivelling B-axis upper turret, twin opposed spindles and simultaneous upper and lower machining, the Super NTJ offers outstanding flexibility for turning, milling and angled machining operations. Built for high-precision manufacturing, it reduces cycle times, improves process efficiency and delivers exceptional machining accuracy across a wide range of applications.
| Φ65mm | Φ51mm（op.） | |
|---|---|---|
| Max. Turning Diameter | 190mm | |
| Max. Turning Length | 620mm | |
| Distance Between Spindles | max.970mm/min.210mm | |
| L Bar Capacity | 65mm | 51mm（op.） |
| R Bar Capacity | – | 51mm |
| Chuck Size | 6″,(8″*1) | |
| Spindle Speed | 4,500min-1 | 5,000min-1 |
| L Spindle Drive Motor | 15/11kW | |
| R Spindle Drive Motor | 11/7.5kW | |
| Floor space | height:2,170mm / width:3,660mm / depth:2,320mm | |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
