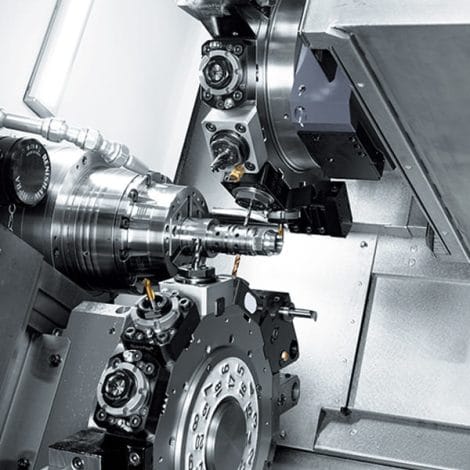

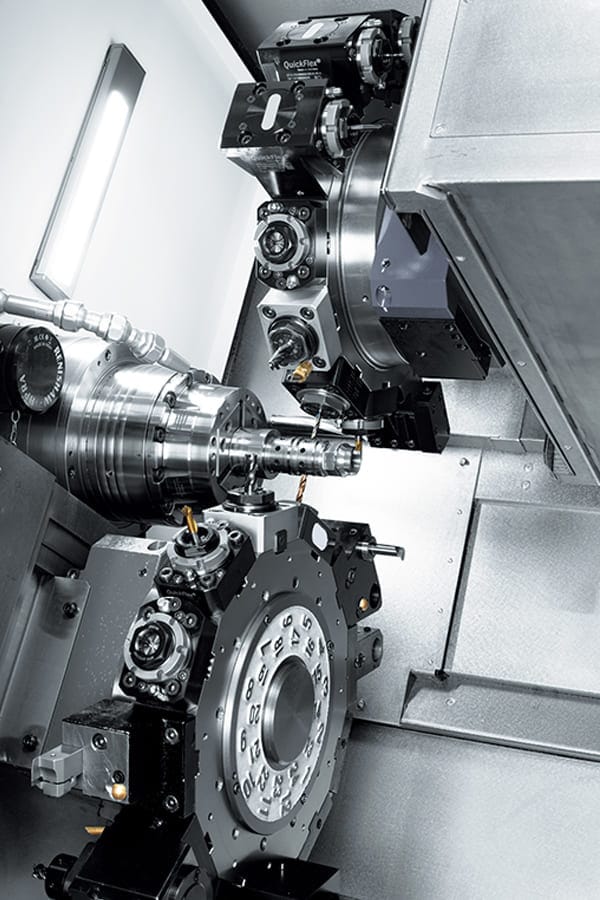

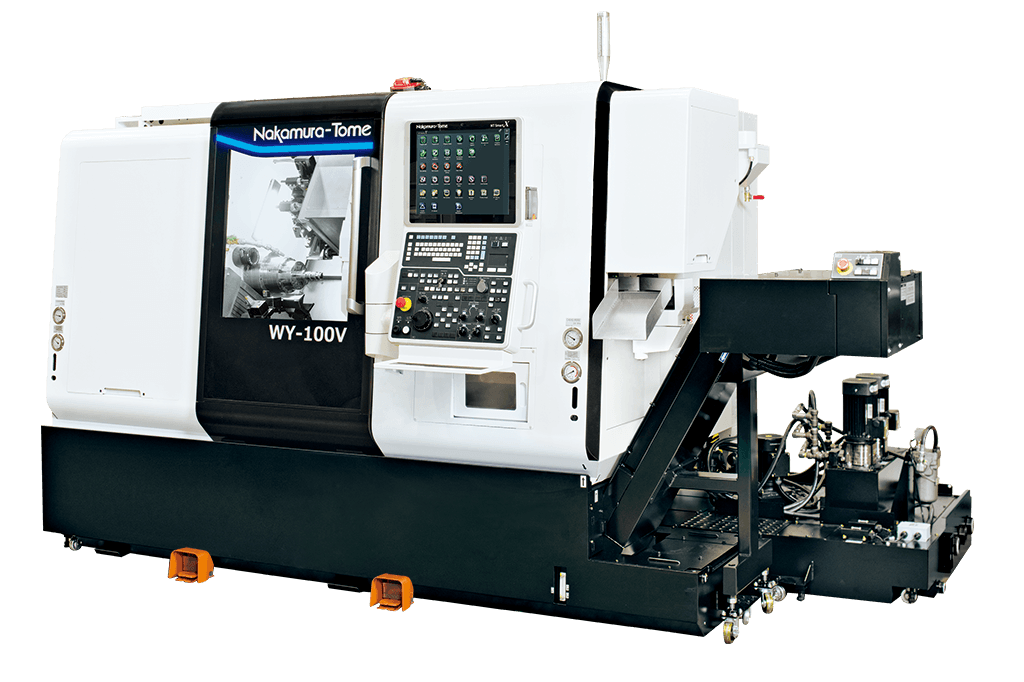

The Nakamura-Tome WY-100V is a high-speed turning centre designed to maximise productivity through simultaneous machining and intelligent process optimisation. Featuring twin opposed spindles, twin Y-axis turrets and Nakamura-Tome’s innovative ChronoCut technology, the WY-100V enables multiple operations to be completed in a single setup while significantly reducing cycle times. Built with enhanced rigidity and advanced thermal compensation, the machine delivers outstanding accuracy, reliability and efficiency for demanding, high-volume manufacturing applications.
| φ42mm | φ51mm(op.) | φ65mm(op. Only L) | |
|---|---|---|---|
| Max. Turning Diameter 12st. | 200mm | ||
| Max. Turning Diameter 15st(op.) | 190mm | ||
| Max. Turning Length | 588mm | ||
| Distance Between Spindles | max.820mm/min.200mm | ||
| Bar Capacity | 42mm | 51mm | 65mm |
| Chuck Size | 6″ | ||
| L/R Spindle Speed | 6,000min-1 | 5,000min-1 | |
| L/R Spindle Drive Motor | 11/7.5kW | 11/7.5kW , 15/11kW(op.) | |
| Floor space | height:2,255.3mm(*1)/width:3,849.1mm/depth:2,245.7mm | ||
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
