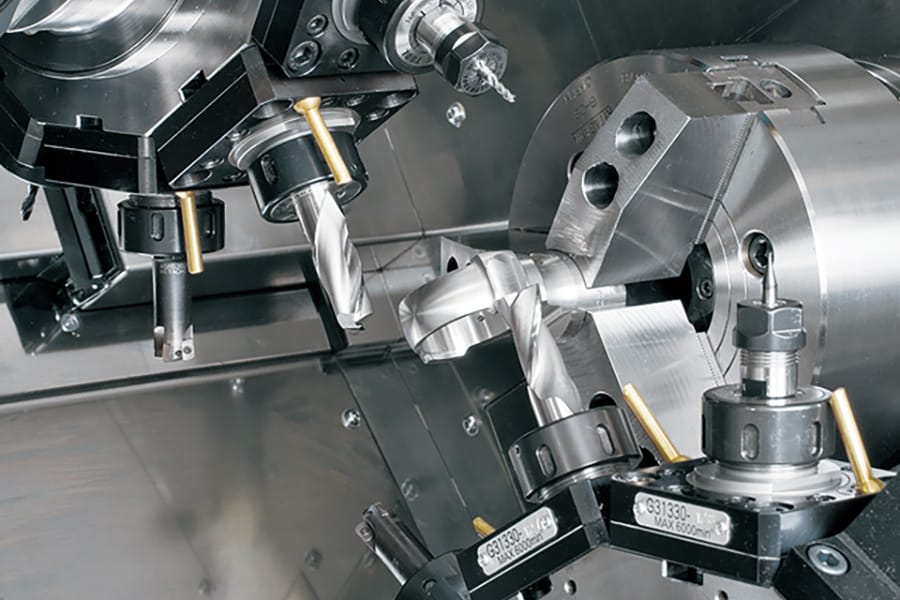

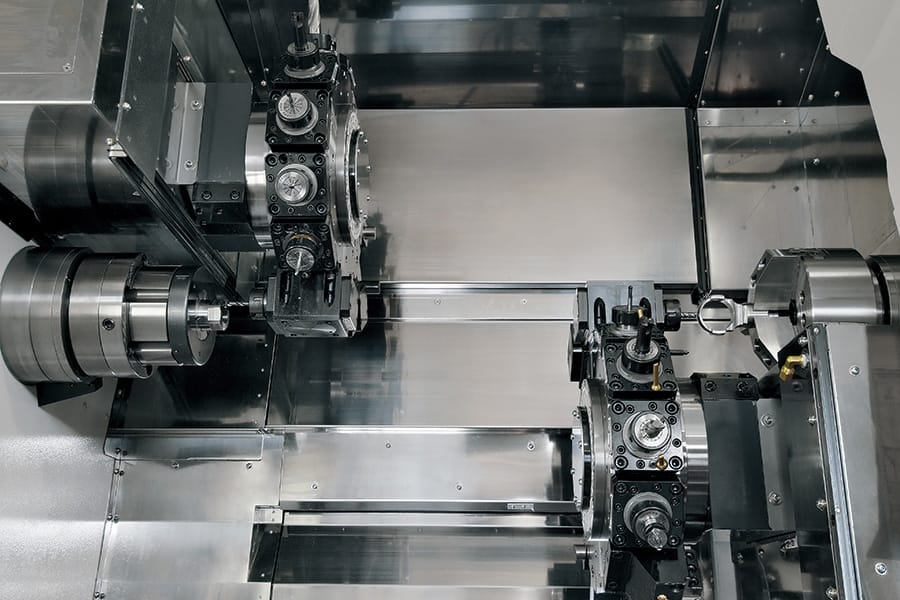

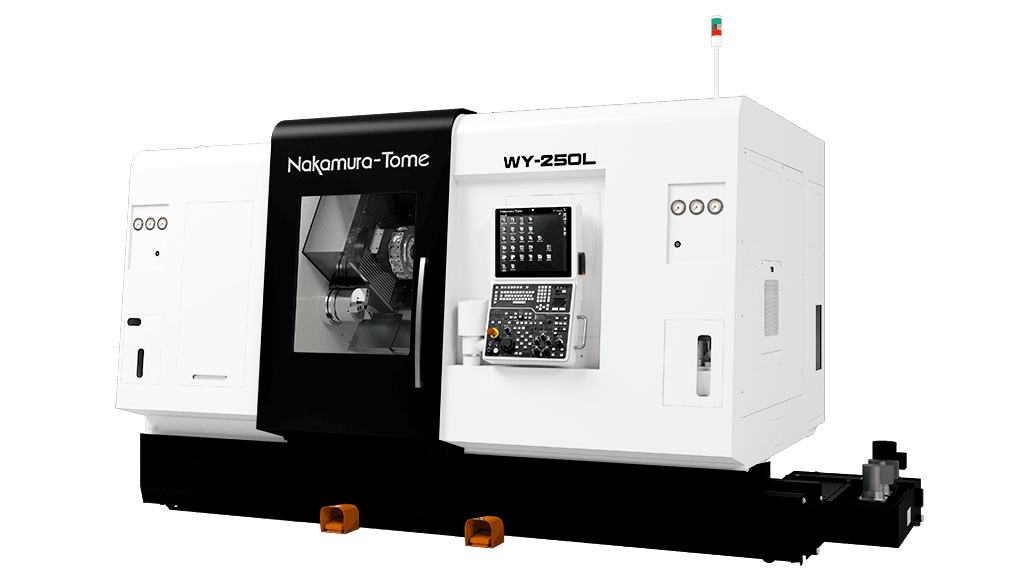

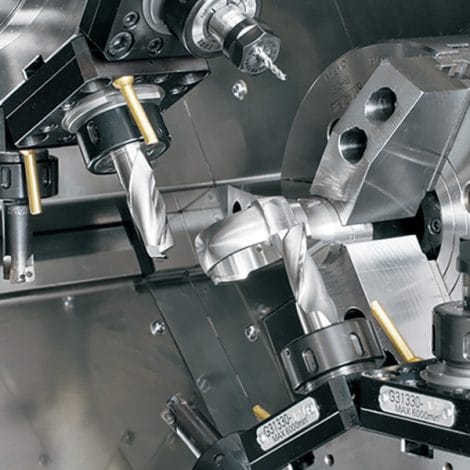

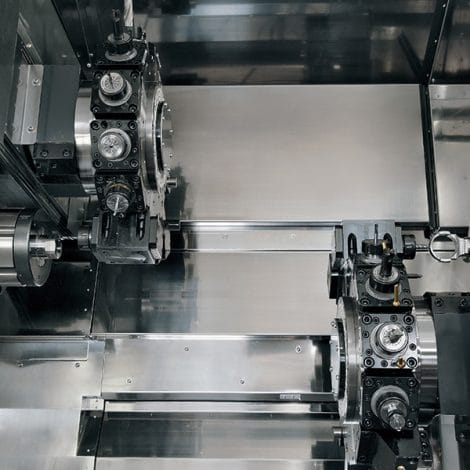

The Nakamura-Tome WY-250L is a high-performance turning centre designed specifically for machining long and complex workpieces with maximum efficiency and precision. Featuring twin opposed spindles, twin turrets with Y-axis capability as standard and a 1,200mm distance between spindles, the WY-250L enables multiple operations to be completed simultaneously within a single setup. With high rigidity, increased tool capacity and excellent machining flexibility, the WY-250L delivers outstanding productivity and accuracy for demanding manufacturing applications.
| φ51mm(Only R) | φ65mm(op.R) | φ71mm(op.) | φ80mm(op.) | |
|---|---|---|---|---|
| Max. Turning Diameter | 225mm | 180mm | ||
| Max. Turning Length | 910mm | |||
| Distance Between Spindles | max.1,200mm/min.255mm | |||
| L Bar Capacity | – | 65mm | 71mm | 80mm |
| R Bar Capacity | 51mm | 65mm | – | – |
| L Chuck Size | – | 8″ | ||
| R Chuck Size | 6″ | – | – | |
| L Spindle Speed | – | 4,500min-1 | 4,000min-1 | 3,500min-1 |
| L Spindle Drive Motor | – | 18.5/11kW, 26/22kW(op.)(※R-Spindle is automatically upgraded to 18.5/15kW) | ||
| R Spindle Speed | 5,000min-1 | 4,500min-1 | – | – |
| R Spindle Drive Motor | 15kW/11kW, 18.5/15kW(op.)(※L-Spindle is automatically upgraded to 26/22kW) | – | – | |
| Floor space | height:2,563mm(Maximum height of moving part) / width:4,620mm / depth:2,593mm | |||
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
