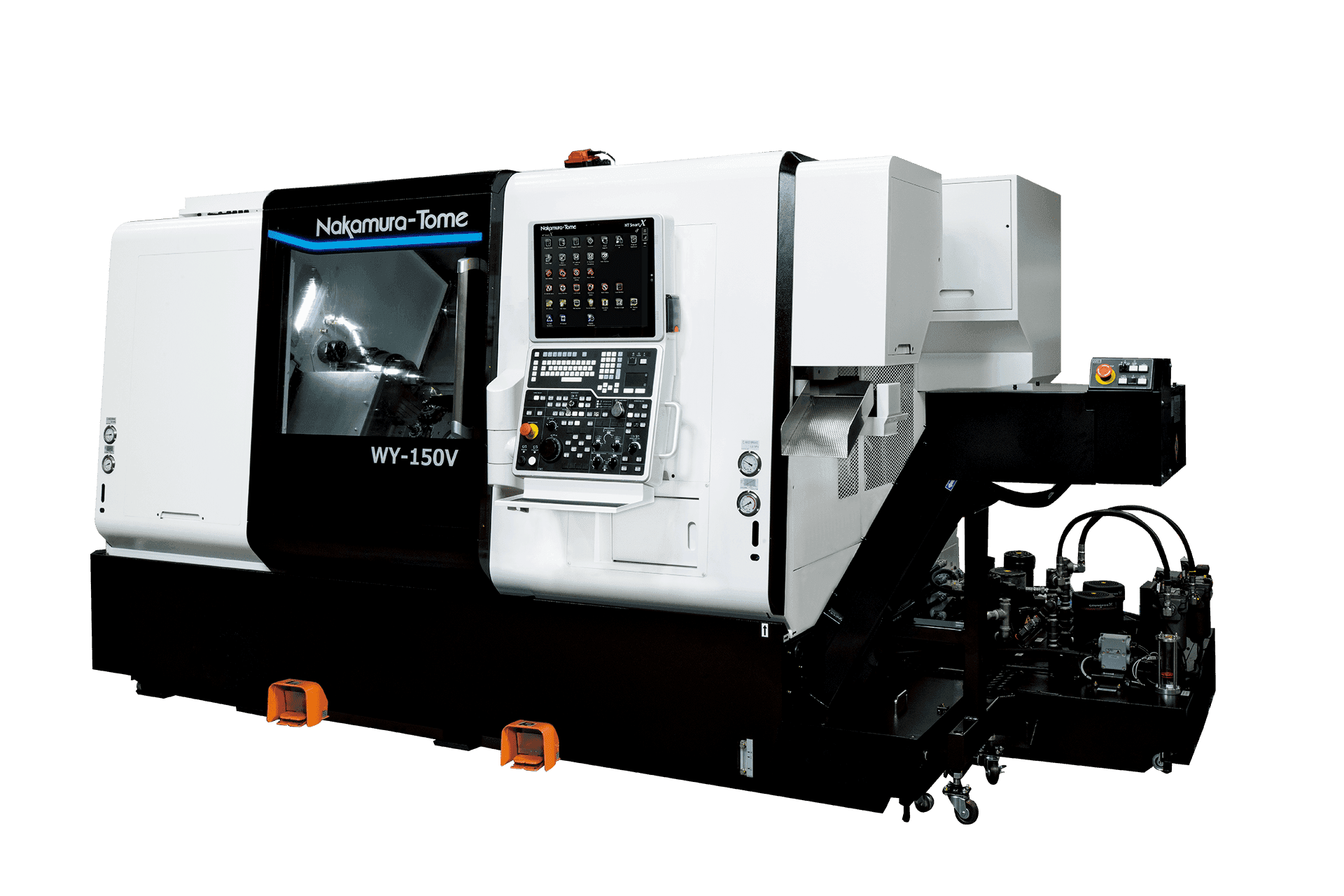

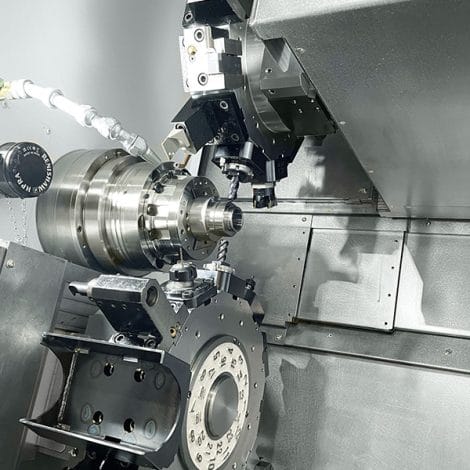

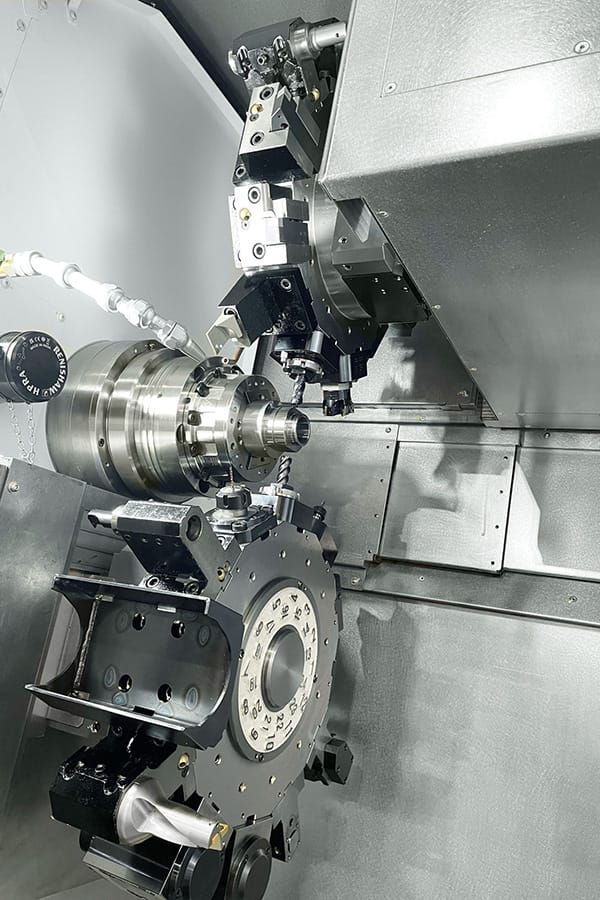

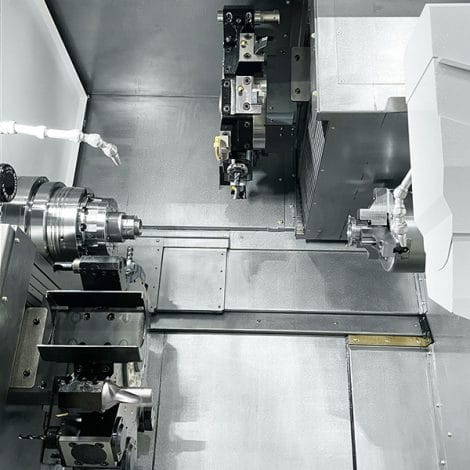

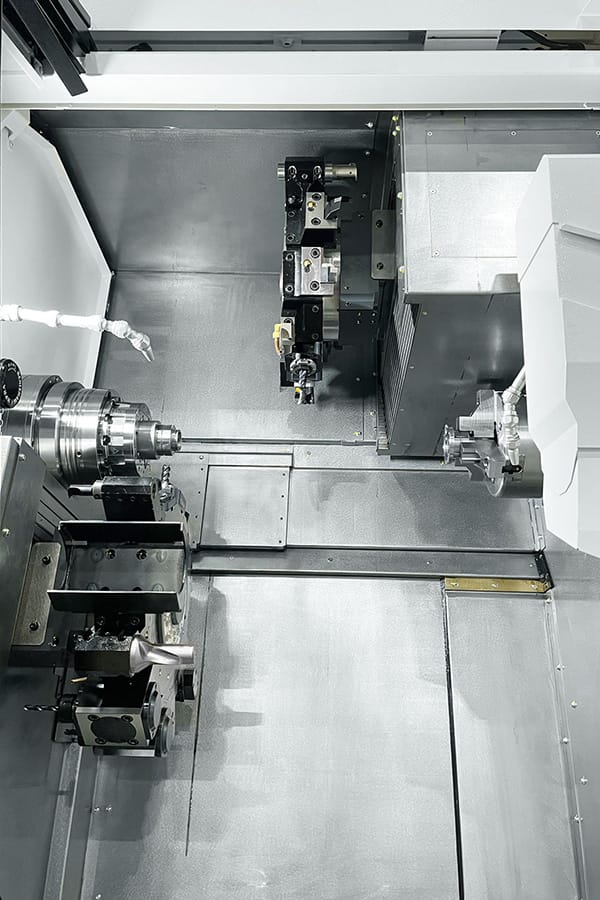

The Nakamura-Tome WY-150V is a high-performance turning centre designed to maximise productivity through simultaneous machining and intelligent process optimisation. Featuring twin opposed spindles, twin Y-axis turrets and ChronoCut technology as standard, the WY-150V enables multiple operations to be completed in a single setup while significantly reducing cycle times. With enhanced spindle performance, increased bar capacity options and a rigid, thermally stable machine structure, the WY-150V delivers exceptional precision, reliability and efficiency for demanding manufacturing applications.
| φ51mm | φ65mm(op.) | φ80mm(op. Only L) | |
|---|---|---|---|
| Max. Turning Diameter | φ225mm | ||
| Max. Turning Length | 685mm | ||
| Distance Between Spindles | max.970mm/min.200mm | ||
| Bar Capacity | 51mm | 65mm | 80mm |
| Chuck Size | 6″,8″ | 8″ | |
| L/R Spindle Speed | 6,000min-1 | 5,000min-1 | 4,000min-1 |
| L/R Spindle Drive Motor | 15/11kW | 18.5/11kW | 28/15kW |
| Floor space | height:2,280mm(Maximum height of moving part)/width:4,245.2mm/depth:2,389.7mm | ||
| Left Spindle motor | Right Spindle motor | |||
|---|---|---|---|---|
| Standard | φ51(A2-5) 15/11kW | φ51(A2-5) 15/11kW | ||
| op. | φ65(A2-6) 18.5/11kW | φ51(A2-5) 15/11kW | ||
| op. | φ65(A2-6) 18.5/11kW | φ65(A2-6) 18.5/11kW | ||
| op. | φ80(A2-8) 28/15kW | φ65(A2-6) 18.5/11kW | ||
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
