FORTE 65 SINGLE 1320 EL The automatable, vertical 3-axis mobile stand machining centre with a large tool changer

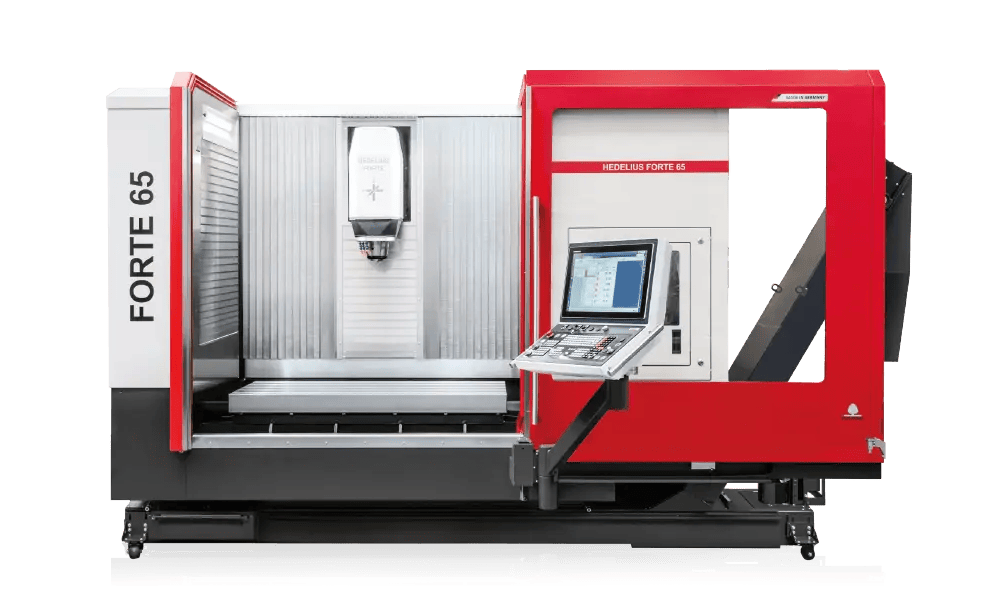

Hedelius F65
  • Automation with pallet handling system or robots
  • Loading from the left side of the machine via a pneumatically operated stainless steel loading door
  • Automation interface already set up
  • Side opening height of approx. 910 mm
  • Suitable for numerous pallet handling systems or robot systems
  • Heavy-duty, fixed machine bench
  • Vertical stainless-steel covering for optimised chip fall
  • Moving columns made of high-quality machine castings
  • Highlight: 65-tool magazine operated from the front
Request a Quote

If you need high machining performance and precision to carry out your automation project, the 3-axis FORTE 65 Single EL 1320 machining centre is the right choice. The modern moving column construction boasts a high degree of dynamics independent of the workpiece weight. The machine has a pneumatically operated loading opening on the left-hand side as standard. This opening enables automatic loading of pallets or workpieces without impairing access to the machine workspace in the process.Countless automation options are available thanks to the large selection of interfaces for different automation manufacturers such as EROWA, INDUMATIK or BMO.

Technical Data

X-, Y-, Z-travel

1320 x 650 x 600 mm

Speed range

14000/15000/18000/24000

Spindle power

22.00/29.00/30.00/35.00/50.00 kW

Number of tools

65/245/329 (max.)

Tool holder

SK40 / BT40 / HSK A63

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain / Sinumerik

Total clamping surface

1500 x 650 mm

Fixed table load

1200/2000 kg

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

Control Options

Sinumerik
Heidenhain
