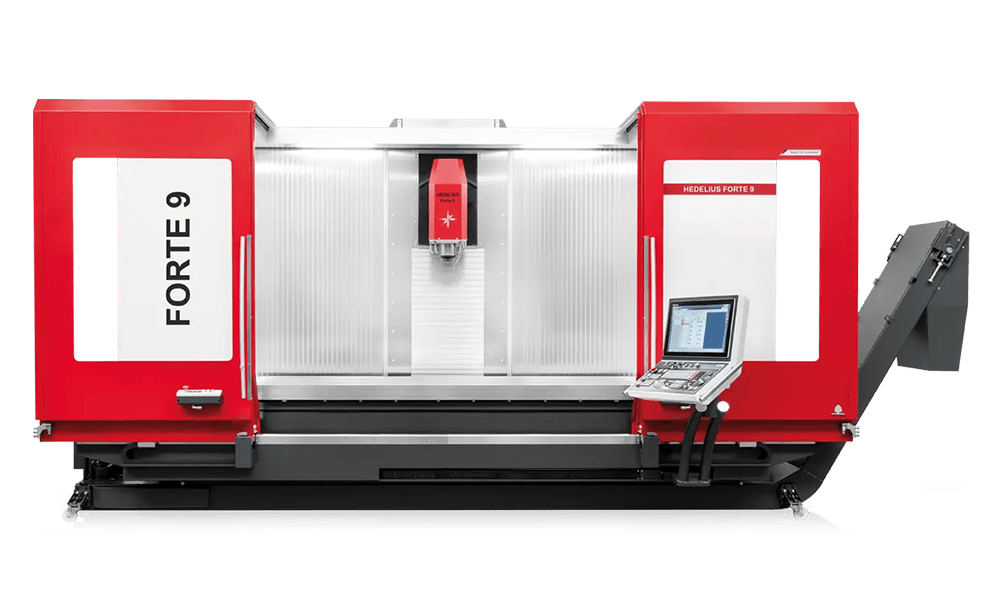

FORTE 9-2600 Flexible machining of large parts.

F9 2600
  • Large Z-axis travels of 1005 mm
  • Fully enclosed working space
  • Direct measuring systems
  • High-performance liquid-cooled motor milling spindle at 14,000 min-1 and 22 kW as standard
  • Main spindles with SK40 or HSK A63 uptake if required
  • High table load thanks to fixed machine bench
  • Travelling 60-fold tool magazine
  • Tool selection via double gripper during machining time for shorter chip-to-chip time
  • Vertical stainless steel cover for optimised chip fall
  • Chip conveyor may be right- or left-oriented, as required
Request a Quote

The FORTE 9 is the latest addition to the successful FORTE range from HEDELIUS. Designed for machining with modern high-performance tools, the FORTE 9-2600 has a 60-fold tool magazine and large travels of 2600 x 900 x 1005 mm. The sophisticated moving column concept proves itself in the machining of large parts thanks to its impressive performance, precision and dynamics.

Technical Data

X-, Y-, Z-travel

2600 x 900 x 1005 mm

Speed range

14000/15000/18000

Spindle power

22.00/35.00/37.00/50.00 kW

Number of tools

60/240/324 (max.)

Tool holder

SK40 / BT40 / HSK A63

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain / Sinumerik

Total clamping surface

3080 x 900 mm

Fixed table load

3000 kg

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

Control Options

Heidenhain
Sinumerik
