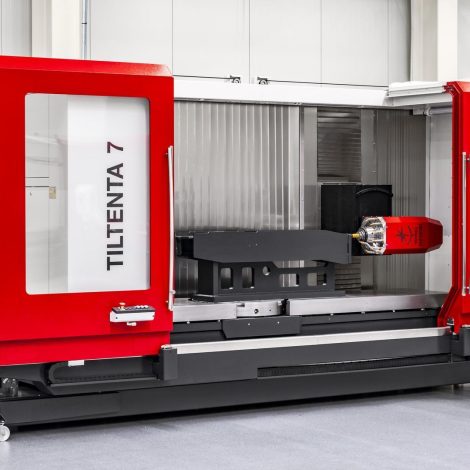

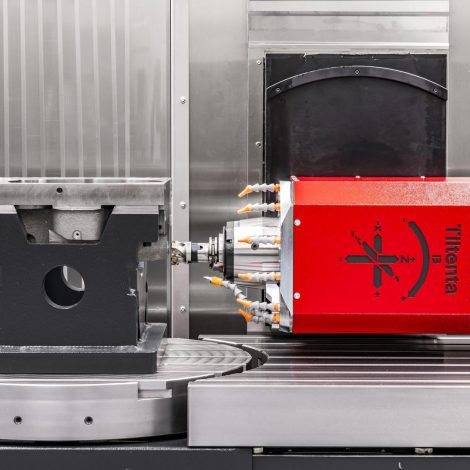

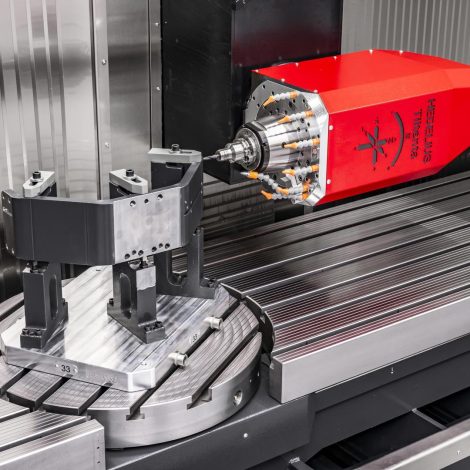

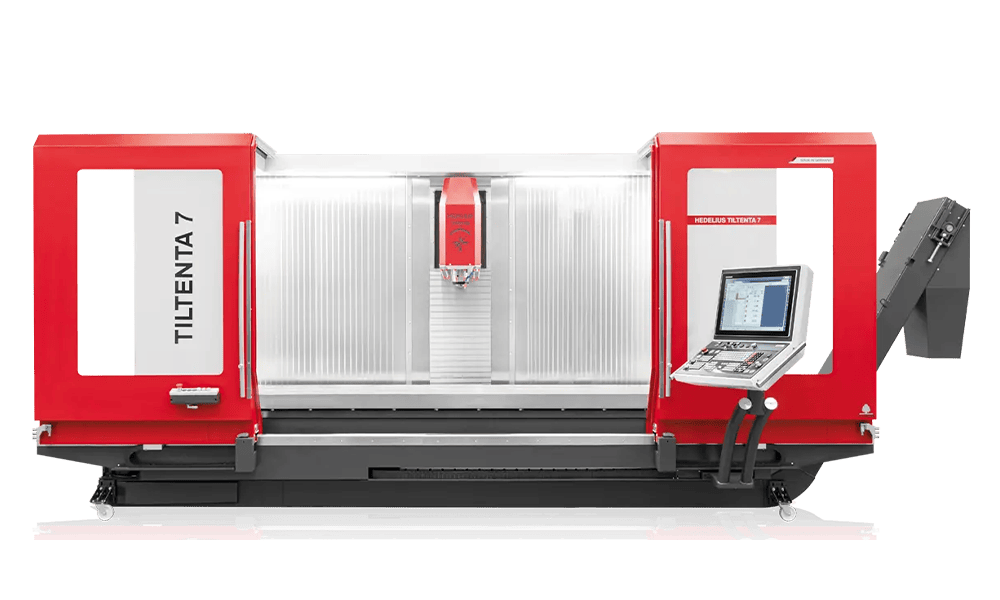

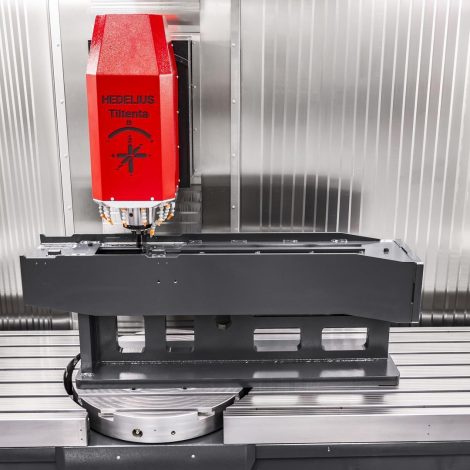

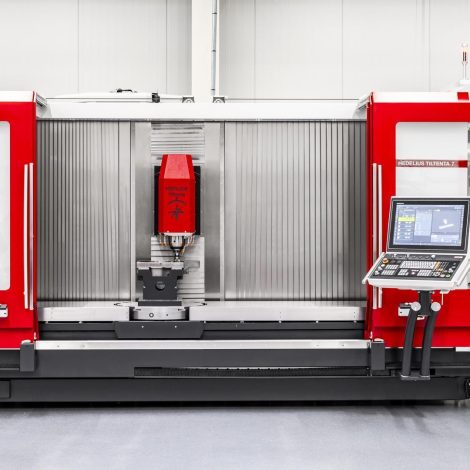

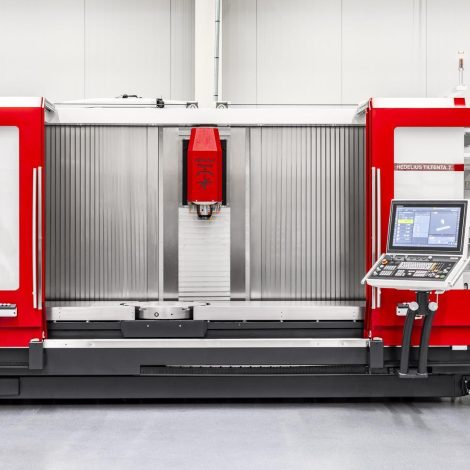

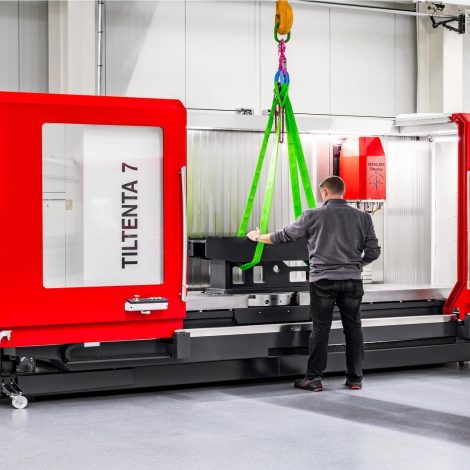

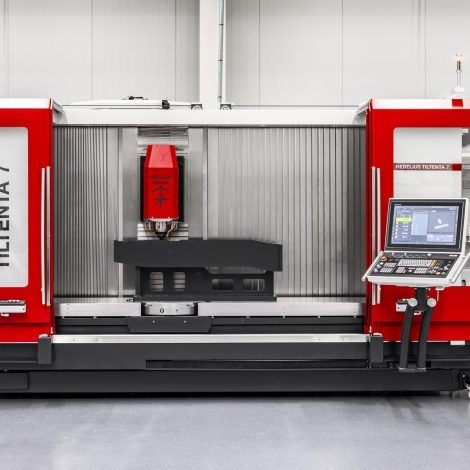

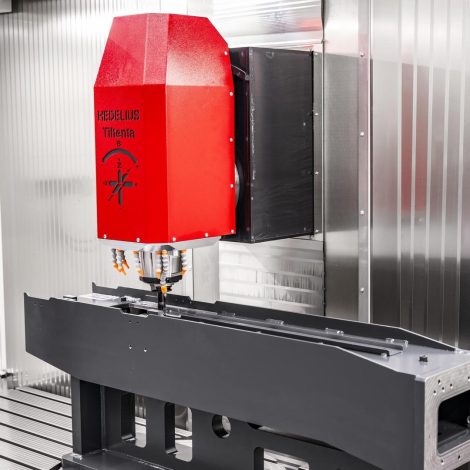

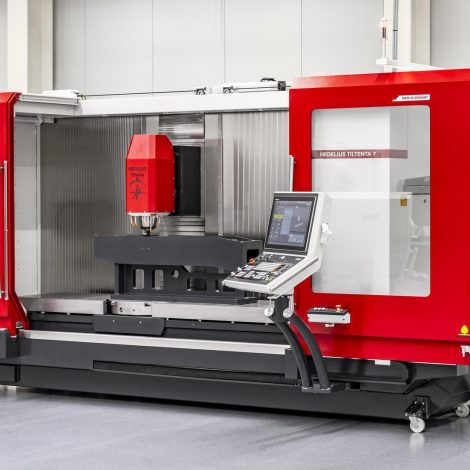

The TILTENTA 7 NEO opens up new applications in the processing of single items and series. Whether end machining of long workpieces or 5-sided complete machining with integrated NC rotary table – the TILTENTA 7 crossover concept solves many processing tasks in mechanical engineering, tool making and vehicle production. The combination of an infinitely adjustable main spindle and a long machine table with integrated NC rotary table allows the mixed production of large workpieces and precise 5-axis machining in one machine.
X-, Y-, Z-travel
2600/2030 x 700 x 695/800 mm
Shuttle operation
1300/840 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/18000
Spindle power
22.00/29.00/35.00 kW
Number of tools
45/225/309 (max.)
Tool holder
SK40 / BT40 / HSK A63
Rapid traverse
40/40/40 m/min
Feed measurement system
direct
Control
Heidenhain / Sinumerik
Total clamping surface
3080 x 700 mm
Fixed table load
2500 kg
Clamping area round table
Ø 700 mm
Load of the rotary table
800 kg
Diameter interference circle
Ø 1050 mm
