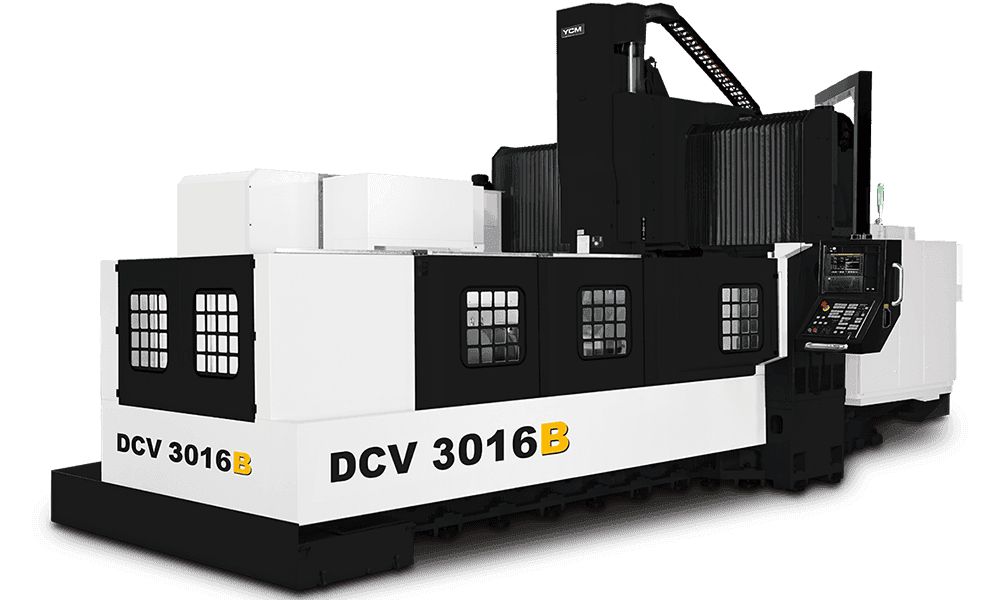

DCV3016B DCV Series

DCV3016B
  • X-axis is directly driven by gearbox offering smooth axial response and high torque
  • Roller type guideways on X/Y axis
  • Y-axis is supported by 3 roller type guideways and 6 slider blocks to offer ultimate cutting rigidity
  • Horizontal and vertical support of the headstock
  • Hardened and ground box guideway on Z-axis enlarges the contact interface for high machining stability
  • 4,500rpm spindle speed is standard with 2-step gear transmission.
  • The spindle incorporates roller type spindle bearings for extremely high cutting rigidity.
Request a Quote

YCM keeps building up the in-house ability and seriously examines the workflow for upgrading DCV series to the limit. DCV series is exactly the ultimate double column vertical machining centre combining flawless accuracy, rigidity, and power.

Technical Data

Spindle Speed (Opt.)

25(25/45) rpm

Spindle Power (Opt.)

25(25/45) kW

Spindle Taper (Opt.)

BBT50

X-axis Travel

3,060 mm

Y-axis Travel

1,600 mm

Z-axis Travel (Opt.)

762 (1,016) mm

Distance Between Spindle Nose & Table Top

200~962 (450~1,212 [ Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016] ) (mm)

Distance Between Columns

1,820 mm

Table Size

3,260 x 1,500 mm

No. T-slot x Size x Pitch

9 x 22 x 150 mm

Max. Load on Table

10,000 kg

X/Y/Z Rapid Feedrate

20/15/15 m/min

Cutting Feedrate

1~10,000 mm/min

Tool Magazine Capacity (Opt.)

40 (60/120) T

Tool Weight

20 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

ø125 x 350 ( ø240 x 350 ) mm

Machine Weight

31,000 kg
