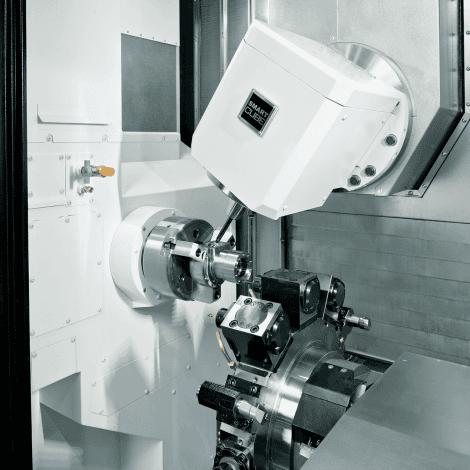

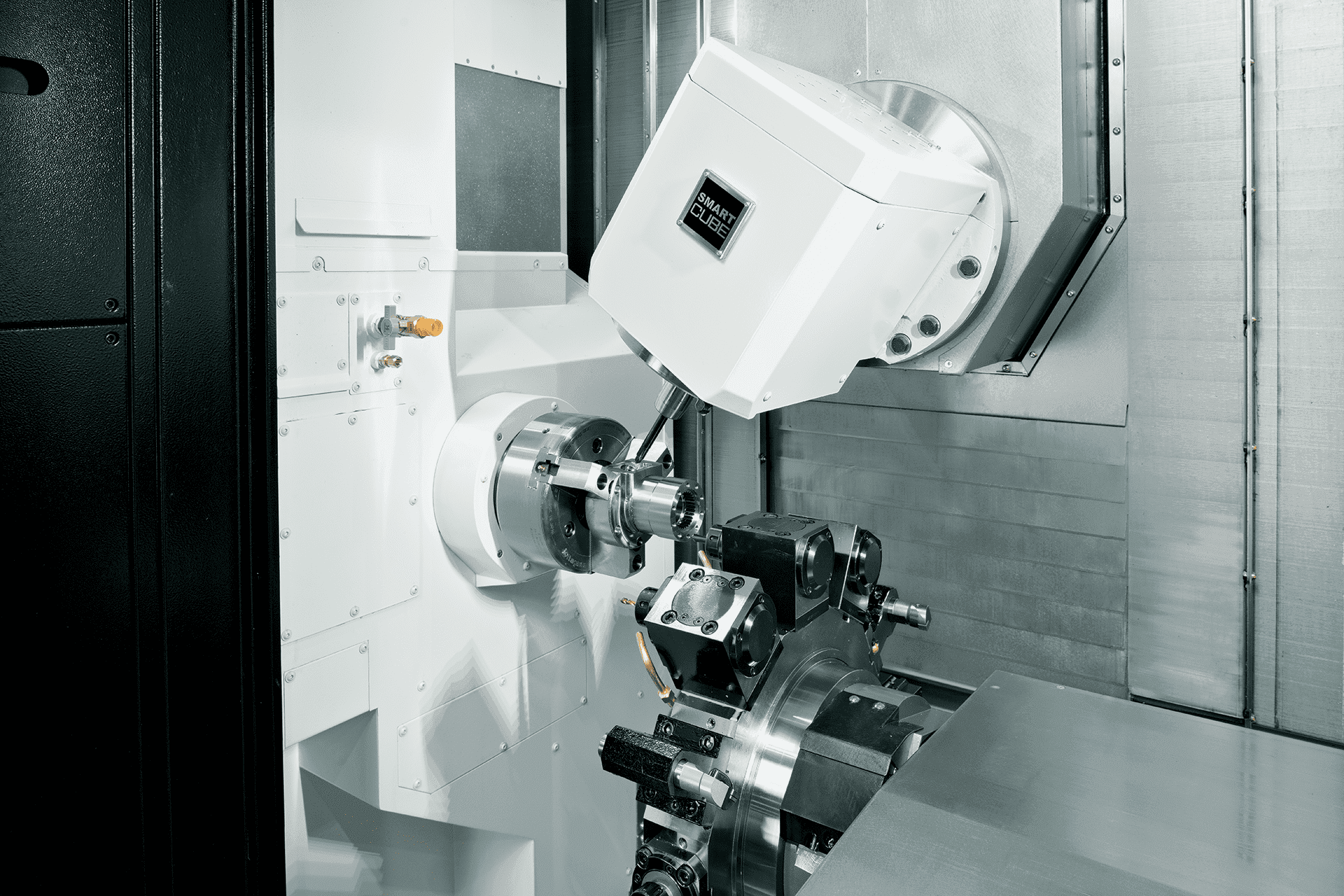

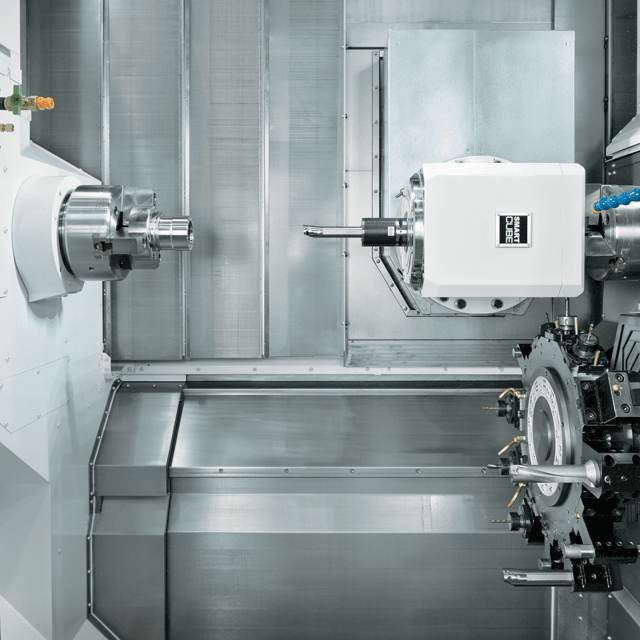

The NT Smart Cube ATC Multitasking Machine is engineered to maximise productivity through simultaneous machining, exceptional rigidity and an innovative compact spindle design. Featuring the world’s shortest tool spindle, twin opposed spindles and a fully capable lower turret with standard milling and Y-axis, it enables manufacturers to complete complex components faster and with fewer setups.
Built around a heavy-duty column structure for outstanding stability, the machine combines high-speed performance with precision. A large-capacity ATC magazine, generous machining envelope and flexible multitasking capabilities make it an ideal solution for demanding production environments where efficiency, accuracy and throughput are critical.
| Φ51mm(R only) | Φ65mm(op. R) | Φ80mm(op.) | |
|---|---|---|---|
| Max. turning diameter | 325mm / 255mm | ||
| Max. turning length | 1,058mm | ||
| Distance between spindles | max.1,250mm / min.240mm | ||
| Left Bar capacity(φ) | – | 65mm | 80mm(op.)*1 |
| Right Bar capacity(φ) | 51mm | 65mm(op.) | – |
| Chuck size | 6”,8”,(10″*2) | ||
| Spindle speed | 6,000min-1 | 4,500min-1 | 3,500min-1 |
| Left Spindle motor | – | 15/11kW | 22/18.5kW |
| Right Spindle motor | 11/7.5kW | 15/11kW | – |
| Floor space | height:2,925mm / width:5,250mm / depth:2,984.4mm | ||
*1 Specification of Φ51mm bar capacity is not available on Right side spindle when Φ80mm bar capacity is selected on Left side spindle.
*2 There is a track record for this specification. Please consult with our sales representatives.
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
