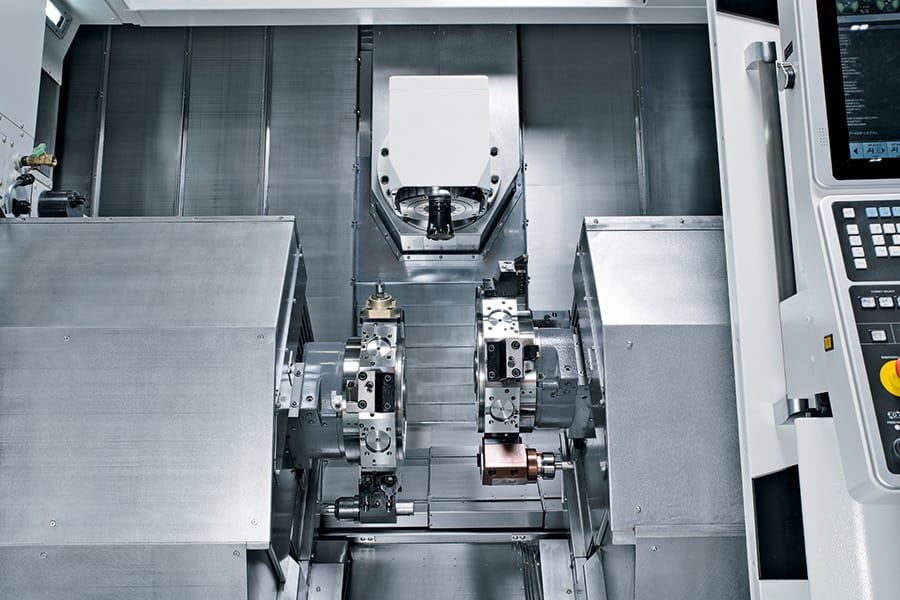

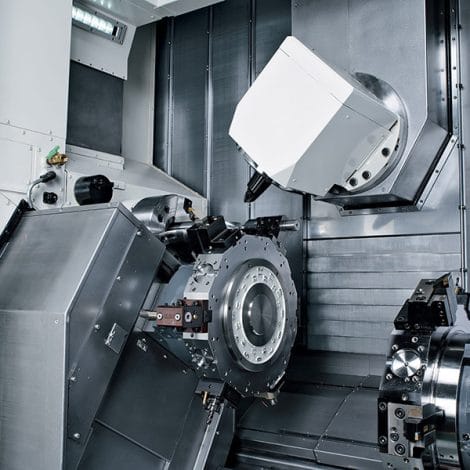

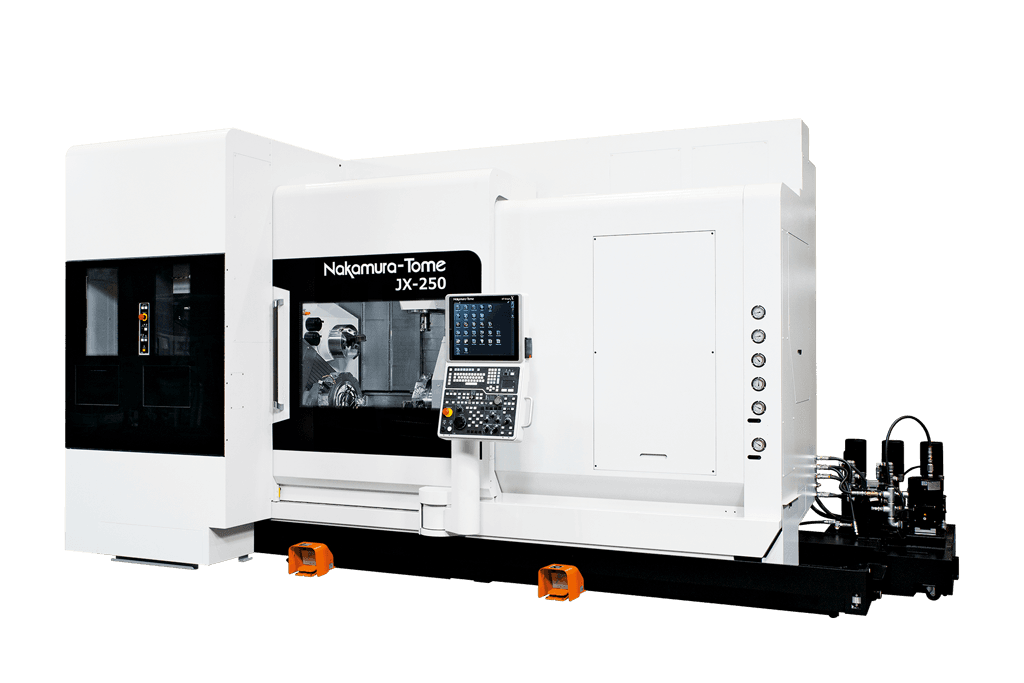

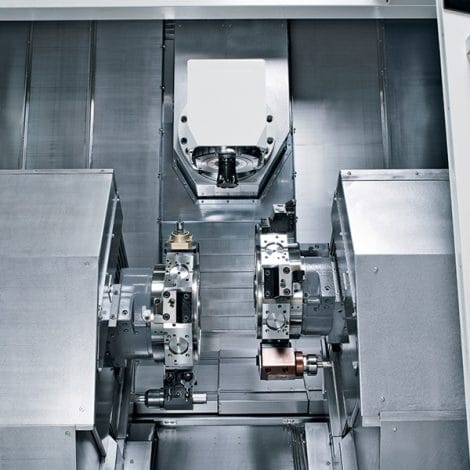

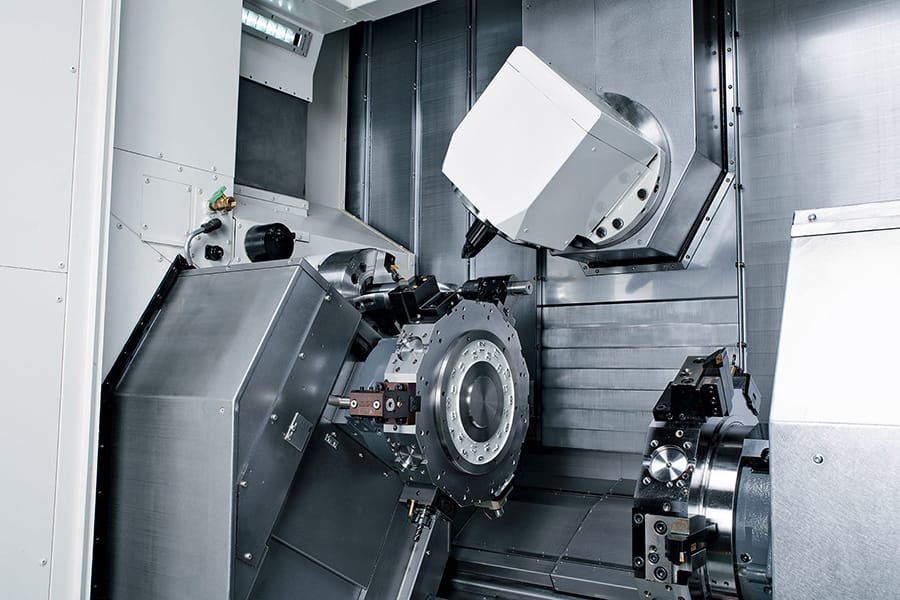

The Nakamura-Tome JX-250 is a high-rigidity multi-tasking turning centre designed for manufacturers machining larger, more complex components with maximum precision and efficiency. Combining turning, milling and simultaneous multi-axis machining within a single platform, the JX-250 reduces setups, shortens cycle times and delivers exceptional accuracy. Equipped with the compact NT Smart Cube tool spindle, twin opposed spindles and an advanced automatic tool changer, the JX-250 provides the flexibility and performance required for demanding production environments.
| φ65mm | φ71mm（op.） | φ80mm（op.） | φ90mm（op.）*1 | |
|---|---|---|---|---|
| Max. turning diameter | 320mm | |||
| Max. turning length | 1,650mm | 1,587mm | ||
| Distance between spindles | max.1,850mm/min.300mm | max.1,787mm/min.237mm | ||
| Bar capacity(φ) | 65mm | 71mm | 80mm | 90mm |
| Chuck size | 8″,10″,(12″*2),(15″*2) | 8″,10″,(12″*2) | ||
| Spindle speed | 4,500min-1 *3 | 4,500min-1 | 3,500min-1 | 2,500min-1 |
| Floor space | height:2,954mm / width:5,578.5mmm / depth:3,257.7mm | |||
The combination of bar capacity and motor is available from following patterns.
| Left Spindle motor | Right Spindle motor | |||
|---|---|---|---|---|
| Standard | φ65(A2-6) 18.5/15kW | φ65(A2-6) 18.5/15kW | ||
| op. | φ71(A2-6) 18.5/15kW | φ65(A2-6) 18.5/15kW | ||
| op. | φ71(A2-6) 18.5/15kW | φ71(A2-6) 18.5/15kW | ||
| op. | φ80(A2-8) 22/18.5kW | φ65(A2-6) 18.5/15kW | ||
| op. | φ80(A2-8) 22/18.5kW | φ65(A2-8) 18.5/15kW *1 | ||
| op. | φ80(A2-8) 18.5/15kW | φ71(A2-6) 15/11kW | ||
| op. | φ90(A2-8) 22/18.5kW *2 | φ65(A2-6) 18.5/15kW | ||
| op. | φ90(A2-8) 22/18.5kW *2 | φ65(A2-8) 18.5/15kW *1 | ||
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
