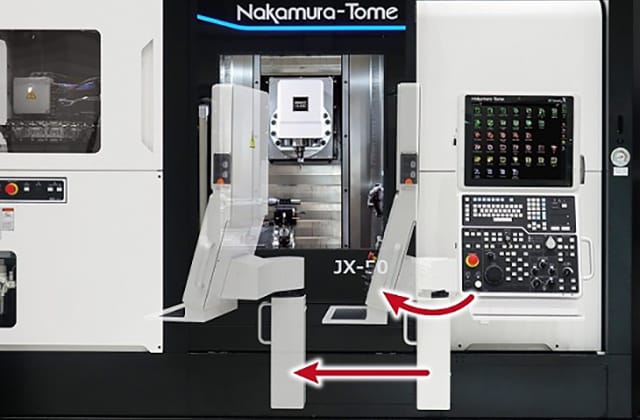

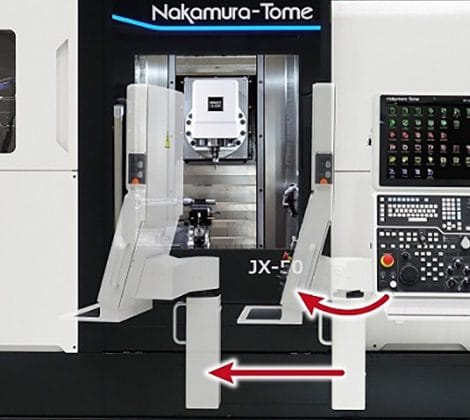

The Nakamura-Tome JX-50 is a compact ATC multi-tasking machine designed to deliver exceptional productivity, precision and flexibility within a minimal footprint. Combining turning, milling and simultaneous 5-axis machining in a single platform, the JX-50 enables manufacturers to complete complex components in one setup, reducing cycle times and improving overall efficiency.

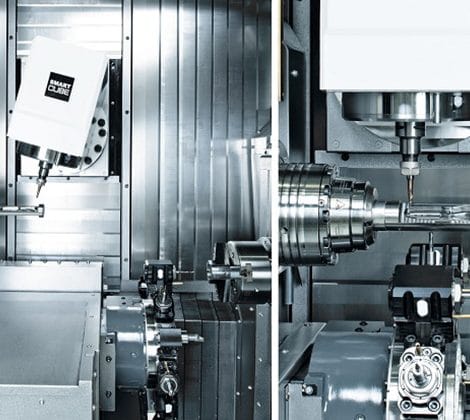

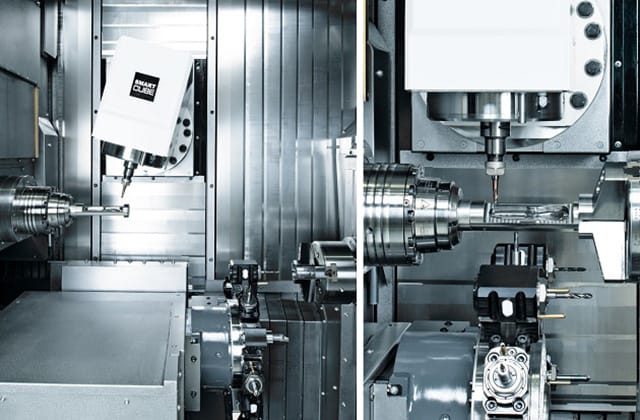

Equipped with Nakamura-Tome’s innovative NT Smart Cube tool spindle, twin opposed spindles and advanced automation capabilities, the JX-50 is ideal for high-mix, low-volume production and precision manufacturing environments where space is at a premium.
| φ42mm | ||
|---|---|---|
| Max. Turning Diameter | φ280mm(Tool spindle) / φ220mm(Lower turret) | |
| Max. Turning Length | 650mm | |
| Distance Between Spindles | max.900mm / min.220mm | |
| L/R Bar Capacity | φ42mm | |
| Chuck Size | 5″,6″ | |
| L/R Spindle Speed | 6,000min-1 | |
| L/R Spindle Drive Motor | 11kW / 7.5kW | |
| Floor space | height：2,250 / 2,530.5 (Indicator light standard)mm/width：4264.4mm/depth：2,378mm | |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
