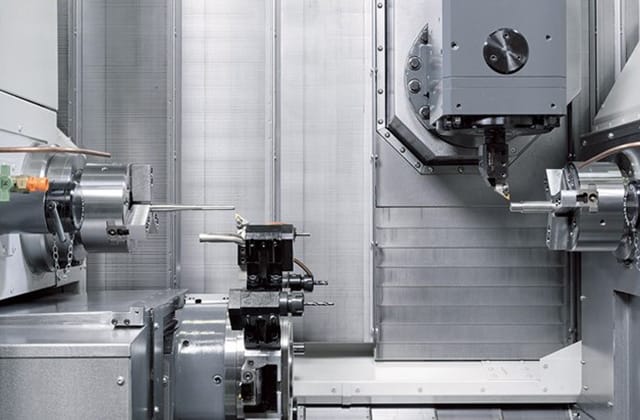

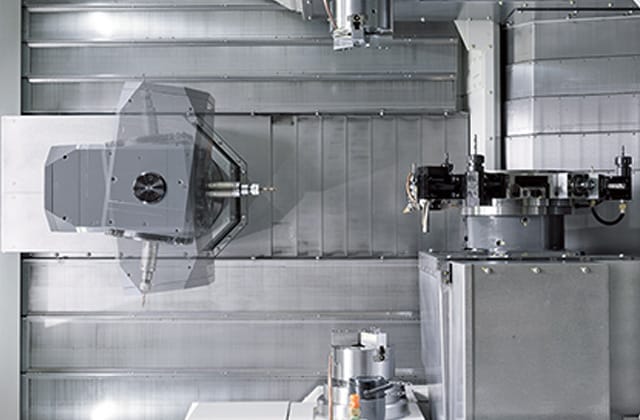

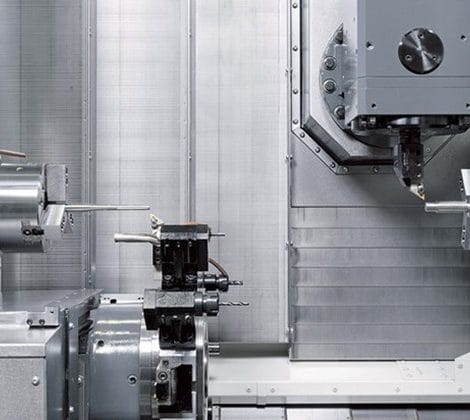

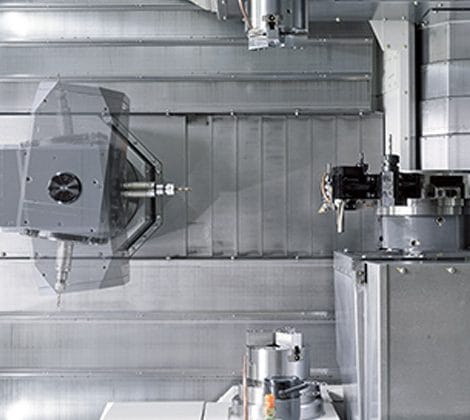

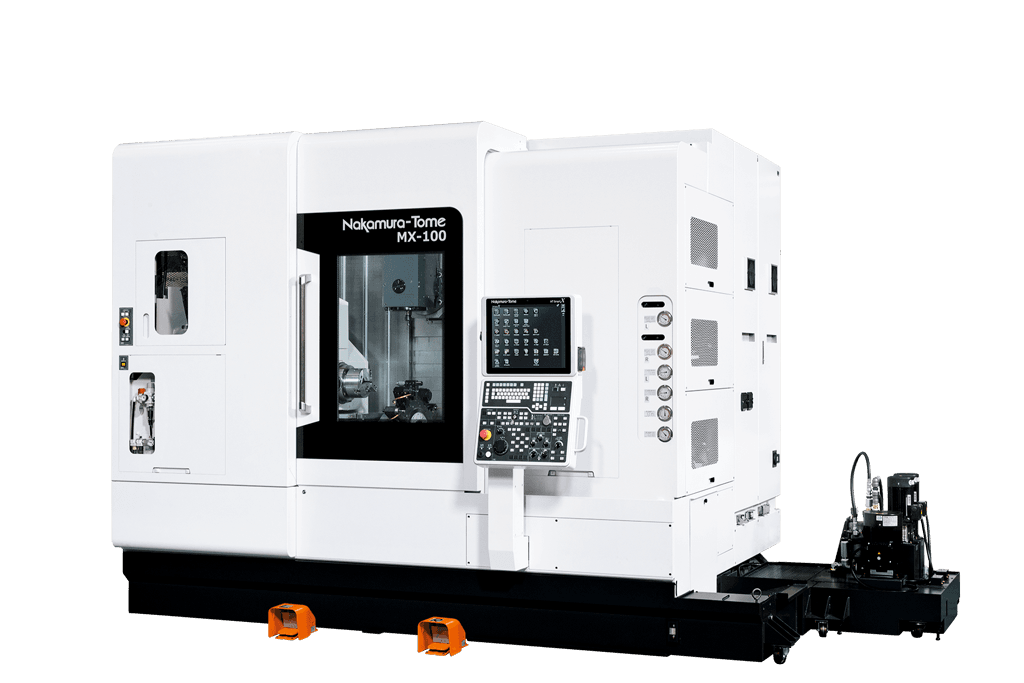

The Nakamura-Tome MX-100 is a compact multi-tasking turning centre designed to deliver maximum flexibility and productivity within a minimal footprint. Combining twin opposed spindles, a high-performance tool spindle and a lower milling turret, the MX-100 enables complex components to be completed in a single setup, reducing cycle times while maintaining exceptional accuracy. Ideal for high-mix production environments, the MX-100 offers the perfect balance of precision, performance and efficient use of factory floor space.
| φ51mm | φ65mm (op.) | |
|---|---|---|
| Max. turning diameter | 305mm | |
| Max. turning length | 834mm | |
| Distance between spindles | max.1,000mm/min.230mm | |
| Bar capacity(φ) | 51mm | 65mm (only L) |
| Chuck size | 6″,8″ | |
| Spindle speed | 6,000min-1 | 4,500min-1 |
| Left Spindle motor | 11/7.5kW | 15/11kW |
| Right Spindle motor | 11/7.5kW | – |
| Floor space | height:2,662mm / width:4,350mm / depth:2,795mm | |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
