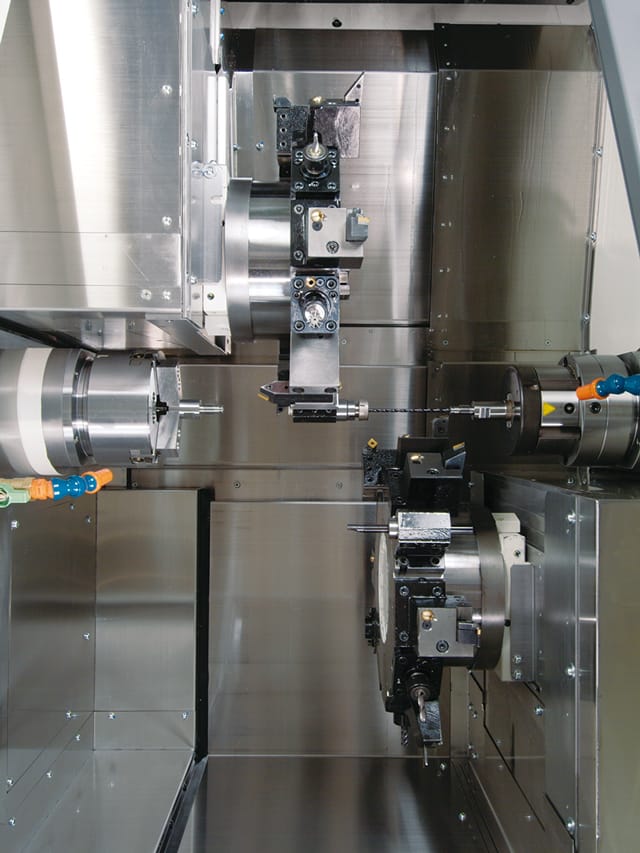

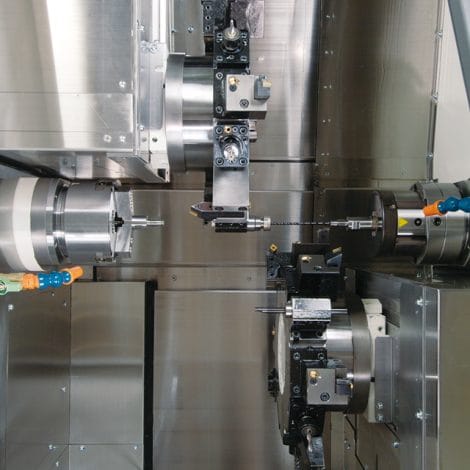

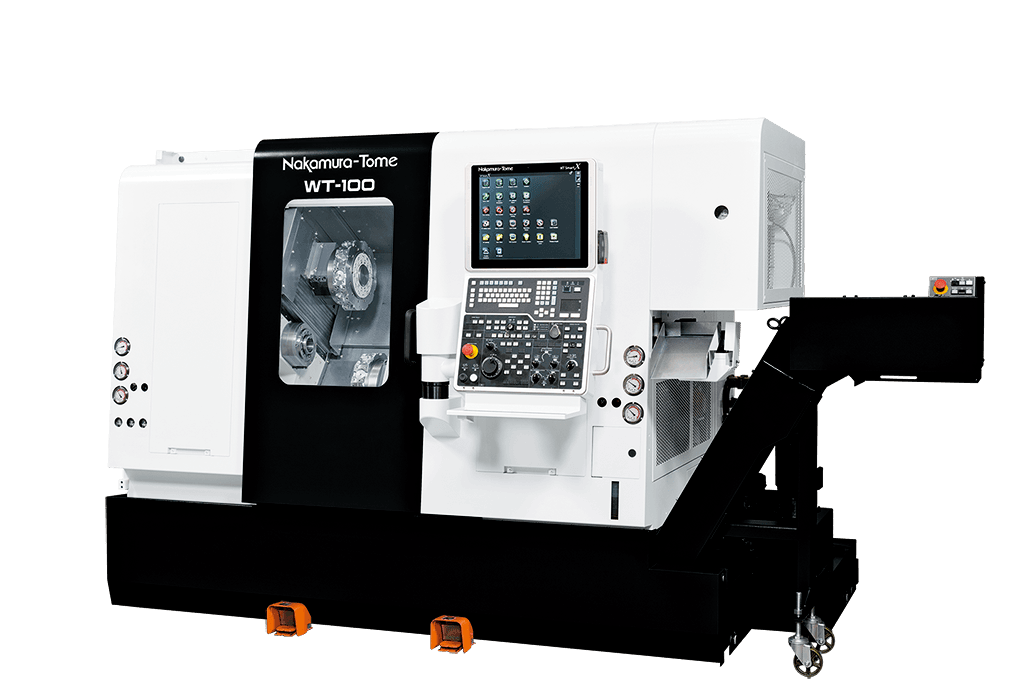

The Nakamura-Tome WT-100 is a compact turning centre designed to deliver exceptional machining performance while maximising floor space efficiency. Featuring twin opposed spindles, upper and lower turrets and simultaneous machining capabilities, the WT-100 enables balanced processing and reduced cycle times by completing multiple operations in a single setup. With high-powered spindles, driven tooling and up to 48 tool capacity, the WT-100 provides the flexibility, precision and productivity required for efficient small-part manufacturing.
| φ42mm | |
|---|---|
| Max. Turning Diameter | 190mm |
| Max. Turning Length | 503mm |
| Distance Between Spindles | max.735mm/min.210mm |
| Bar Capacity | 42mm |
| Chuck Size | 6″ |
| L/R Spindle Speed | 6,000min-1 |
| L Spindle Drive Motor | 11/7.5kW |
| R Spindle Drive Motor | 11/7.5kW |
| Floor space | height:1,940mm / width:2,630mm / depth:1,923mm |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
