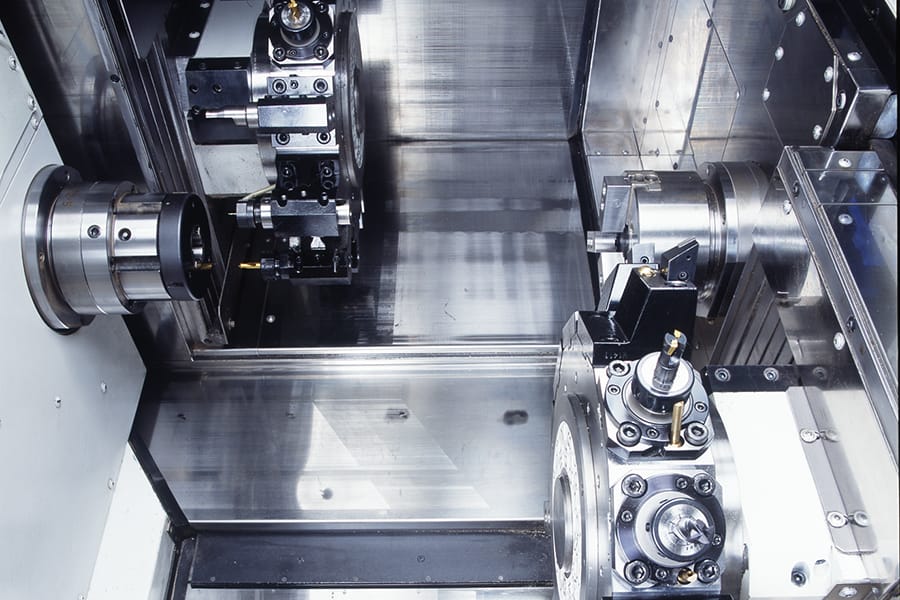

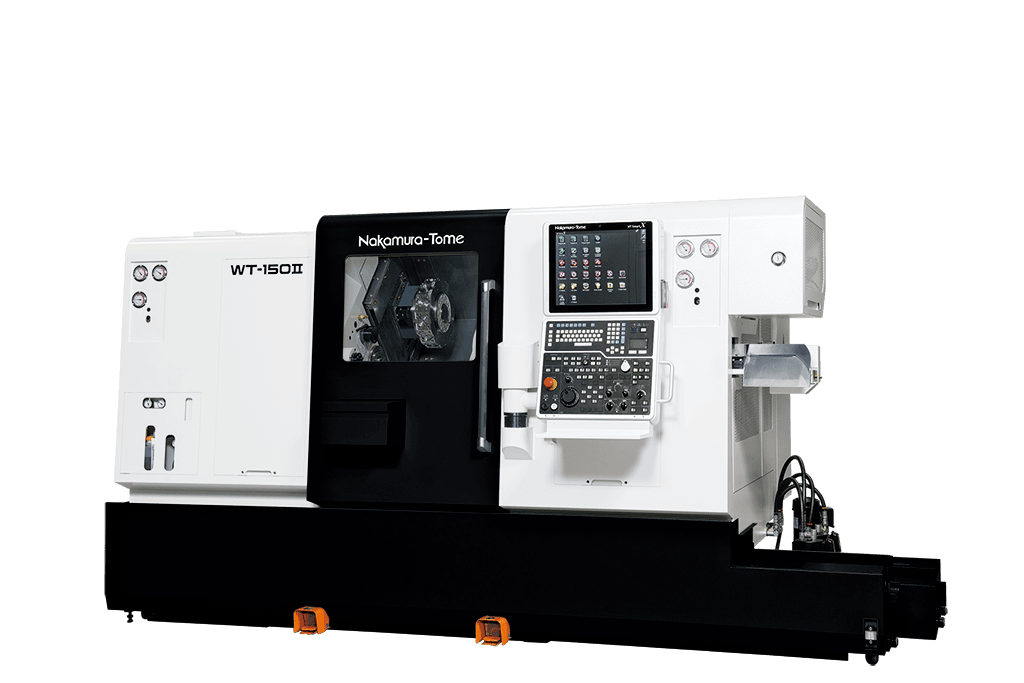

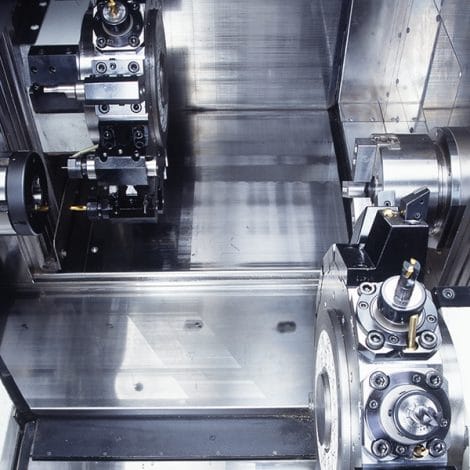

The Nakamura-Tome WT-150 is a high-performance turning centre designed to deliver exceptional productivity, flexibility and precision across a wide range of manufacturing applications. Featuring twin opposed spindles, upper and lower turrets and simultaneous machining capabilities, the WT-150 enables multiple operations to be completed in a single setup, reducing cycle times and improving overall efficiency. With high-rigidity construction, driven tooling and a compact design, the WT-150 provides the reliability and versatility required for high-mix production and demanding machining environments.
| φ51mm | φ65mm(op.) | |
|---|---|---|
| Max. Turning Diameter | 190mm | |
| Max. Turning Length | 515mm | |
| Distance Between Spindles | max.800mm / min.200mm | |
| Bar Capacity | 51mm | 65mm(Only L) |
| Chuck Size | 6″,(8″※1) | |
| L/R Spindle Speed | 5,000min-1 | 4,500min-1 |
| L Spindle Drive Motor | 15/11kW | |
| R Spindle Drive Motor | 11/7.5kW | – |
| Floor space | height:1,858.5mm / width:3,675mm / depth:2,258.2mm | height:1,860.2mm / width:3,675mm / depth:2,263.9mm |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
