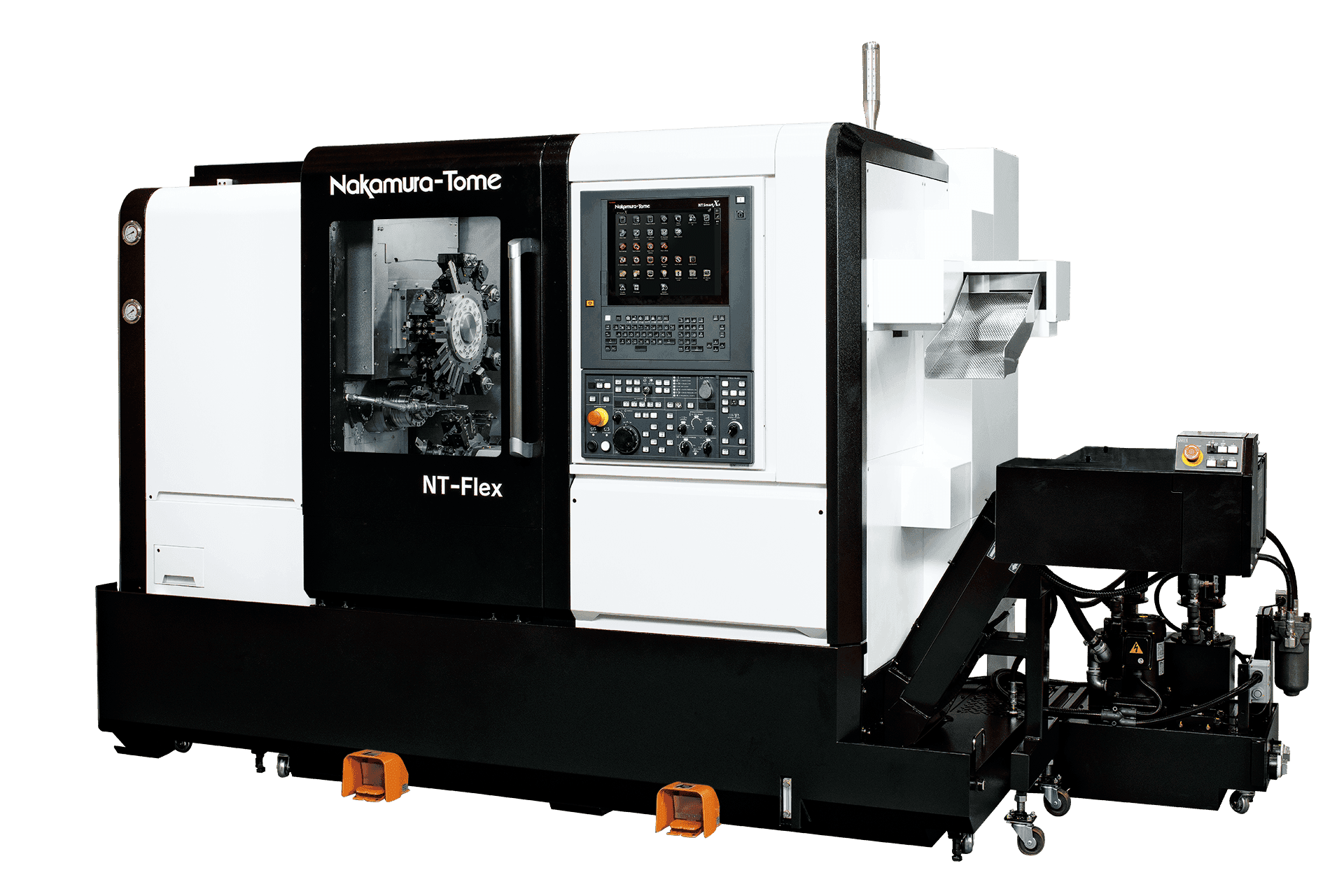

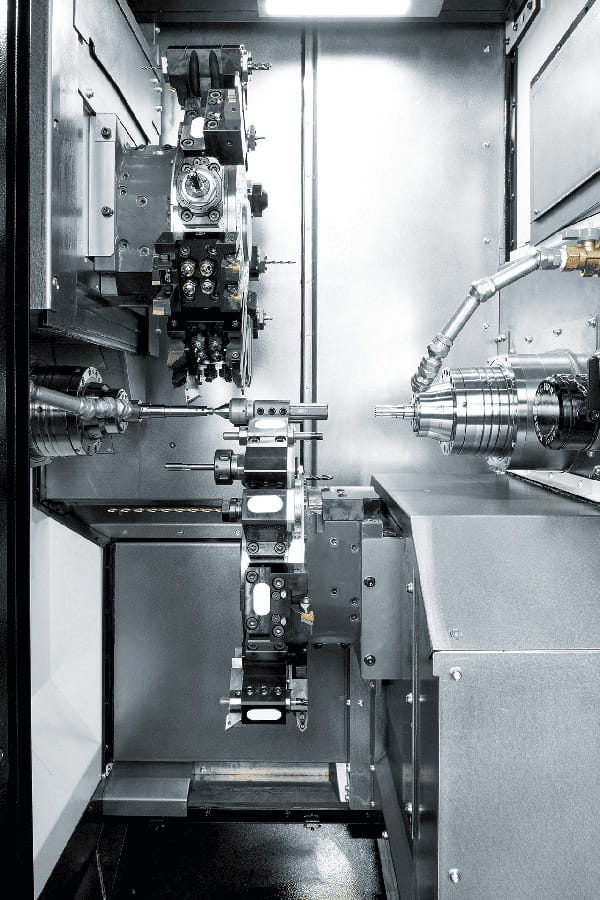

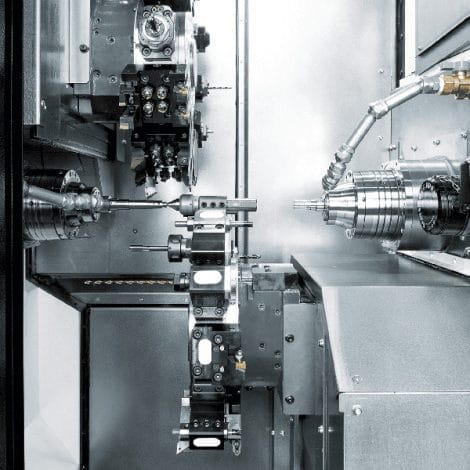

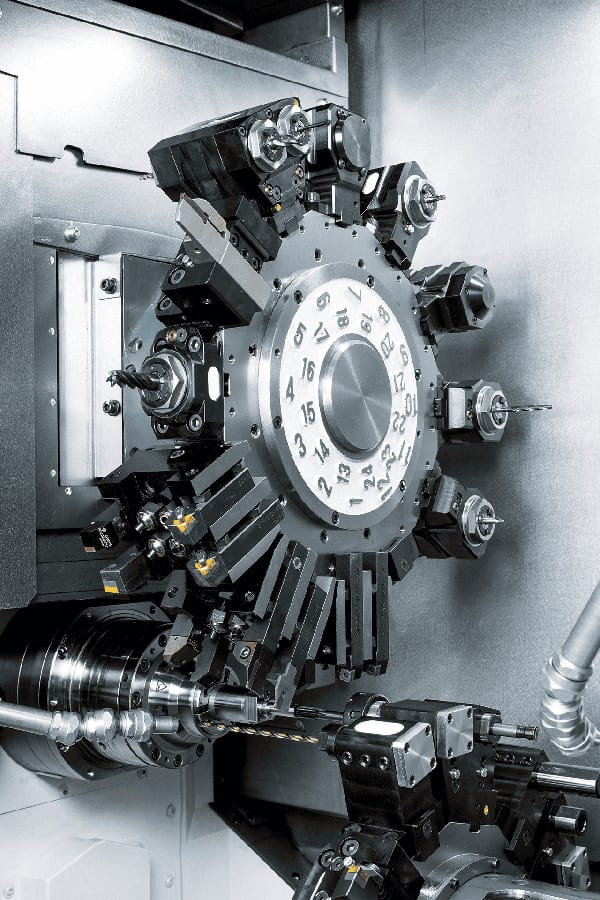

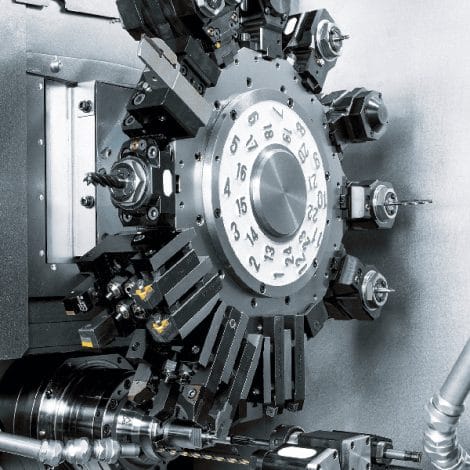

The Nakamura-Tome NT-Flex is a compact turning centre designed to deliver exceptional flexibility and productivity while maximising factory floor space. Featuring twin opposed spindles, twin turrets and standard Y-axis and milling capability on the upper turret, the NT-Flex enables turning, milling, threading and other machining operations to be completed in a single setup. With a slim machine footprint, ChronoCut technology and the ability to accommodate a wide range of components, the NT-Flex provides an efficient solution for manufacturers seeking versatility, reduced cycle times and high-quality production. (nakamura-tome.com)
| φ32mm | φ38mm(op.) | |
|---|---|---|
| Max. Turning Diameter | φ150mm | |
| Max. Turning Length | 405mm | |
| Distance Between Spindles | max.655mm/min.200mm | |
| Bar Capacity | 32mm | 38mm |
| Chuck Size | 5″ | |
| L/R Spindle Speed | 8,000min-1 | |
| L/R Spindle Drive Motor | 7.5/5.5kW | |
| Floor space | height:1,965mm/width:3,500mm/depth:1,380mm | |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
