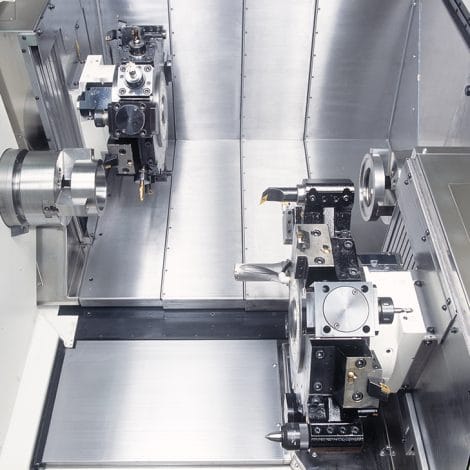

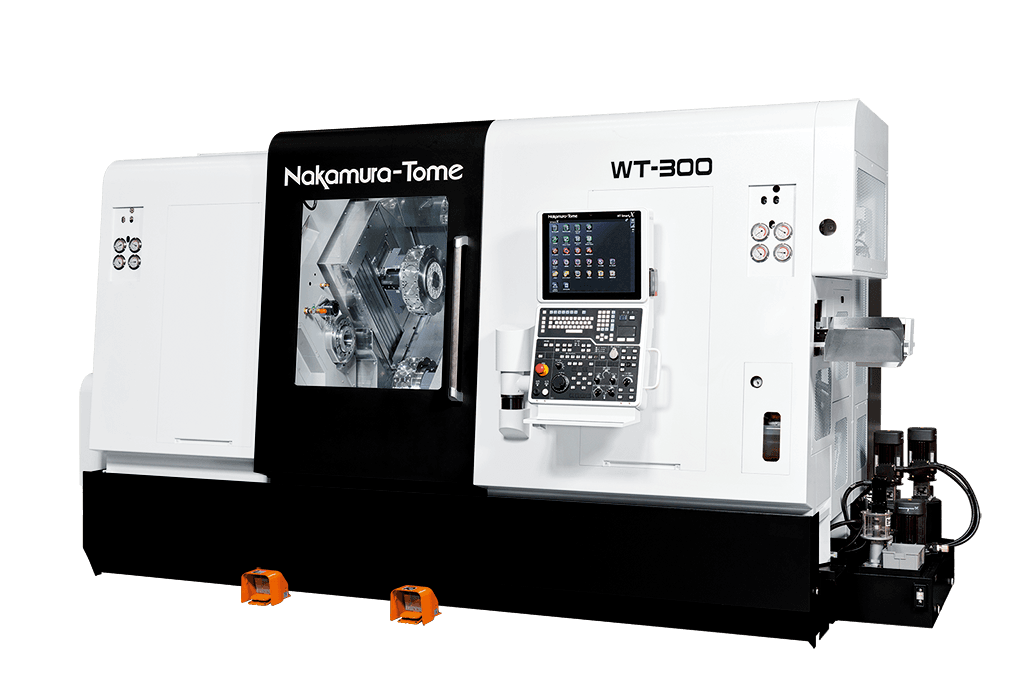

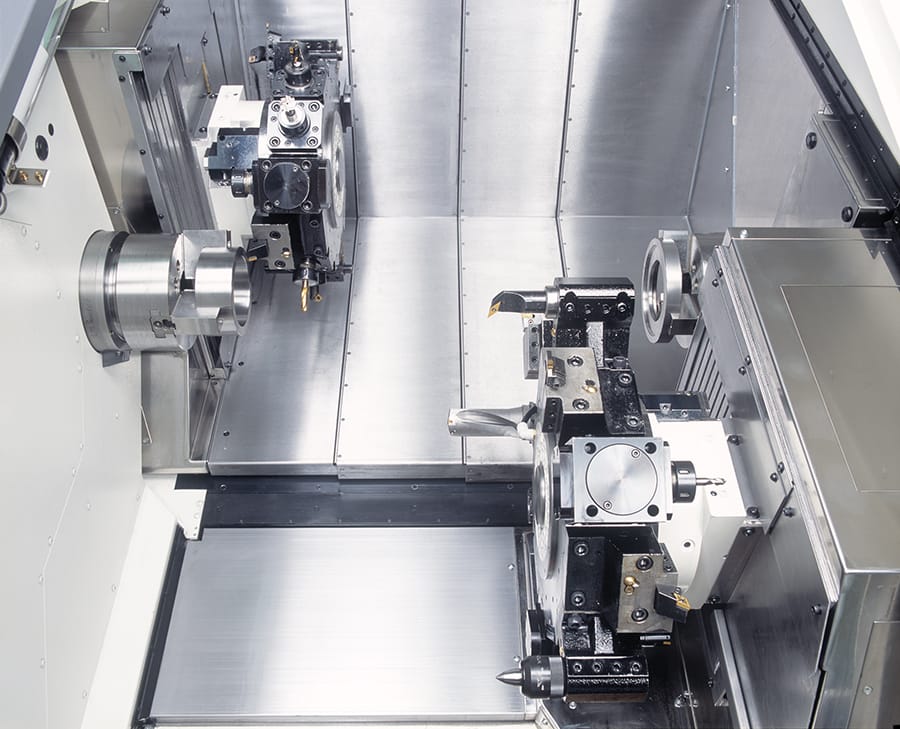

The Nakamura-Tome WT-300 is a high-rigidity turning centre designed to deliver exceptional productivity, precision and flexibility for demanding manufacturing applications. Featuring a twin opposed spindle configuration, upper and lower turrets and simultaneous machining capabilities, the WT-300 enables balanced processing between both spindles to reduce cycle times and improve efficiency. With a rigid box-way slide structure across all axes, powerful spindle performance and up to 48 available tools, the WT-300 provides outstanding machining stability and versatility for complex component production.
| φ65mm | φ71mm | φ80mm(op.) | φ102mm(op.) | |
|---|---|---|---|---|
| Max. Turning Diameter (Upper) | 270mm | 199mm | ||
| Max. Turning Diameter (Lower) | 270mm |
270mm(L:φ102/R:Φ65) 229mm(L:φ102/R:Φ102) | ||
| Max. Turning Length | 780mm | |||
| Distance Between Spindles | max.1,100mm / min.250mm | |||
| L Bar Capacity | φ65mm | φ71mm | φ80mm | φ102mm |
| R Bar Capacity | φ65mm | – | – | φ102mm |
| Chuck Size | 8″ | (10″*1),12″ | ||
| L Spindle Speed | 4,500min-1 | 4,000min-1 | 3,500min-1 | 2,500min-1 |
| L Spindle Drive Motor | 15/11kW, 18.5/15kW(op.), 22/18.5kW(op.) | |||
| R Spindle Speed | 4,500min-1 | – | – | 2,500min-1 |
| R Spindle Drive Motor | 15/11kW, 18.5/15kW(op.) | – | – | 15/11kW, 18.5/15kW(op.) |
| Floor space | height:2,276mm | |||
| width:4,230mm | width:4,275mm | width:4,345mm | ||
| depth:2,487mm | ||||
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
