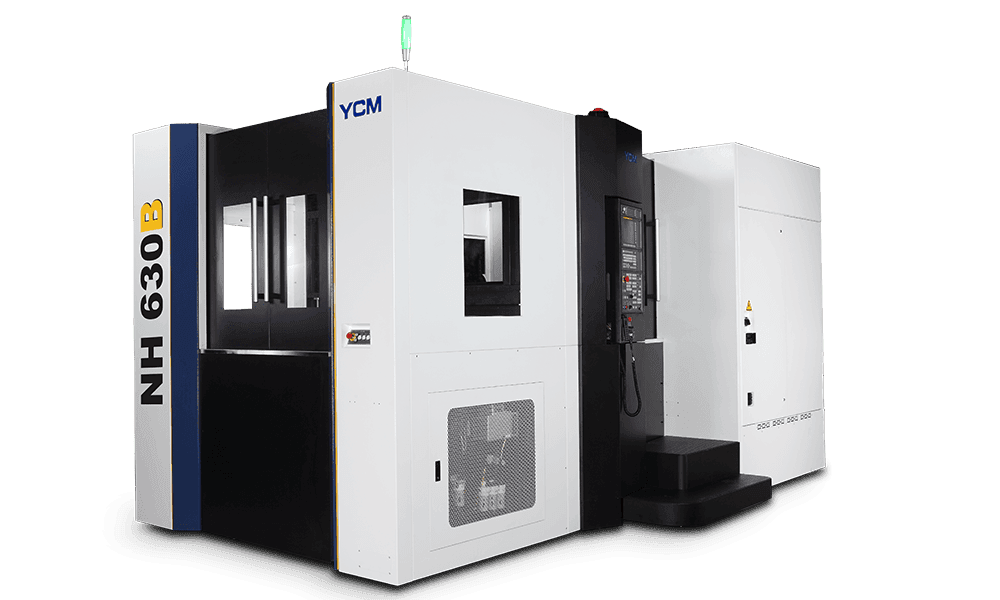

Introducing the brand new NH 630B High Precision Horizontal Machining Centre. The NH 630B incorporates the state-of-the-art dual drive technology along with the utmost rigid structural design to satisfy high accuracy applications. The machine can perform multi-face machining applications to reduce fixture clamping and machining time. The NH 630B is specially designed to meet high precision and high performance machining demands.
Spindle Speed (Opt.)
10,000 (8,000) rpm
Spindle Power (Opt.)
45 (55) kW
Spindle Taper (Opt.)
BBT50 (CAT)
X-axis Travel
1,050 mm
Y-axis Travel
850 mm
Z-axis Travel
850 mm
Distance Between Spindle Center and Table Top
100~950 mm
Distance Between Spindle Nose and Table Center
150~1,000 mm
Table Size
630 x 630 mm
Max. Load on Table
1,200 kg
Max. Work Dimensions
ø1,100 x 1,000 mm
Height from Table Top to Floor
1,325 mm
Table Indexing Angle (Opt.)
1° (0.001°)
APC Time
12 sec
X/Y/Z Rapid Feedrate
60 / 60 / 60 (40 / 40 / 40) m/min
Cutting Feedrate
1~30,000(1~20,000) mm/min
Tool Magazine Capacity (Opt.)
40 ( 60 /120 ) T
Tool Weight
25 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
40T/60T/120T : ø125 x 500 (ø250 x 500) mm
Machine Weight
24,000~25,500 kg
