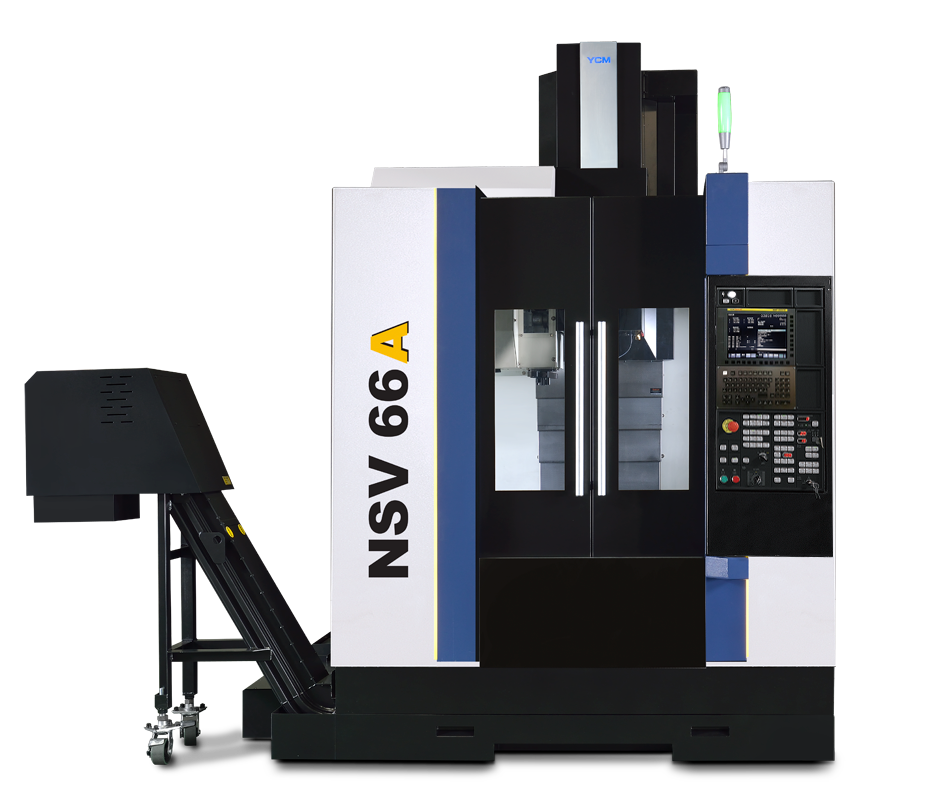

The NSV series ultra high performance vertical machining centre is specially designed for high speed and high efficiency machining applications. The NSV series is built with a large delta machine column and wide base to ensure the highest stability during high speed movement.
Spindle Speed (Opt.)
12,000 (15,000) rpm
Spindle Power (Opt.)
25(25) kW
Spindle Taper (Opt.)
BBT40
X-axis Travel
660 mm
Y-axis Travel
510 mm
Z-axis Travel
560 mm
Distance Between Spindle Nose & Table Top
100~660 mm
Table Size
840 x 560 mm
No. T-slot x Size x Pitch
5 x 18 x 100 mm
Max. Load on Table
500 kg
X/Y/Z Rapid Feedrate
50 / 50 / 48 m/min.
Cutting Feedrate
1~20,000 mm/min.
Tool Magazine Capacity (Opt.)
30 T
Tool Weight
6 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø76 x 300 (ø125 x 300) mm
Machine Weight
6,500 kg
