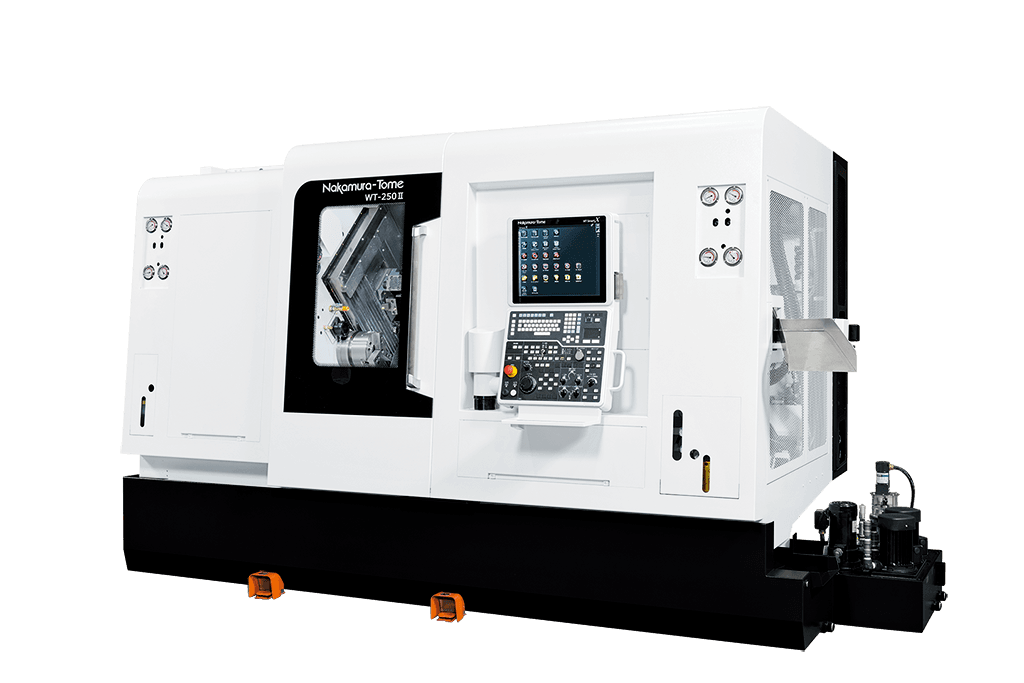

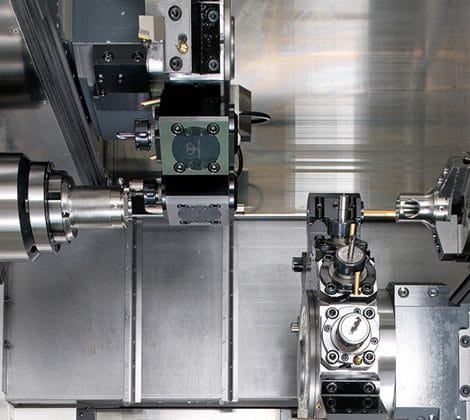

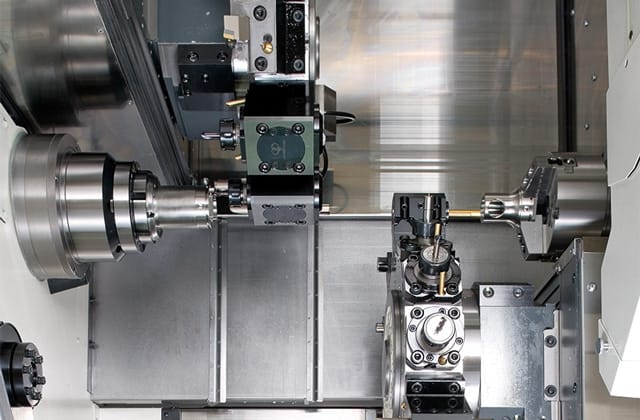

The Nakamura-Tome WT-250 is a versatile turning centre designed for efficient machining of complex components across a wide range of manufacturing applications. Featuring twin opposed spindles, upper and lower turrets and simultaneous machining capabilities, the WT-250 enables balanced processing between both spindles to reduce cycle times and improve productivity. With high cutting power, increased tool capacity and a rigid machine structure, the WT-250 delivers the performance, accuracy and flexibility required for high-mix, variable lot-size production.
| φ51mm | φ65mm | |
|---|---|---|
| Max. Turning Diameter | 250mm | |
| Max. Turning Length | 555mm | |
| Distance Between Spindles | max.885mm/min.265mm(L:Φ65/R:Φ51) max.870mm/min.250mm(L:Φ65/R:Φ65) | |
| L Bar Capacity | – | 65mm |
| R Bar Capacity | 51mm | 65mm(op.) |
| Chuck Size | 8″ / 6″ | |
| L Spindle Speed | – | 4,500min-1 |
| L Spindle Drive Motor | – | 18.5/15kW 35/26/22kW(op.) Wide range 15/11kW(op.) |
| R Spindle Speed | 5,000min-1 | 4,500min-1(op.) |
| R Spindle Drive Motor | 11/7.5kW, 15/11kW(op.), 18.5/15kW(op.) | |
| Floor space | height:2,225mm / width:4,059mm / depth:2,314mm | |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
