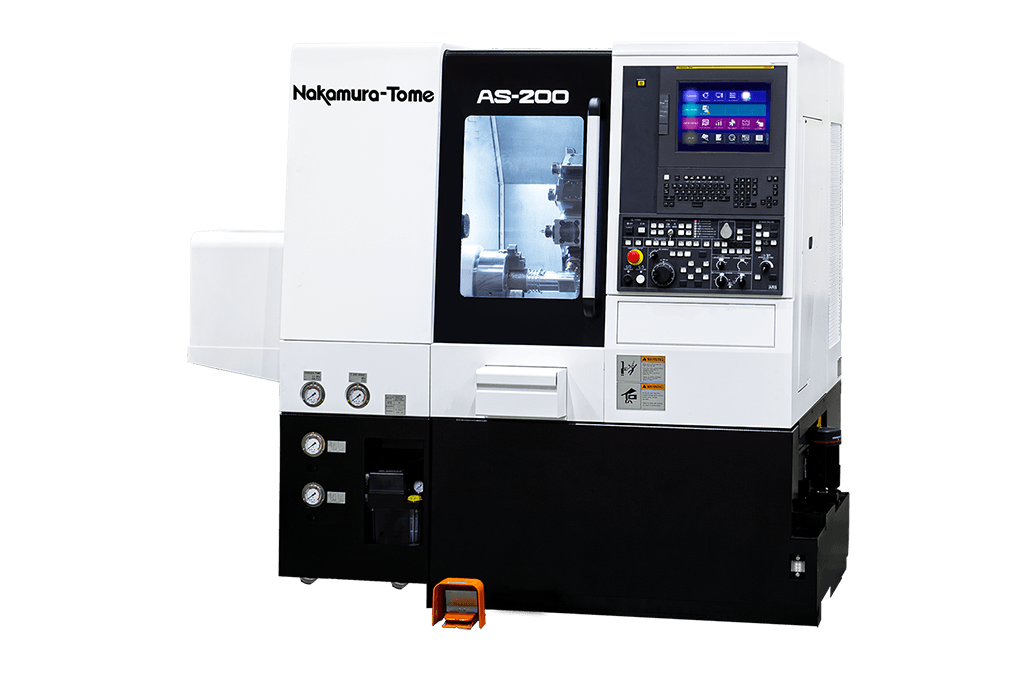

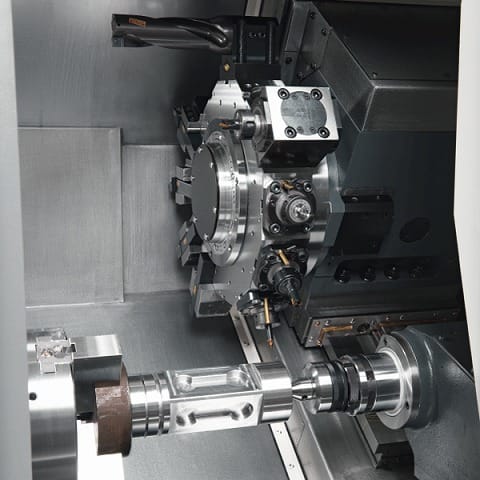

The Nakamura-Tome AS-200 is a compact turning centre designed to provide exceptional flexibility by combining turning, milling and drilling operations within a single machine. Featuring Y-axis capability and milling functions as standard, the AS-200 enables manufacturers to complete complex components in fewer setups, reducing cycle times and improving overall productivity. With a rigid construction, high-speed indexing and advanced control technology, the AS-200 delivers outstanding precision, reliability and efficiency for a wide range of machining applications.
| φ65mm | φ71mm | |
|---|---|---|
| Max. Turning Diameter(12st) | 290mm | |
| Max. Turning Diameter(op.15st) | 280mm | |
| Max. Turning Length | 300mm | |
| Distance Between Centers(op.) | 427mm | |
| Bar Capacity | 65mm | 71mm |
| Chuck Size | (6″*1),8″ | |
| Spindle Speed | 4,500mm-1 | |
| Spindle Drive Motor | 15/11kW | |
| Floor space | height:1,852mm / width:1,655mm / depth:1,665mm | |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
