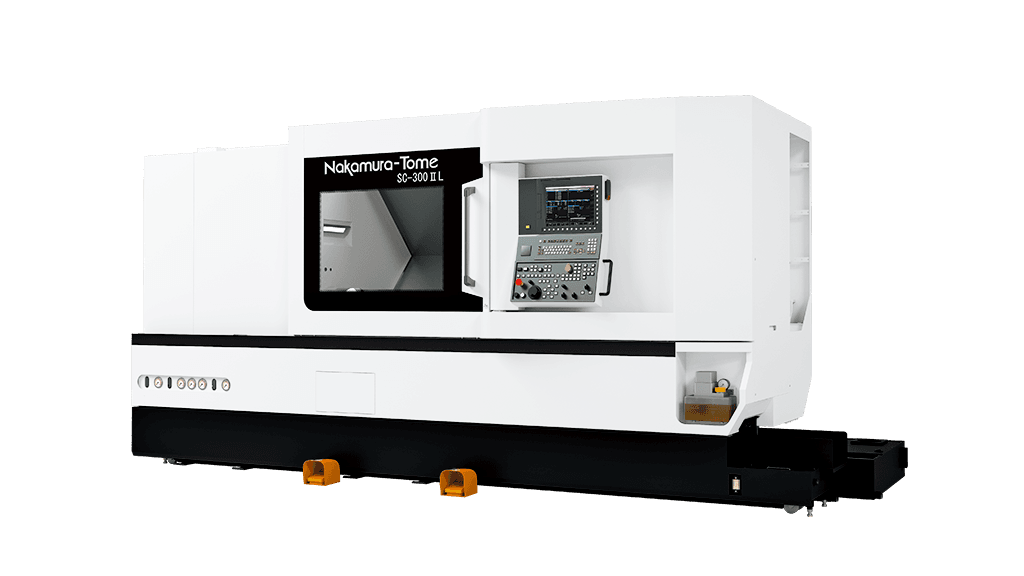

The Nakamura-Tome SC-300IIL is a high-rigidity turning centre designed for manufacturers requiring increased capacity for longer workpieces while maintaining exceptional precision and productivity. Featuring an extended long-bed design, standard Y-axis and milling capability, and a rigid box-way slide structure across all axes, the SC-300IIL enables complete machining of larger components with fewer setups. With a large machining envelope, powerful milling capability and advanced thermal compensation technology, the SC-300IIL delivers the stability, flexibility and performance required for demanding manufacturing applications.
| φ71mm | φ89mm(op.) | |
|---|---|---|
| Max. Turning Diameter | 360mm | |
| Max. Turning Length(Right Spindle Specs.) | 1,135mm | |
| Max. Turning Length(Tailstock) | 1,100mm | |
| Distance Between Spindles(op.) | 1,310mm | |
| Distance Between Centers(op.) | 1,213.5mm | |
| Bar Capacity | 71mm | 89mm |
| Chuck Size | 10″,12″ | |
| L Spindle Speed | 3,500min-1 | |
| L Spindle Drive Motor | 22/18.5kW | |
| Milling Spindle Speed | 6,000min-1 | |
| Milling Drive Motor | 7.5/3.7kW | |
| Floor space | height:2,300mm / width:4,902mm / depth:2,130mm | |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
