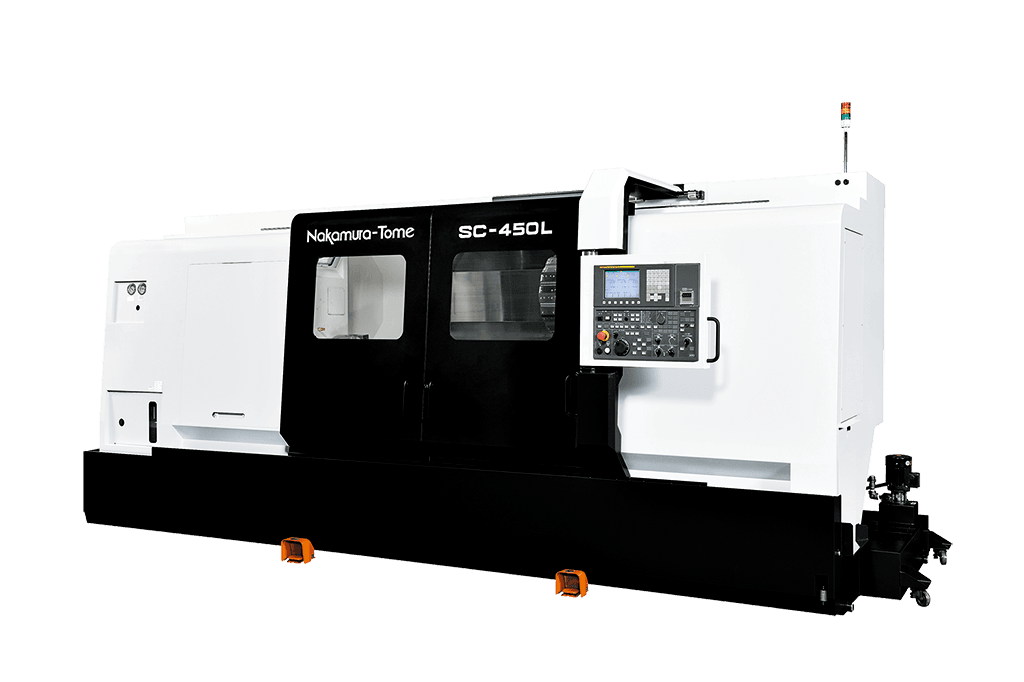

The Nakamura-Tome SC-450L is a turning centre designed for manufacturers requiring exceptional rigidity, power and capacity when machining large and complex components. Featuring a long-bed design, high-rigidity box-way slides and a powerful 30/22kW spindle motor, the SC-450L delivers outstanding cutting performance and machining stability. With optional Y-axis and milling capability, extended turning capacity and advanced control technology, the SC-450L provides the flexibility and precision required for demanding production environments.
| φ81mm | φ89mm(op.) | |
|---|---|---|
| Max. Turning Diameter | 480mm | |
| Max. Turning Length | 1,520mm | |
| Distance Between Centers(op.) | 1,752mm | |
| Bar Capacity | 81mm | 89mm |
| Chuck Size | 12″,(15″~*1) | |
| Spindle Speed | 2,500min-1 | |
| Spindle Drive Motor | 30/22kW | |
| Milling Spindle Speed(op.) | 3,600min-1 | |
| Milling Drive Motor(op.) | 5.5/3.7kW | |
| Floor space | height:2,184.9mm/2,531.3mm(Y-axis)(op.) | |
| width:5,050mm | ||
| depth:2,164.8mm | ||

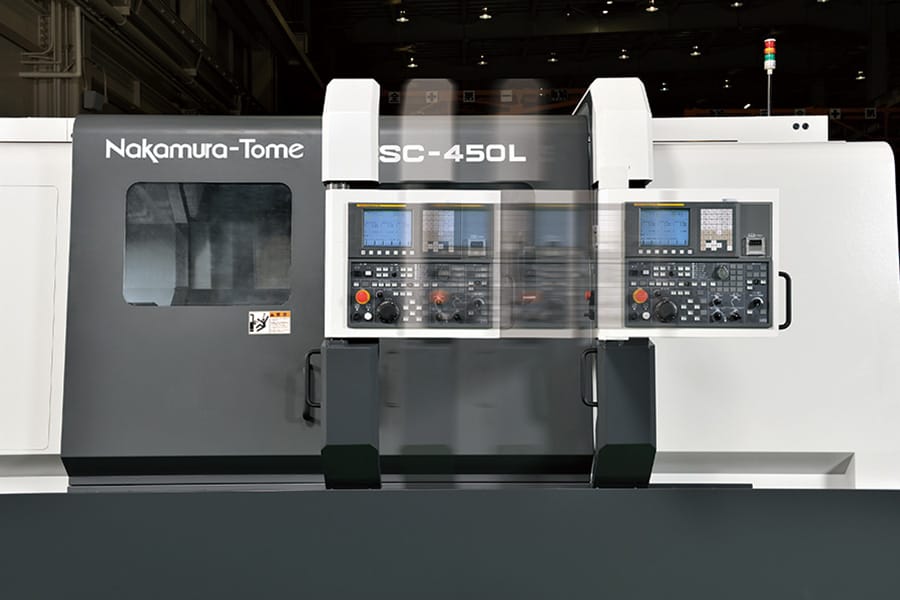

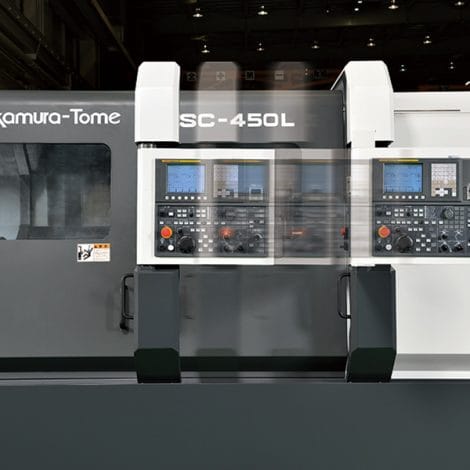

Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
