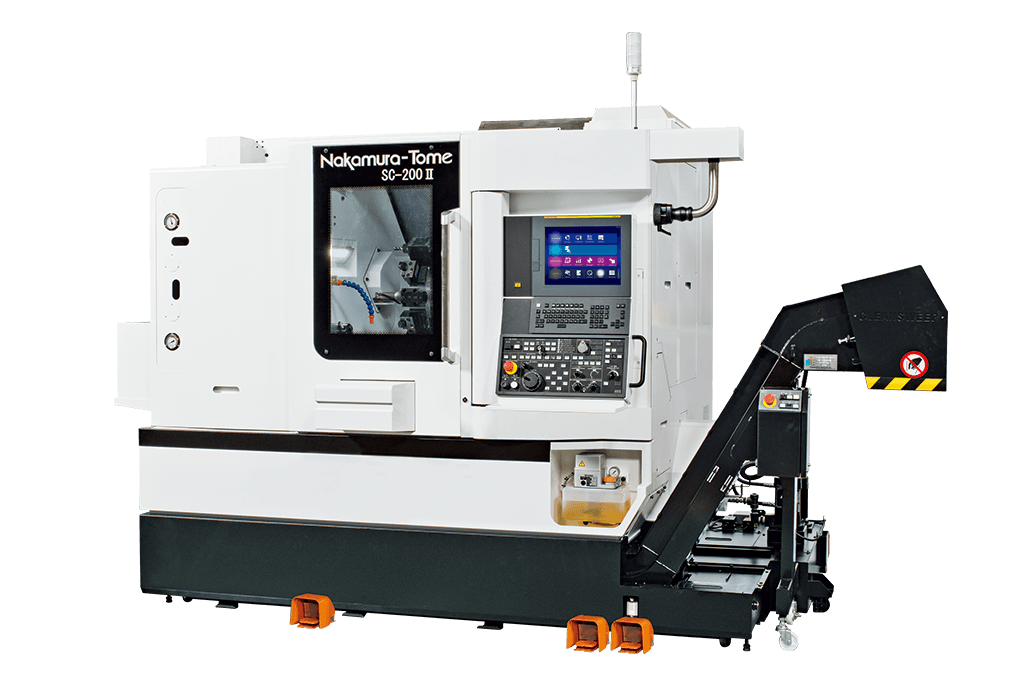

The Nakamura-Tome SC-200II is a high-performance turning centre designed to deliver powerful and stable machining across a wide range of applications. Featuring a rigid slant-bed construction, Y-axis capability and integrated milling functions, the SC-200 enables manufacturers to complete complex components in fewer setups while improving efficiency and accuracy. With a large machining envelope, high-powered spindle performance and advanced thermal compensation technology, the SC-200 provides the reliability and versatility required for demanding production environments. (nakamura-tome.com)
| Φ65mm | φ71mm(op.) | |
|---|---|---|
| Max. turning diameter 12st | 390mm | |
| Max. turning diameter 16st(op.) | 340mm* | |
| Max. turning length | 317.8mm | |
| Distance between spindles | max.510mm/min.205mm | |
| Bar capacity | φ65mm | φ71mm |
| Chuck size | 8″ | 10″ |
| L Spindle speed | 4,500min-1 | 4,500min-1 |
| L Spindle motor | 15/11kW, 18.5/15kW(op.) | |
| Floor space | height:2,225mm(Maximum height of moving part) / width:3,195mm / depth:1,967mm | |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
