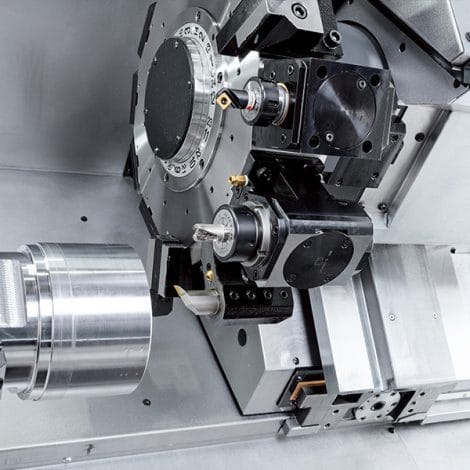

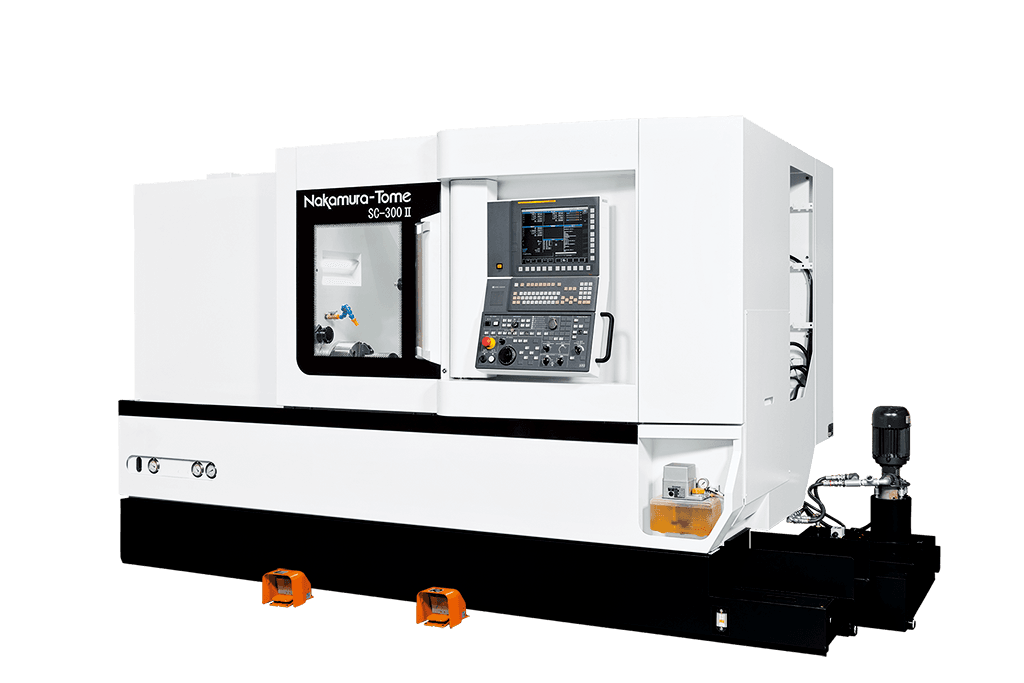

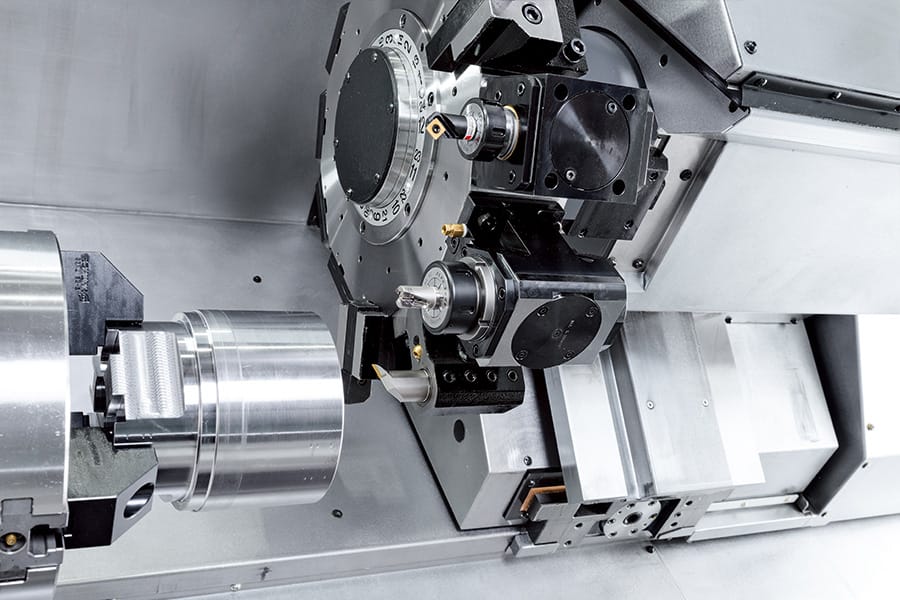

The Nakamura-Tome SC-300II is a high-performance turning centre designed to provide outstanding machining capability for larger and more complex components. Featuring standard Y-axis and milling capability, high-rigidity box-way slide construction and powerful spindle performance, the SC-300II enables complete machining in fewer setups while maintaining exceptional accuracy and stability. With a large machining envelope, advanced thermal compensation technology and flexible tooling options, the SC-300II delivers the reliability, versatility and productivity required for demanding manufacturing applications.
| φ71mm | φ89mm(op.) | |
|---|---|---|
| Max. Turning Diameter | 360mm | |
| Max. Turning Length(Right Spindle Specs.) | 635mm | |
| Max. Turning Length(Tailstock) | 600mm | |
| Distance Between Spindles(op.) | 910mm | |
| Distance Between Centers(op.) | 713.5mm | |
| Bar Capacity | 71mm | 89mm |
| Chuck Size | 10″,12″ | |
| L Spindle Speed | 3,500min-1 | |
| L Spindle Drive Motor | 22/18.5kW | |
| Milling Spindle Speed | 6,000min-1 | |
| Milling Drive Motor | 7.5/3.7kW | |
| Floor space | height:2,300mm / width:3,996mm / depth:2,130mm | |

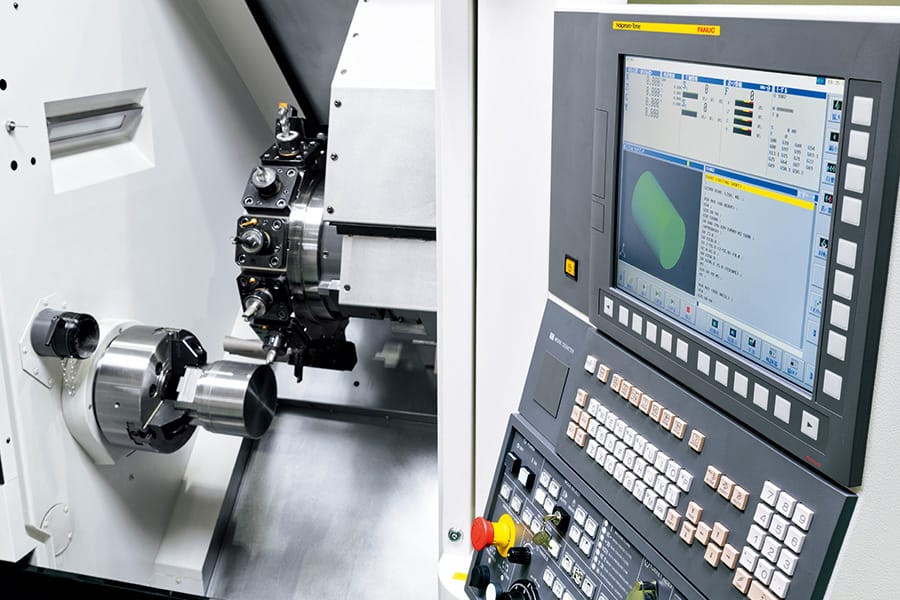

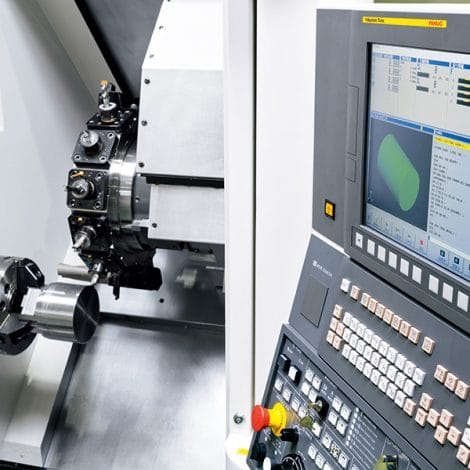

Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
