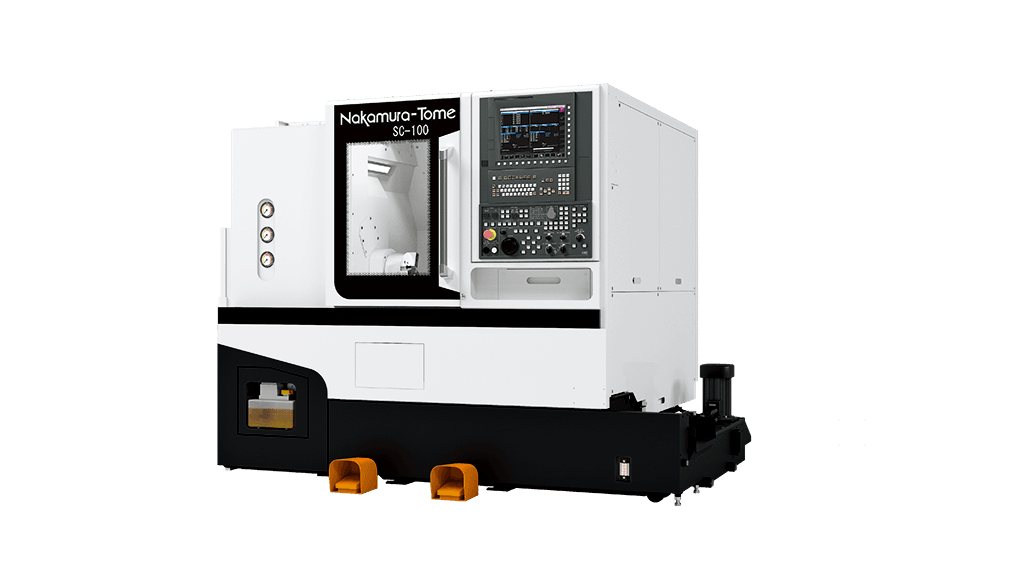

The Nakamura-Tome SC-100 is a compact turning centre designed to deliver high-performance machining within a space-saving footprint. Featuring standard Y-axis and milling capability, the SC-100 enables manufacturers to complete turning and milling operations in a single setup, reducing cycle times and improving overall efficiency. With a rigid machine structure, high-speed driven tooling and advanced thermal compensation technology, the SC-100 provides excellent accuracy, reliability and versatility for a wide range of manufacturing applications.
| φ51mm | |
|---|---|
| Max. Turning Diameter | 230mm |
| Max. Turning Length | 400mm(Standard,Sub-spindle)/300mm(Tailstock) |
| Distance Between Spindles(op.) | 600mm |

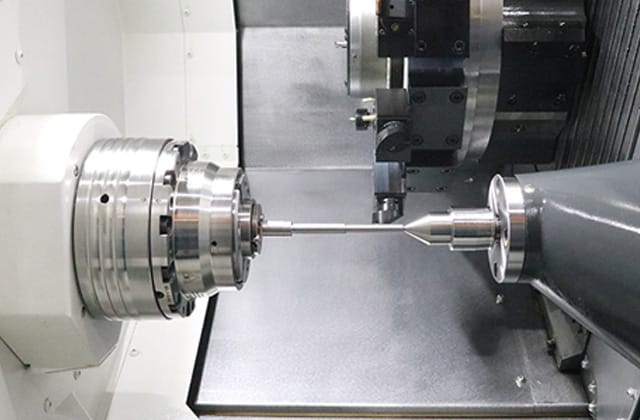

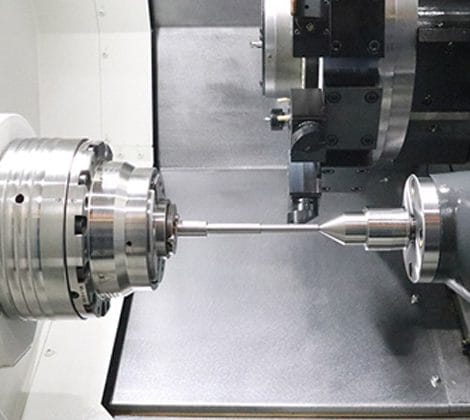

| Distance Between Centers(op.) | 430mm |
| Bar Capacity | 51mm |

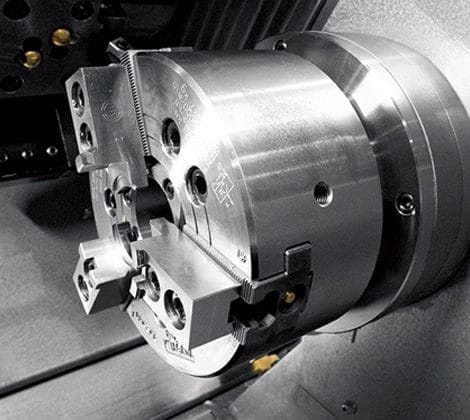

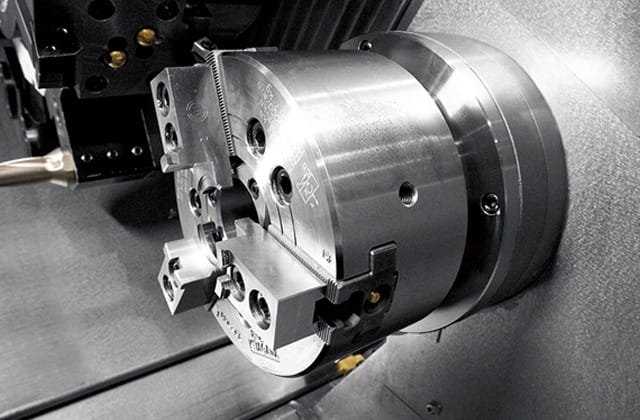

| Chuck Size | 6″ |
| L Spindle Speed | 5,000min-1 |
| L Spindle Drive Motor | 11/7.5kW |
| R Spindle Speed(op.) | 6,000min-1 |
| R Spindle Drive Motor(op.) | 7.5/5.5kW |
| Floor space | height:1,780mm |
| width:2,523.6mm(Standard, Tail) / width:2,933.6mm(MATA-BEI) | |
| depth:1,825mm |
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
