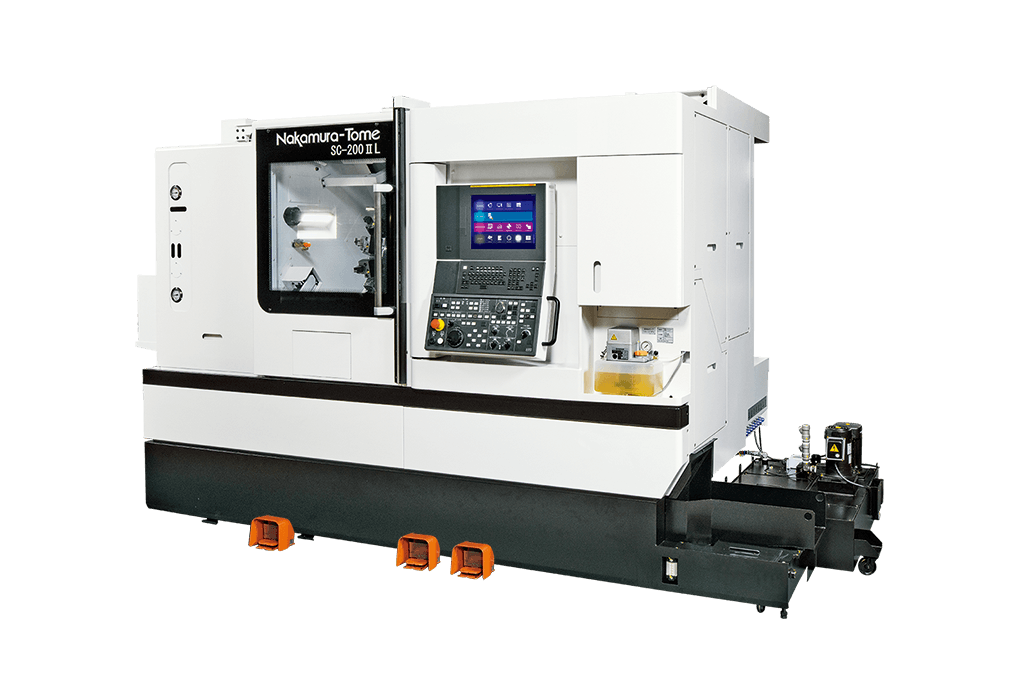

The Nakamura-Tome SC-200IIL is a high-rigidity turning centre designed for manufacturers requiring increased machining capacity for longer workpieces. Building on the SC-200II platform, the SC-200IIL features an extended bed design with increased distance between centres, allowing the machine to handle longer components while maintaining exceptional rigidity and accuracy. With Y-axis capability, integrated milling functions and advanced thermal compensation technology, the SC-200IIL enables complete machining in fewer setups, improving productivity and process efficiency.
| Φ65mm | φ71mm(op.) | φ51mm(op.) | |
|---|---|---|---|
| Max. turning diameter | 390mm | ||
| Max. turning length | 522.8mm | ||
| Distance between spindles | 800mm | ||
| Distance between centers | max.715mm/min.245mm | ||
| Bar capacity | 65mm | 71mm | 51mm |
| Chuck size | 8″ | 10″ | 6″/ 8″ |
| L spindle speed | 4,500min-1 | 4,500min-1 | – |
| L spindle motor | 15/11kW, 18.5/15kW(op.) | – | |
| R sub-spindle speed (op.) | – | – | 5000min-1 |
| R sub-spindle motor (op.) | – | – | 15/11kW |
| Milling spindle speed | 6,000min-1 | ||
| Milling speed | 5.5/3.7kW | ||
| Floor space | height:2,225mm(Maximum height of moving part) / width:3,787.5mm / depth:1,967mm | ||
Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
