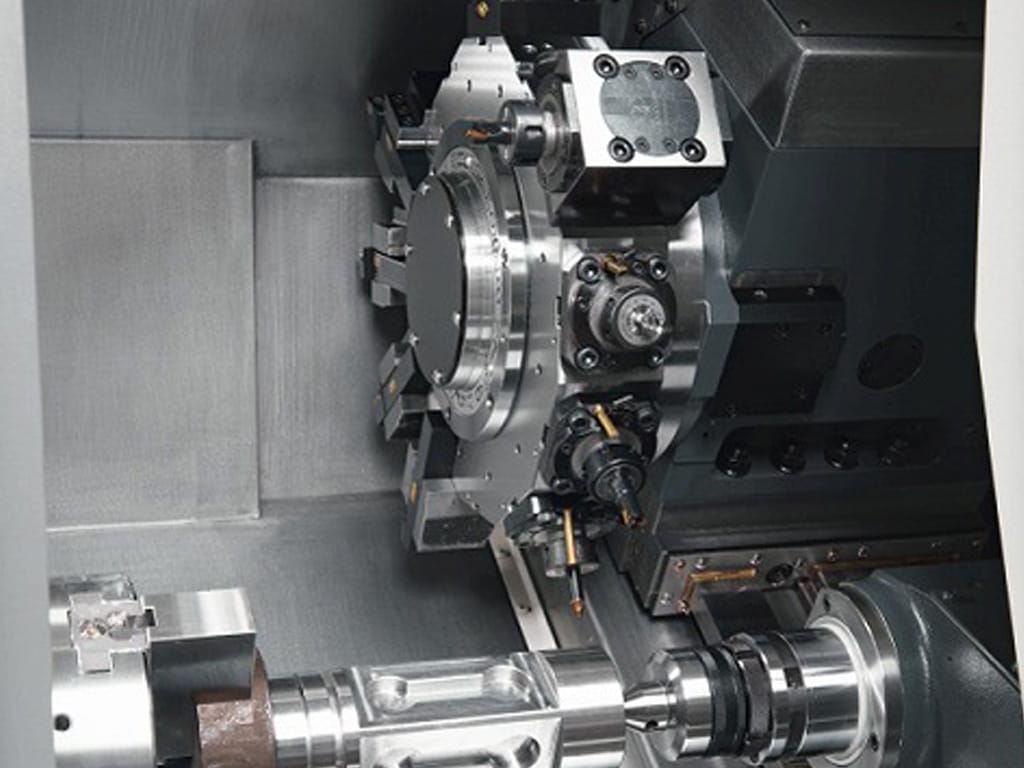

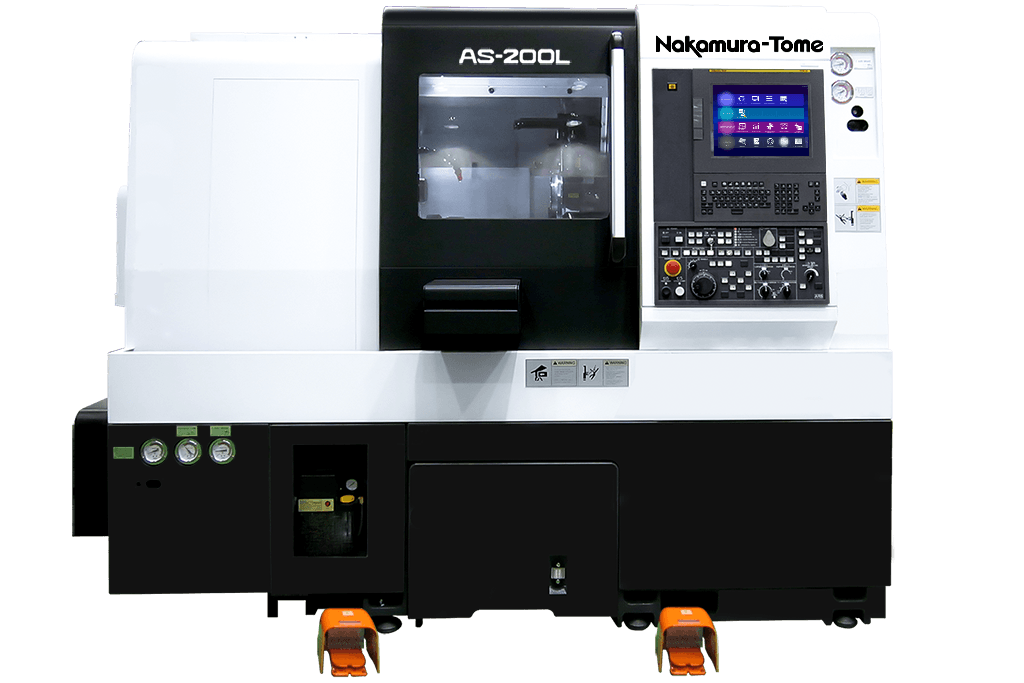

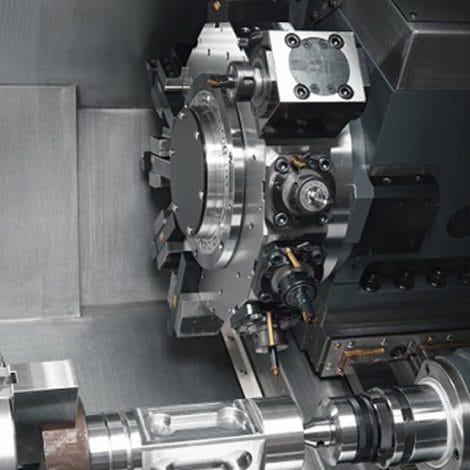

The Nakamura-Tome AS-200L is a compact turning centre designed for manufacturers requiring increased machining capacity while maintaining flexibility and efficiency. Featuring standard Y-axis capability, integrated milling functions and an extended turning length compared to the AS-200, the AS-200L enables complex components to be completed in fewer setups. With high-speed indexing, advanced control technology and a rigid machine structure, the AS-200L delivers exceptional precision, reliability and productivity across a wide range of machining applications.
| φ65mm | φ71mm | φ42mm(op.) | |
|---|---|---|---|
| Max. Turning Diameter(12st) | 290mm | ||
| Max. Turning Diameter(op.15st) | 280mm | ||
| Max. Turning Length | 570mm | ||
| Distance Between Centers(op.) | 760mm | ||
| L Bar Capacity | 65mm | 71mm | – |
| R Bar Capacity | – | – | 42mm(op.) |
| L Chuck Size | 8″ | – | |
| R Chuck Size | – | 6″(op.) | |
| L Spindle Speed | 4,500mm-1 | – | |
| R Spindle Speed | – | 6,000mm-1(op.) | |
| L Spindle Drive Motor | 15/11kW | – | |
| R Spindle Drive Motor | – | 7.5/5.5kW(op.) | |
| Floor space | height:1,935mm | ||
| width:2,716mm(Standard, Tail) / width:3,160mm(MATA-BEI) | |||
| depth:1,805mm | |||

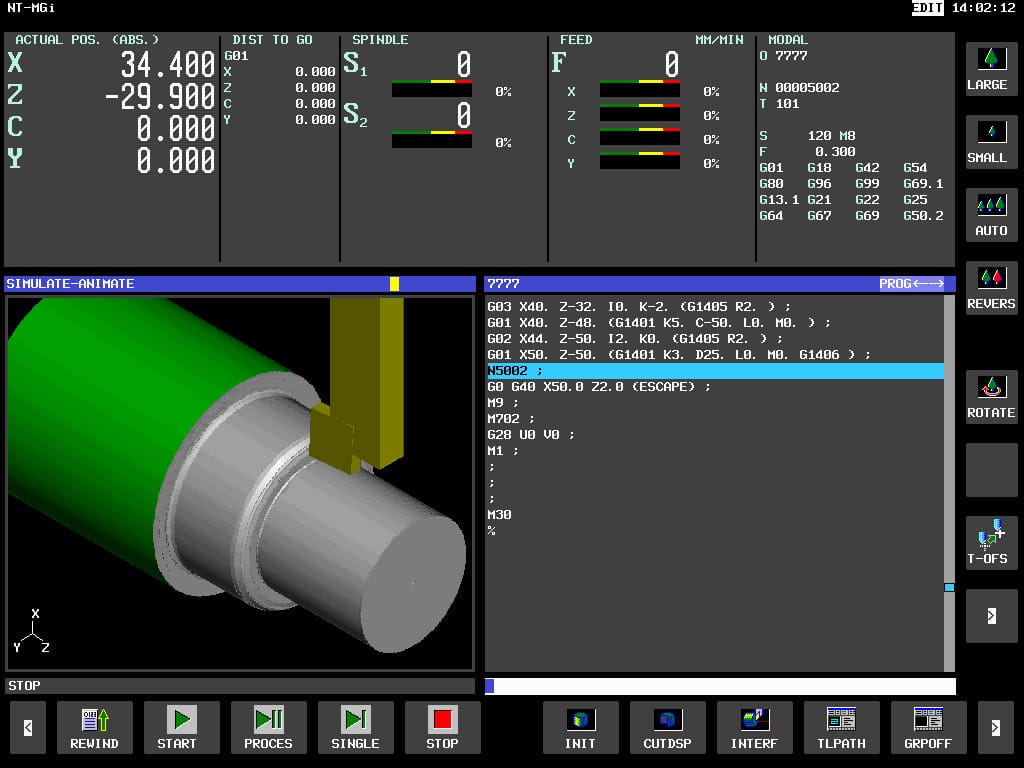

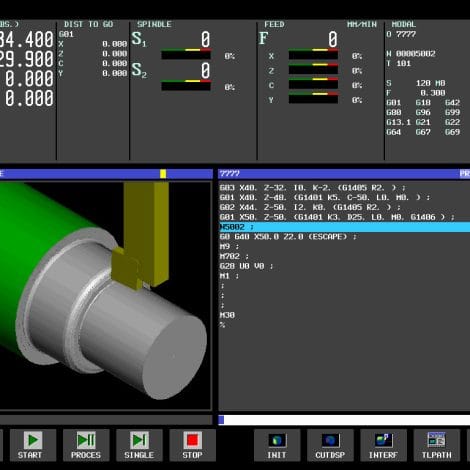

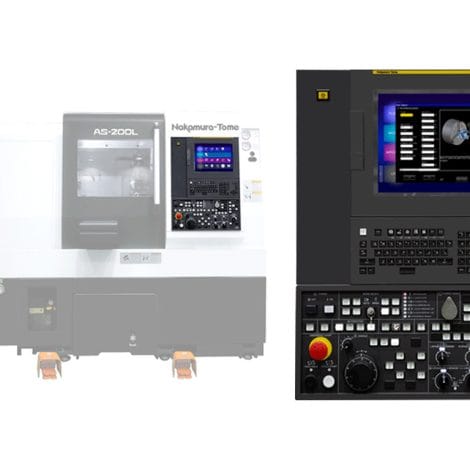

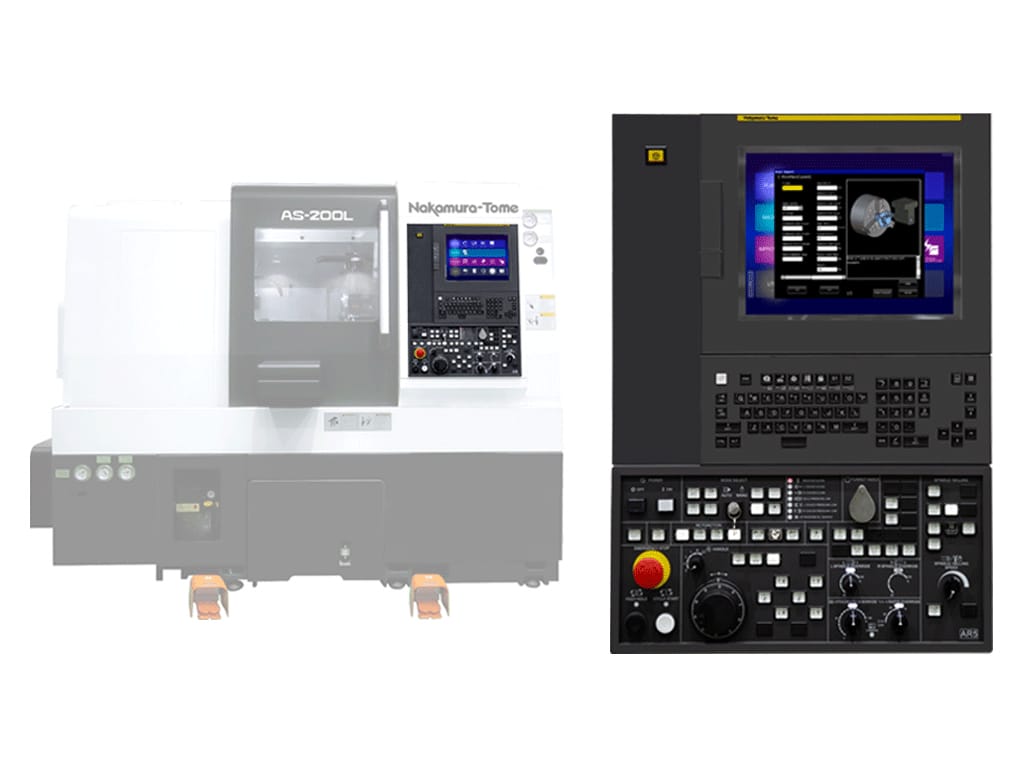

Equipped with the Fanuc 0i-TF Plus (featuring 15-inch widescreen touch panels) or proprietary custom-integrated NT Smart X / 31i-B5 setups that merge Fanuc reliability with Nakamura’s world-class, user-friendly software.
